Introduction

Congratulations on your purchase of the Sony A6500. The latest and greatest mirrorless APS-C camera from Sony features many new enhancements like a 5 axis stabilized sensor, a touch screen and an extended buffer for continuous shooting. If you’re looking for an advanced guide

If you’re looking for an advanced guide for the Sony A6500 with tips and tricks to improve your understanding of this little wonder, you’ve come to the right place. I believe that the best way to learn all the features and functions is to have a good look at the menu system and gradually try to understand how everything works. This might take some time if you’ve never owned a Sony mirrorless, and even if you have, the menus have totally changed it this product. You can bookmark this page and simply refer back to it or continue reading whenever you feel like it.

If you are looking for an an A6000,  A6100A6300,  A6400 or A6600 guide, guide, you can find them by clicking on the camera name.

So take your ILCE-A6500, press the Menu button and follow along.

Sony A6500 Menu run-through

MENU – Red Camera Icon – page 1

red camera icon page 1

Quality and image size settings page 1

Quality:

Do you edit your pictures on your desktop? If so, set to RAW or RAW+jpeg. A RAW file saves all information the Sony A6500 pixels register during shooting and will make for better quality images if you want to edit in something like Adobe Lightroom.

A jpeg is a compressed image (available in FINE (larger) and STANDARD (smaller, less quality) which takes up less space on your SD card but is less suited for editing afterward. Jpeg images will also have in-camera noise reduction applied, something you might or might not want to take care of yourself later, depending on your style and preference.

Image size:

Large, medium or small is selectable (when you set Quality to jpeg). Set it to large for optimal quality, if SD card space is an issue, you can set it to Small.

Knowing the pixel size can tell you how large you can print your images without quality degradation. There are techniques nowadays to print larger, but this information might be interesting to some.

When Aspect Ratio is set to 3:2:

  • L: 24M 6000×4000 pixels
  • M: 12M 4240×2832 pixels
  • S: 6M 3008×2000 pixels

When Aspect Ratio is set to 16:9:

  • L: 20M 6000×3376 pixels
  • M: 10M 4240×2400 pixels
  • S:5.1M 3008×1688 pixels
Aspect ratio:

You can choose 3:2 (which uses the full sensor surface) or 16:9 (crop but a more broad view). Leave as is at 3:2, you can always crop your pictures later.

Panorama Size:

(when in panorama shooting mode) Size is selectable between standard and wide. Wide means your picture will cover a larger area. Set it to standard, having to scan an even broader area when making panoramas will take some experience with the Sony A6500 to do efficiently.

Panorama direction

A panorama picture (only available in jpeg) is a composite of several images stitched together. When in this mode, you’ll see an arrow that guides you in what direction and speed you should pan the Sony A6500 to take the sequential images that will be stitched together. You can choose the path in this menu (either, up, down, left or right).

Long Exposure NR

Set if you want the processing engine to apply noise reduction for images captured with a long exposure time. Leave it ON as there is no way of duplicating this process in post production, except to take a black frame of the same length in the same atmospheric conditions.

(MENU – Red Camera Icon – page 2)

red camera icon page 2

Quality settings page 1

High ISO NR

Here you can select the amount of noise reduction applied to images with high ISO settings (when quality is set to jpeg). As Sony has rather aggressive noise reduction, I would change it to Low. (if not, you run the risk of getting paint-like, smeared images at higher ISO values).

Color Space

You can choose between Standard and Adobe (extended color range) RGB. This is only important if you shoot JPEG and not RAW. Adobe RGB would be preferable if you print many images because of the extended color range.

Lens Comp

The Sony A6500 allows you to select whether you would like to apply various lens compensations (shading, chromatic aberration, distortion) even when shooting in RAW. I leave this ON, but you might get a conflict with RAW files and using a lens profile in programs like Lightroom where you’ll see a reverse vignette for instance.

MENU –Red Camera Icon – page 3

Shoot and Drive mode settings page 1red camera icon page 3

Shoot Mode and Drive settings page 1

Auto Mode

Switch the auto mode between Intelligent Auto and Superior Auto.

Intelligent Auto:

This mode automatically detects the type of scene you’re shooting and adjusts the scene automatically. You’ll see the icon for the recognized scene appears on the top right hand of the screen.

These scenes are the same ones which can be selected individually in SCENE mode.

The Sony A6500 will also use the most appropriate FOCUS AREA, and ISO value (the ISO range cannot be changed in iAuto though).

Drive Mode (single shooting, continuous shooting Lo-Mid-Hi), Self-timer and Self-timer cont (multiple images with the self-timer) can be changed by using the Fn button.

Works for both RAW and JPEG shooting.

Disadvantage: ISO range is fixed to 50-6400 (you can’t change the range).

Superior Auto:

Superior Auto is similar to iAuto, as it also detects scenes automatically, except it uses more complex processing.

This includes composite layering (layering different shots on top of each other for HDR style pictures) and automatically choosing what it thinks is the best image.

You can either choose whether you want the Sony A6500 to save all images captured or just the composite image, by selecting S. Auto Img. Extract in the MENU system.

Disadvantage: ISO range is (like in iAuto) fixed and only useable for jpeg shooting.

Scene Selection

This is more easily controlled via the right thumb wheel when you’re in SCN mode, but you can also select the presets for different scenes (like sports or portrait) from here.

S Auto Img Extract

When in Superior Auto, the Sony A6500 takes multiple images and combines them into one (jpeg only). You can either save all images captured (OFF) or only the combined image (ON). Turn it OFF; I’ve tried this functionality, and the combined image feature does not work well.

Drive Mode

Do you want to take a single picture when you press the shutter button or multiple images? You can select this here, as well as self-timer functions and bracketing.

Bracketing is taking a series of pictures, each with different settings, useful for combining your images with various exposures for HDR effects in software afterwards, to name just one example.

You can also press the dedicated drive mode button to get to these settings.

  • Single Shooting: Normal shooting mode.
  • Cont. Shooting: Shoots images continuously while you press and hold down the shutter button.
  • Self-timer: Shoots an image using the self-timer after a designated number of seconds have elapsed since the shutter button was pressed.
  • Self-timer(Cont): Shoots a designated number of images using the self-timer after a designated number of seconds have elapsed since the shutter button was pressed.
  • Cont. Bracket: Shoots images while holding the shutter button down, each with different degrees of brightness.
  • Single Bracket: Shoots a specified number of images, one by one, each with a different degree of brightness.
  • WB bracket: Shoots a total of three images, each with different color tones according to the selected settings for white balance, color temperature, and color filter.
  • DRO Bracket: Shoots a total of three images, each at a different degree of D-Range Optimizer.
Bracket Settings

You can set the self-timer in bracket shooting mode, and the shooting order for exposure bracketing and white balance bracketing.

  • Selftimer during Brkt: Sets whether to use the self-timer during bracket shooting. Also sets the number of seconds until the shutter is released if using the self-timer. (OFF/2 Sec/5 Sec/10 Sec)
  • Bracket order: Sets the order of exposure bracketing and white balance bracketing.
Recall (Camera Settings1/Camera Settings2)

This functionality allows you to shoot an image after recalling often-used modes or camera settings registered with the Mode Dial memory positions in advance. It is now also possible to save your camera settings to a memory card and recall them later (or on a different camera). This is done by using the ‘select Rec. media’ function inside this menu.

MENU – Red Camera Icon – page 4

red camera icon page 4

Shoot Mode and Drive settings page 2

Memory (Camera Settings1/Camera Settings2)

This setting allows you to register up to 3 often-used modes or product settings to the product and up to 4 (M1 through M4) to the memory card. You can recall the settings using just the mode dial. You can register various functions for shooting. The items that you can register are displayed on the menu of the Sony A6500. Aperture and Shutter speed are always available. You’ll need to select your SD card first using the ‘select Rec. media’ function inside the prior menu.

MENU –Red Camera Icon – page 5

red camera icon page 5

autofocus settings page 1

Focus Mode:

Here, you can select how the autofocus engine will behave when you half-press the shutter button. Novice users should set into AF-A. This functionality is partly dependent on what focus area you select (see next)

  • AF-S: With a half-press of the shutter button, the Sony A6500 will focus only once. Suitable for capturing stills.
  • AF-A: AF Automatic intelligently switches between S and C, depending on whether the camera detects movement or not. This is the standard setting and the easiest to use.
  • AF-C: The Sony A6500 will continuously focus on any movement when you half-press the shutter button.
  • DMF: The Sony A6500 focuses on your subject and allows you to fine-tune your focus area further using the manual focus ring on the lens.
  • MF: No autofocus is used, and you focus manually using the focus ring on the lens.

You can see a focus indicator on screen or EVF. When it is lit, the subject is in Focus and focus is locked.

Tip: if autofocus doesn’t seem to be working, check the lens barrel to see if the AF/MF slider is set to AF. It’s also possible to assign a button for what is called ‘Focus Hold’. With Focus Hold, you can freeze your focus point when you press this button. This is often used by photographers to allow for a greater flexibility in composition.

Another important fact is that in Movie mode, only Continuous AF and MF are available.

Priority Set in AF-S:

Sets whether to release the shutter even if the subject is not in focus when Focus Mode is set to Single-shot AF, DMF or Automatic AF and the subject is still.

Options are:

  • AF: Prioritizes focusing. The shutter will not be released until the subject is in focus.
  • Release: Prioritizes the shutter’s release. The shutter will be released even if the subject is out of focus.
Priority Set in AF-C:

Sets whether to release the shutter even if the subject is not in focus when the continuous AF is activated and the subject is in motion.

Choose between:

  • AF: Prioritizes focusing. The shutter will not be released until the subject is in focus.
  • Release: Prioritizes the shutter’s release. The shutter will be released even if the subject is out of focus.
  • Balanced Emphasis: Shoots with a balanced emphasis on both focusing and shutter release.
Focus area

The Sony A6500 has a dual phase/contrast on-sensor autofocus system This makes it one of the fastest and most reliable AF systems in the world. You might think it is best to leave it on the wide factory setting (as this uses all AF points), but for certain scenes, it is often better to use a zone or flexible spot to get it to focus on what you want.

  • Wide: Wide focus area uses all focus points on the sensor. Ideal for action scenes where there is a lot of movement going on in your frame.
  • Zone: Select a zone on the monitor on which to focus, and the product will automatically select a focus area.
  • Center: Focusses on whatever is centered in your images. A fail-proof way of getting the Sony A6500 to focus on what you want. If you have any problems using the autofocus and are in a situation where you don’t want to miss any shots, revert to Center and just make sure you have your subject centered.
  • Flexible spot: Allows you to move the focusing frame to a desired point on the touch screen and focus on an extremely small subject in a narrow area. If you want to use this focus area, set it to medium or large, as the Sony A6500 will struggle to find focus when setting to small (except perhaps for close-up portraits where you’d want to focus on the iris of the eye)
  • Expand Flexible spot: If the camera can’t focus on a single selected point, it uses focus points around the flexible spot as a secondary priority area for focusing.
  • Lock-on AF: When the shutter button is pressed and held halfway down, the Sony A6500 tracks the subject within the selected autofocus area. This setting is available only when the focus mode is set to Continuous AF. Point the cursor to ‘Lock-on AF’ on the Focus Area setting screen, and then adjust the desired area to start tracking by pressing the multi-selector left/right. You can also move the tracking start area to the desired point by designating the area as a flexible spot or expand flexible spot.

Tip: You can move the focus area in Flexible Spot, Expand Flexible Spot or Zone by touching the screen.

AF illuminator

The AF illuminator is a little red light allowing the Sony A6500 to focus more easily when the shutter button is pressed halfway. It automatically is switched off when you fully press the shutter. Leave it on except if you are using an underwater housing.

Center Lock-on AF

This is a very powerful autofocus feature. When turned ON, it allows you to track a subject. In the iAuto mode, you can access this feature (when turned ON and the Sony A6500 is set to AF) by pressing the Center button of the multi-controller. You’ll see a square on your screen, then center your desired tracking subject and the camera will continue to track it, even when it exits your frame and reappears.

MENU – Camera Settings – page 6

red camera icon page 6

autofocus settings page 2

AF system:

Here you can select the focus detection system (Phase Detection AF/Contrast AF) when you attach an Amount lens using an LA-EA1/LA-EA3 Mount Adaptor.

  • Phase Detection AF: Focuses with Phase Detection AF. The focusing speed is very fast.
  • Contrast AF: Always focuses with Contrast AF. The focusing speed is slower but more precise. Use when you cannot focus with Phase Detection AF.
AF with shutter

Selects whether to focus automatically when you press the shutter button halfway down. Leave ON.

Pre-AF

Select if the Sony A6500 will automatically adjust focus before you press the shutter button halfway down.

Eye-Start AF:

This configuration starts AF once the EVF sensor has detected your eye near the viewfinder. I’ve never used it personally, but some people might find this setting interesting as it can prolong battery life.

AF Area Auto Clear:

Sets whether the focus area should be displayed all the time or should disappear automatically shortly after focus is achieved.

Disp. cont. AF Area

You can set whether or not to display the focus area that is in focus when[Focus Area] is set to Wide or Zone and Focus Mode is set to Continuous AF.

MENU – Red Camera Icon – page 7

red camera icon page 7

autofocus settings page 3

AF Micro Adj.:

Allows you to adjust and register autofocused positions for each lens when using an A-mount lens with the Mount Adaptor LA-EA2 or LA-EA4. In general use, you do not need to adjust the autofocused position using this function. Use this function only when adjustments are needed for certain focus areas or focal lengths. Use this function only when adjustments are needed for certain focal lengths.

MENU –Red Camera Icon – page 8

red camera icon page 8

Exposure settings page 1

Exposure Comp

(Also available in the Quick Menu, accessed by pressing the FN button):

If you find that your image is overexposed (for instance when you are shooting at large apertures for a shallow depth-of-field in bright daylight), you can tweak the exposure compensation here in a plus or minus 5 (exact EV dependent on next step) range.

ISO

You can select at which ISO value you’d like to capture your image or change the Auto ISO range.

I have this range set between 100-3200 as this range is virtually noise free, and I don’t like the ISO performance above 3200. In a pinch, when you’re getting blurred images due to a too long shutter speed at low ISO,  you can experiment with higher ISO settings. It’s better to get a sharp but noisy image than a blurred one….

Iso Auto Min SS.

This is a useful and exciting setting. If you select ISO AUTO you are in  P (Program Auto) or A (Aperture Priority) mode; you can set the shutter speed at which the ISO sensitivity starts changing. The difference in shutter speed at which ISO sensitivity starts to change between [Faster], [Fast], [Standard], [Slow], and [Slower] is 1 EV.

You have three possibilities here:

  • FASTER (Faster)/FAST (Fast): The ISO sensitivity will start to change at shutter speeds faster than the Standard (normal). This will help you prevent getting blurred images when shooting action or sports. This at the cost of raising the ISO and noise in your images. Remember this is linked to your Auto ISO settings, so it won’t go any higher than your upper limit, even if the Sony A6500 is capable of doing so.
  • STD (Standard): The camera automatically sets the shutter speed based on the focal length of the lens.
  • SLOW (Slow)/SLOWER (Slower): The ISO sensitivity will start to change at shutter speeds slower than the Standard setting. This enables you to shoot images with less noise. Never to be used if you want to shoot action, but can be useful if you are a landscape or architecture photographer who likes to walk around without a tripod yet takes some time to frame and shoot images carefully.
  • 1/8000 ― 30″: The ISO sensitivity starts to change at the shutter speed you have set.

Metering Mode

Metering mode refers to the way the Sony A6500 reads the light and sets the exposure.

In multi, it considers the whole frame and sets exposure according to internal algorithms programmed in camera.

In spot or center, the Sony A6500 only considers what is in that spot or the center (per example, if your subject is completely black, the camera will try to compensate by overexposing the image).

  • Multi: Measures light on each area after dividing the total area into multiple areas and determines the proper exposure of the entire screen (Multi-pattern metering).
  • Center: Measures the average brightness of the entire screen, while emphasizing the central area of the screen (Center-weighted metering).
  • Spot: Measures only the central area (Spot metering). This mode is suitable for measuring light on a specified part of the entire screen. The size of the metering circle can be selected from [Spot: Standard] and [Spot: Large]. The position of the metering circle depends on the setting for [Spot Metering Point].
  • Entire Screen Avg.: Measures the average brightness of the entire screen. The exposure will be stable even if the composition or the position of the subject changes.
  • Highlight: Measures the brightness while emphasizing the highlighted area on the screen. This mode is suitable for shooting the subject while avoiding overexposure.

Tip: When [Spot] is selected and [Focus Area] is set to either [Flexible Spot] or [Expand Flexible Spot] while [Spot Metering Point] is set to [Focus Point Link], the spot metering point can be coordinated with the focus area.

Spot Metering Point

Sets whether to coordinate the spot metering position with the focus area when Focus Area is set to Flexible Spot or Expand Flexible Spot.

  • Center: The spot metering position does not coordinate with the focus area, but always meters brightness at the center.
  • Focus Point Link: The spot metering position coordinates with the focus area.

Exposure step

You can set the setting range for the shutter speed, aperture, and exposure compensation values either .3 or .5 EV steps.

MENU – Red Camera Icon – page 9

red camera icon page 9

Exposure settings page 2

AEL w shutter

Sets whether to fix the exposure when you press the shutter button halfway down. Select Off to adjust the focus and the exposure separately.

  • Auto (default setting): Fixes the exposure after adjusting the focus automatically when you press the shutter button halfway down when Focus Mode is set to Single-shot AF.
  • On: Fixes the exposure when you press the shutter button halfway down.
  • Off: Does not adjust the exposure when you press the shutter button halfway down. Use this mode when you want to change focus and exposure separately.

The Sony A6500 keeps adjusting the exposure while shooting in Cont. Shooting or Spd Priority Cont. mode. Operation using the AEL button is prioritized over the AEL w/ shutter settings.

Exposure Std. Adjust

Adjusts this camera’s standard for the correct exposure value for each metering mode. You can set a value from -1 EV to +1 EV in 1/6 EV increments.

MENU – Red Camera Icon – page 10

red camera icon page 10

flash settings

Flash Mode

If you’re interested in flash photography, you’ll need to purchase a hot shoe flash. I would suggest a Godox, as these can both use HSS and TTL, and are quite cheap. (Also available in the Quick Menu accessed by pressing the FN button

If you’d like to get more into flash photography, you should read up on the different possibilities and what their effect would be on your images. This is a basic explanation of what the different modes do:

  • fill flash: A fill flash is useful even in daylight to fill the shadows with light (like a person in the shade).
  • Slow sync: Tells the camera to use a longer shutter speed along with a flash, and thus is better for night shots. In manual and shutter priority modes, there is no difference in flash power. But when using aperture priority, program, or auto, choosing slow sync tells the Sony A6500 to use a longer shutter speed than it would ordinarily pick.What the slow sync flash mode does is a first fire the flash for the subject exposure, then allow for a longer shutter speed that will allow for more ambient light to be captured by the sensor.
  • Rear Sync: Capturing an image involves two shutter actions: one when the capture starts and on when it stops. Rear Sync tells the flash to fire right before the shutter closes. Moving objects will show a streak where they came from and a sharp image where they were at the end of the exposure. This conveys a sense of speed with moving objects. Rear Sync is a creative technique, if you’d like to know more about this type of photography, I’d suggest doing a Google search on ‘Rear Sync Flash Photography.’
  • Wireless: Select wireless is if want to use the in-camera flash to trigger an external flash like the Sony HVL-43M (with TTL!). Using an external flash is helpful when shooting weddings and dimly-lit subject matter, You can use your main flash to light the subject, and your external flash to light the background.
Flash comp or Flash compensation:

Especially when using Slow Sync or Rear Sync Flash modes, you might have to lower the power of the Flash to get a decently exposed image. (Also available in the Quick Menu accessed by pressing the FN button).

Exp comp set

Selects if the Exposure compensation function (+-5 in 0.5EV or 0.3EV steps) also reduces flash power or not. Leave it to Ambient And Flash, unless if you want to use HSS sync with flashes, then it is handy to be able to control exposure and flash output separately.

Red Eye Reduction:

This anti-Red Eye setting quickly fires the flash before your image capture starts, reducing the red-eye effect often seen when using a flash.

MENU – Red Camera Icon – page 11

red camera icon page 11

Color, White Balance, and Image processing settings page 1

White Balance

You can either set the white balance to Auto, where the camera tries to guess what the neutral grey value is, or use one of the preset white balance settings for different lighting conditions or customize the white balance according to your preference or using a grey card.

Priority Set in AWB

Selects which tone to prioritize when shooting under lighting conditions such as incandescent light when White Balance is set to Auto.

  • Standard: Shoots with standard auto white balance. The camera automatically adjusts the color tones.
  • Ambience: Prioritizes the color tone of the light source. This is suitable when you want to produce a warm atmosphere.
  • White: Prioritizes a reproduction of white color when the color temperature of the light source is low.
DRO/Auto HDR
DRO:

This stands for Dynamic range optimise and analyses the contrast of your scene in real-time. It produces an image with optimal brightness and recovered shadow detail. You can use this function even while the subject is moving or during the continuous shooting.

Auto HDR:

(not available for RAW captures) this feature Shoots three images with different exposures and then overlays the bright area of the underexposed image and the dark area of the overexposed image to create a picture with an extended range from highlight to shadow.

The highlight detail in auto HDR is better than that in DRO and with reduced noise. The shutter is released three times, so using this function for moving subjects is not recommended.

Creative Style

The Sony creative styles can best be explained as being film emulations (the same way as do some other camera manufacturers implements this). There is a range of styles available from vivid colour to black and white. If you’re shooting RAW, these styles are embedded, but can always be zeroed after importing them to you RAW editor of choice. Jpegs are saved with this styling applied. It is always useful to try some of these, and can be a real boost for your creativity, as you will notice that you make different images in say black-and-white as opposed to colour.

  • Standard: For shooting various scenes with rich gradation and beautiful colors.
  • Vivid: The saturation and contrast are heightened for shooting striking images of colorful scenes and subjects such as flowers, spring greenery, blue sky, or ocean views.
  • Neutral: The saturation and sharpness are lowered for shooting images in subdued tones. This is also suitable for capturing image material to be modified with a computer.
  • Clear: For shooting images in clear tones with limpid colors in highlight, suitable for capturing radiant light.
  • Deep: For shooting images with deep and dense colors, suitable for capturing the solid presence of the subject.
  • Light: For shooting images with bright and simple colors, suitable for capturing a refreshingly light ambience.
  • Portrait: For capturing skin in a soft tone, ideally suited for shooting portraits.
  • Landscape: The saturation, contrast, and sharpness are heightened for shooting vivid and crisp scenery. Distant landscapes also stand out more. Sunset: For shooting the beautiful red of the setting sun.
  • Night Scene: The contrast is lowered for reproducing night scenes.
  • Autumn leaves: For shooting autumn scenes, vividly highlighting the reds and yellows of changing leaves.
  • Black & White: For shooting images in black and white monotone.
  • Sepia: For shooting images in sepia monotone.

You can edit these different styles and save your own creative style if you want.

This functionality can be changed:

  • Contrast: The higher the value selected, the more the difference of light and shadow is accentuated, and the bigger the effect on the image.
  • Saturation: The higher the value selected, the more vivid the color. When a lower value is selected, the color of the image is restrained and subdued.
  • Sharpness: Adjusts the sharpness. The higher the value selected, the more the contours are accentuated, and the lower the value selected, the more the contours are softened.
Picture Effect

Think of this menu as an Instagram app right in your Sony A6500, with all kinds of retro filters and effects. These are only available when quality is set to Jpeg (Not in RAW).

  • Off: Disables the [Picture Effect] function.
  • Toy Camera: Creates a soft image with shaded corners and reduced sharpness.
  • Pop Color: Creates a vivid look by emphasizing color tones.
  • Posterization: Creates a high contrast, abstract look by heavily emphasizing primary colors, or in black and white.
  • Retro Photo: Creates the look of an aged photo with sepia color tones and faded contrast.
  • Soft High-key: Creates an image with the indicated atmosphere: bright, transparent, ethereal, tender, soft.
  • Partial Color: Creates an image which retains a specific color, but converts others to black and white.
  • High Contrast Mono.: Creates a high-contrast image in black and white.
  • Rich-tone Mono.: Creates an image in black and white with rich gradation and reproduction of details.
Picture Profile

Allows you to change the settings for the color, gradation, etc.

The basic contrast and coloring are defined by the combination of [Gamma] (gamma curve) and [Color Mode] (color characteristics) settings.

Gamma:
    • Movie: Standard gamma curve for video.
    • Still: Standard gamma curve for still images.
    • Cine1: Softens the contrast in darker image areas and emphasizes gradation changes in lighter image areas, producing a subdued tone overall (equivalent to HG4609G33) Gamma curve that obtains a dynamic range of 460% when the exposure is adjusted to 33% video output with 18% reflectance gray. The maximum value of video output is 109%. Images shot with this gamma can be used without grading, but since the images have smooth gradation characteristics, this can be used to grade and finalize the viewed image in the post-production process.
    • Cine2: Similar results to [Cine1] but optimized for editing with up to 100% video signal (equivalent to HG4600G30)
      Gamma curve that obtains a dynamic range of 460% when the exposure is adjusted to 30% video output with 18% reflectance gray. The maximum value of video output is 100%.
    • Cine3: Stronger contrast between dark and light image areas and greater emphasis on black gradation changes (compared to [Cine1] and [Cine2])
    • Cine4: Stronger contrast than [Cine3] in darker image areas.
    • ITU709 ITU709 gamma curve (low-light gain of 4.5).
    • ITU709: (800%) Gamma curve for checking scenes recorded using [S-Log2] or [S-Log3].
    • S-Log2 [S-Log2] gamma curve. This setting is selected when some grading work will be performed after recording. The exposure is set so that 18% reflectance gray video is output as 32%. Under these conditions, a dynamic range of 1,300% is obtained with 90% reflectance white. The maximum value of video output is 106%.
    • S-Log3: [S-Log3] gamma curve with characteristics closer to those of film. This setting is selected when some grading work will be performed after recording. It allows for better reproduction of gradations in shadows and the mid-tone range than S-Log2. The exposure is set so that 18% reflectance gray video is output as 41%. Under these conditions, a dynamic range of 1,300% is obtained with 90% reflectance white. As a characteristic of S-Log3, the dynamic range can be extended above 1,300%. However, Picture Profile is set to a dynamic range of 1,300% in order to maintain a balance with camera performance. Under these conditions, the maximum value of video output is 94%.
Color Mode:
    • Movie Color tones for [Movie] gamma curve (standard color reproduction for movies when Picture Profile is not used)
    • Still Color tones for [Still] gamma curve (standard color reproduction for still images when Picture Profile is not used)
    • Cinema Color tones for [Cine1] and [Cine2] gamma curve
    • Pro Color tones similar to standard Sony broadcast camera image quality (used in combination with [ITU709] gamma curve)
    • ITU709 Matrix ITU709 color tones (used in combination with [ITU709] gamma curve)
    • Black & White Sets the saturation to 0 for recording in black and white
      S-Gamut Setting based on the assumption that some grading work will be performed after recording. Used when [Gamma] is set to [S-Log2].
    • S-Gamut3.Cine Setting based on the assumption that some grading work will be performed after recording. Used when [Gamma] is set to [S-Log3].
    • This setting is easier to use than [S-Gamut3], because it limits the color space to a more practical range than that of [S-Gamut3]. It is recommended in cases where [S-Gamut3], a wide color space, is not required.
    • S-Gammut3 Setting based on the assumption that some grading work will be performed after recording. Used when [Gamma] is set to [S-Log3].
      This setting has a wider color space than that of [S-Gamut3.Cine]. It is suited for converting images to a format with a wide color space like BT.2020.
      Depending on the type of camera, the entire [S-Gamut3] color space may not be supported.
Black Level:

This function adjusts the black level of the image -15 to +15.  As an image effect, you can emphasize the color black to create an image that gives a powerful impression, or you can weaken black to give the image a soft impression.

Shifting Black Level in the minus direction emphasizes the black color in the image, while changing the level in the plus direction weakens the black color.

If you want to simulate an old film, or capture winter morning fog, the black level value should be increased. If you decrease the value, gradations in dark areas will be smoothed out, making the areas appear in crisp black. When using multiple fixed cameras to shoot the same subject from different angles, the balance between subject and background often varies. This balance variation may cause the black color in the subject to appear different when cameras are switched. However, this is an optical illusion. If it occurs, you can correct it by adjusting Black Level to make the black color look the same.

When using multiple fixed cameras to shoot the same subject from different angles, the balance between subject and background often varies.

This balance variation may cause the black color in the subject to appear different when cameras are switched. However, this is an optical illusion. If it occurs, you can correct it by adjusting Black Level to make the black color look the same.

Black Gamma:

This function lets you alter the shape of the selected gamma curve and adjust gradations in dark image areas. Range available between Wide, Middle or Narrow. Leven between -7 and +7.

[Range] controls the luminance range that Black Gamma influences. The [Narrow] setting keeps the range close to black, while the [Wide] setting extends the range to gray. [Range] should be set narrower when you want to control the quality of dark areas. If you want to adjust the overall image tone, [Range] should be set wider. At first, it may be a good idea to start from the [Narrow] setting.

Increasing the [Level] value brightens the image, whereas decreasing the value makes the image darker. For example, if you set [Range] to [Narrow] and decrease the [Level] value, you can create an image with dark areas that are similar to the ones seen in films. Unlike Black Level, Black Gamma Level adjusts luminance subtly.

Knee:

This function sets the knee point and slope for video signal compression to prevent over-exposure by limiting signals in high-intensity areas of the subject to the dynamic range of your Sony A6500.

First, select whether to set the knee point and slope automatically or manually in [Mode], and then adjust each setting.

  • Knee > Mode: Auto / Manual
  • Knee > Auto Set > Max Point: 90% to 100%
  • Knee > Auto Set > Sensitivity: High / Mid / Low
  • Knee > Manual Set > Point: 75% to 105%
  • Knee > Manual Set > Slope: –5 to +5
Mode:
Auto:
Automatically adjusts the knee based on what is selected in the following settings (when [Movie] or [ITU709] is selected in [Gamma]).

  • [Max Point] determines the maximum knee point level (white level). The knee slope is automatically adjusted according to the Max Point setting. The standard is to keep it at 100%. A lower setting will turn white grayish, while a higher setting will discard gradations in high luminance areas.
  • [Sensitivity] changes the luminance level at which the knee’s automatic adjustment starts. When set to [High], the knee’s automatic adjustment starts at lower input signal levels than normal. When set to [Low], the knee’s automatic adjustment starts at higher input signal levels than normal.
  • When a parameter other than [Movie] or [ITU709] is selected in [Gamma], the gamma curve will not exceed the White clip point and over-exposure rarely occurs. When [Mode] is set to [Auto] with these settings, the Knee function is disabled. If you want to enable the Knee function, set [Mode] to [Manual].
Manual:
Sticks to settings based on the following selections.

  • [Point] sets the position of the knee point output level.
  • [Slope] determines the inclination of the knee slope.
    A negative slope setting results in a gentler knee slope angle. This expands the dynamic range, but reduces the ability to produce rich gradations. A positive slope setting makes the knee slope inclination steeper. This shrinks the dynamic range, but bolsters the ability to express gradations. When [Slope] is set to +5, the Knee function is disabled.
  • Set [Point] and [Slope] in [Manual Set] in combination. If you select a higher setting for [Point] and a gentler setting for [Slope], you can obtain video-like sharp highlight effects. If softer film-like highlight effects are desired, select a lower setting for [Point] and a steeper setting for [Slope]. In practical terms, move [Point] and [Slope] up and down in opposite directions while checking the gradations in high luminance areas until you find the ideal settings.
Saturation

A positive value results in more vivid colors, while a negative value presents faded colors. Saturation must be adjusted in tandem with contrast. Bright and vivid settings produce video-like images, while dark and vivid settings result in film-like images. The combination of bright and light creates pastel tones, whereas dark and light settings create artistic finishes.

Color Phase

As you rotate the color wheel to the left (decreasing the set value) or to the right (increasing the set value), the colors shift along the spectrum from red to yellow, green, cyan, blue, magenta and red. Because this affects all colors, it is difficult to make specific adjustments exactly as intended. Use this function when matching coloring closely between different cameras.

Color Depth

This function adjusts the luminance for each color phase. The luminance changes more drastically when the selected color is richer (higher saturation). It does not change much at all when the color is achromatic.

A higher set value lowers luminance while deepening the color. A lower set value increases luminance, making the color look paler.
This setting does not only enhance the apparent vividness of colors, but also can express deep, dark colors.
Because each of the 6 colors — R (Red), G (Green), B (Blue), C (Cyan), M (Magenta), Y (Yellow) — can be adjusted individually, you can apply this function to just the colors you want to emphasize.

Emphasizing image edges (Detail)

This function adjusts how much detail is applied to the subject’s image edges.

Because settings other than [Level] are quite complex, we recommend you start by adjusting only the [Level] setting first.

Level

This function determines the strength of detail image processing to be applied.

  • If you apply too much detail, the subject’s original atmosphere may be undermined, as its translucence may be lost or it may be given an unnatural luster. Excessive detail when shooting shiny leaves, for instance, may result in the leaves looking as if they are made of plastic. It is also advisable to apply detail only modestly when shooting paintings.
  • Because Detail makes image edges wider, the original texture of a subject consisting of very fine lines may be lost if too much detail processing is applied. (Example: thin lace curtains)
  • Also, be aware that Detail may fatten up the edges of noise particles that appear under a high gain setting, and may make such particles highly noticeable. In such cases, you can adjust the amount of detail processing on the noise particles by using the [Crispening] function.
  • The image edges become more visible when viewed on large screens. It may be advisable to ease off on Detail if you plan to view the image on large TVs or screens.

MENU – Red Camera Icon – page 12

red camera icon page 12

Color, White Balance and Image processing settings page 2

Soft Skin Effect

If you’re using this camera mainly for pics of friends and family, this is an excellent feature, as it will soften and smooth skin tones make you and your beloved ones look their best. (only available when quality is set to Jpeg)

MENU – Red Camera Icon – page 13

red camera icon page 13

Focus assist settings

Focus Magnifier

When focussing manually or in DMF mode, you can set the Sony A6500 to magnify a part of the screen so you can check focus. This sub-menu allows you to select the part of the image that will be magnified during shooting.

Focus Magnif Time

You can set how long to hold the magnified area during MF assist. 2 sec, 5 seconds or no limit. 2 seconds is how I have it set up.

AF in Focus Mag.

You can focus on the subject more accurately using auto-focus by magnifying the area where you want to focus. While the magnified image is displayed, you can focus on a smaller area than the flexible spot.

  1. Magnify the image by pressing the center of the control wheel, and then adjust the position using top/bottom/right/left of the control wheel.
  2. Press the shutter button halfway down to focus.
  3. Press the shutter button all the way down to shoot.
MF assist

This works in conjunction with the Focus Magnifier found on this page too You might remember that you can select the area to magnify there when using manual focus (MF). MF assist will need to be turned on if you want to use this feature.

Peaking Level
            • Peaking Level is a manual focusing aid which works when you have your Sony A6500 set to MF or DMF.
            • You’ll see a type of noise outlining the parts of your image where the focus lies, and you can adjust the sensitivity to high, mid or low.
          • Which setting is best depends on what lens you use, as with a sharper lens it can be configured to low, while more soft lenses benefit from a medium or high setting to clearly visualize what you’re focusing on.
Peaking Color

You can choose the color of this Peaking between Red, white and yellow. I have it set to red, as this contrasts nicely with most scenes you capture.

(MENU – Red Camera Icon – page 13)

red camera icon page 14

Face Detection and shoot assist settings

Smile/Face Detect

This is another powerful feature. It can be set to detect automatically and focus on (registered) faces and enable a function called Smile Shutter. When the latter is enabled, the Sony A6500 will automatically capture an image when a smile is detected. Did I hear you say Selfie? Yes, it’s the ultimate selfie tool, along with the pivoting screen.

Face Registration

If you register faces in advance, the product can detect the registered face as a priority when [Face Detection] is set to [On (Regist. Faces)]. Shoot the face from the front in a brightly lit place. The face may not be registered correctly if it is obscured by a hat, a mask, sunglasses, etc.

  1. MENU – (Camera Settings1) – [Face Registration] – [New Registration].
  2. Align the guide frame with the face to be registered, and press the shutter button.
  3. When a confirmation message appears, select [Enter].
Auto Object Framing

When enabled, the Sony 6500 will automatically crop your captured image to what it deems best. Meaning it will cut the picture for a nicer composition. Only available for Jpegs, though, a nice feature if you don’t want to bother too much with the technical side of photography.

MENU – Purple Camera Icon – page 1

purple camera icon page 1

Movie settings page 1

Movie/S&Q Motion

You can select the exposure mode for movie shooting or slow-motion/quick-motion shooting. You can change the setting and playback speed for slow-motion/quick-motion shooting with S&Q Settings later.

  • Program Auto / Program Auto: Allows you to shoot with the exposure adjusted automatically (both the shutter speed and the aperture value).
  • Aperture Priority / Aperture Priority: Allows you to shoot after adjusting the aperture value manually.
  • Shutter Priority / Shutter Priority: Allows you to shoot after adjusting the shutter speed manually.
  • Manual Exposure / Manual Exposure: Allows you to shoot after adjusting the exposure (both the shutter speed and the aperture value) manually.
File Format (video)

You can choose between XAVC S 4K, XAVC S HD, AVCHD or MP4. AVCHD is a far superior codec than plain MPEG-4.  You’ll need a fast UHS Speed Class U3 SD card to record at 100 Mbps or more.

  • XAVC S 4K: Records 4K movies in the XAVC S format. This format supports a high bit rate. Audio: LPCM
  • XAVC S HD: Records HD movies in the XAVC S format. This format supports a high bit rate. Audio: LPCM. The file size of movies is limited to approx. 2 GB. If the movie file size reaches approx. 2 GB during recording, a new movie file will be created automatically.
  • AVCHD: Records HD movies in the AVCHD format. This file format is suitable for high-definition TV. Audio: Dolby Digital
  • MP4: Records MP4 (AVC) movies. This format is suitable for playback on smartphones or tablets, web uploads, and email attachments. The file size of movies is limited to approx. 4 GB. If the movie file size reaches approx. 4 GB during recording, recording will stop automatically.
Record Setting  (video):

You can choose the quality of recorded video here. Select the image size, frame rate, and image quality for movie recording. The higher the bit-rate, the higher the picture quality. Frame- and bit-rate differ depending on your movie file format.

When File Format is set to XAVC S 4K you have these options:

  • 30p/25p: 30p 60M/25p 60Mbps or 30p 100M/25p 100Mbps.
  • 24p: 24p 60Mbps or 24p 100Mbps if your camera is set to NTSC

When File Format is set to XAVC S HD you have these options:

  • 120p/100p: 120p 60M/100p 60Mbps or 120p 100M/100p 100Mbps.
  • 30p/25p: 60p 50Mbps/50p 50Mbps.
  • 60p/50p: 30p 50Mbps/25p 50Mbps.
  • 24p: 24p 50Mbps when set to NTSC.

When File Format is set to AVCHD you have these options:

  • 60i/50i: 60i 17Mbps(FH)/50i 17Mbps(FH) or 60i 24Mbps(FX)/50i 24Mbps(FX).
  • 60p/50p: 60p 28Mbps(PS)/50p 28Mbps(PS).
  • 24p/25p: 24p 17Mbps(FH)/25p 17Mbps(FH) or 24p 24Mbps(FX)/25p 24Mbps(FX).

When File Format is set to MP4 you have these options:

  • 60p/50p: 1920×1080 60p 28Mbps/1920×1080 50p 28Mbps.
  • 30p/25p: 1280×720 30p 6Mbps/1280×720 25p 6Mbps or 1920×1080 30p 16Mbps/1920×1080 25p 16Mbps.
S&Q settings

You can do slow-motion recording or record quick-motion recording. The sound will not be recorded. In a slow-motion recording, the shutter speed becomes faster and you may not be able to obtain the proper exposure. If this happens, decrease the aperture value or adjust the ISO sensitivity to a higher value.

How to record slow motion movie on the Sony A6500:

  1. Set the mode dial to (Movie/S&Q Motion).
  2. Select MENU- (Camera Settings2)-[Movie/S&Q Motion]- and select the desired setting of slow-motion/quick-motion (S&Q) ( Program Auto, Aperture Priority, Shutter Priority, or Manual Exposure).
  3. Select MENU- (Camera Settings2)-[ S&Q Settings] and select the desired settings for [ Record Setting] and [ Frame Rate].
  4. Press the MOVIE (movie) button to start recording. Press the MOVIE button again to stop recording.

Record Setting: Selects the frame rate of the movie.

Frame Rate: Selects the shooting frame rate.

Playback speed: The playback speed will vary as below depending on the assigned [ Record Setting] and [Frame Rate].

Dual Video REC

Allows you to simultaneously record an XAVC S movie and an MP4 movie, or an AVCHD movie and an MP4 movie. You can simultaneously record a movie in different movie formats onto a memory card. To set the recording mode for 2 memory cards, such as simultaneous recording or sort recording, use Recording Mode.

AF Drive Speed

You can switch focusing speed when using autofocus in movie mode.

  • Fast: Sets the AF drive speed to fast. This mode is suitable for shooting active scenes, such as sports.
  • Normal: Sets the AF drive speed to normal.
  • Slow: Sets the AF drive speed to slow. With this mode, the focus switches smoothly when the subject to be focused is changed.

MENU –Purple Camera Icon– page 2

purple camera icon page 2

Movie settings page 2

AF Track Sens (movie)

You can set the AF sensitivity separately in movie mode.

  • Responsive: Sets the AF sensitivity to high. This mode is useful when recording movies in which the subject is moving quickly.
  • Standard: Sets the AF sensitivity to normal.
  • Locked on: Sets the AF sensitivity to low. You can shoot with a stable focus by ignoring the influence of anything in front of the subject.
Auto Slow Shut. (movie)

Sets whether or not to adjust the shutter speed automatically when recording dark scenes.

  • On: Uses Auto Slow Shutter. The shutter speed automatically slows when recording in dark locations. You can reduce noise in the movie by using a slow shutter speed when recording in dark locations.
  • Off: Does not use Auto Slow Shut.. The recorded movie will be darker than when On is selected, but you can record movies with smoother motion and less object blur.
Audio Recording

You can switch off audio recording in movie mode. When you record audio movies with loud volumes, set Audio Rec Level to a lower sound level. Doing so enables you to record more realistic audio. When you record audio movies with lower volumes, set Audio Rec Level to a higher sound level to make the sound easier to hear. Regardless of the Audio Rec Level settings, the limiter always operates.

Audio Rec Level

You can adjust the audio recording level while checking the level meter.

Audio Level Display

Sets whether to display the audio level on the screen.

Don’t see the audio level display?

  • Check if Audio Recording]is set to Off.
  • Check if DISP (Display Setting) is set to No Disp. Info.
  • During slow-motion/quick-motion shooting, audio is automatically turned OFF.
Wind Noise Reduction

This helps reduce noise from the wind during video recording.

MENU -Purple Camera Icon- page 3

purple camera icon page 3

Movie settings page 3

Marker Display (movie)

Select if you want guidelines (a grid) in movie modeThe markers are displayed on the monitor or viewfinder

Marker Settings (movie)

Sets the markers to be displayed while shooting movies. You can display several markers at the same time.

  • Center: Sets whether or not to display the center marker in the center of the shooting screen. [Off]/[On]
  • Aspect: Sets the aspect marker display. [Off]/[4:3]/[13:9]/[14:9]/[15:9]/[1.66:1]/[1.85:1]/[2.35:1]
  • Safety Zone: Sets the safety zone display. This becomes the standard range that can be received by a general household TV. [Off]/[80%]/[90%]
  • Guideframe: Sets whether or not to display the guide frame. You can verify whether the subject is level or perpendicular to the ground.

MENU – Purple Camera Icon- page 4

purple camera icon page 4

Shutter and Steadyshot settings

Silent Shooting

You can shoot images without the shutter sound, i.e. only using the electronic shutter.

e-Front Curtain Shut.

This shortens the time lag between shutter releases. When you shoot at high shutter speeds with a large diameter lens attached, the ghosting of a blurred area may occur, depending on the subject or shooting conditions. When a lens made by another manufacturer (including a Minolta/Konica-Minolta lens) is used, set this function to [Off]. If you set this function to [On], the correct exposure will not be set or the image brightness will be uneven.

Release without lens

Makes it possible to capture images even if a lens is not supported by the Sony A6500. (Like when using an adapter with vintage lenses)

Release without card

If set to Off, you won’t be able to engage the shutter when there is no SD card in the slot. This is a useful failsafe to prevent you from shooting images without the ability to save them.

SteadyShot

Sets whether or not to use the SteadyShot (sensor stabilization) function.For optimal sharpness, turn it off when using a tripod.

SteadyShot Settings

If your lens does not relay focal length information to the A6500 body, you can still use the Ibis stabilization by dialing in the focal length manually.

  • Auto: Performs the SteadyShot function automatically according to the information obtained from the attached lens.
  • Manual: Performs the SteadyShot function according to the focal length set using [SteadyS. Focal Len.]. (8mm-1000mm)

MENU – Purple Camera Icon- page 5

purple camera icon page 5

zoom settings

Zoom

Turn the digital zoom functionality on or off.

Zoom settings

Set to Optical zoom only (using the optical zoom capabilities of your lens

Two other settings are available which use digital zoom (cropping of the original image):

Digital zoom:

Pictures captured by the image sensor of the Sony A6500 are enlarged using digital signal processing. As the magnification level increases, signals to be also estimated growth and can reduce the picture quality.

Clear Image Zoom:

Zoomed images are captured close to the original quality when shooting a still picture. The camera first zooms to the maximum optical magnification, then uses Clear Image Zoom technology to enlarge the image an additional 2x, producing clear, sharp images despite the increased zoom ratio. If you don’t have a zoom lens, this might be an option as the Sony A6500 uses the RAW file to zoom; although still some image quality will be lost.

Zoom ring rotate

Assigns zoom in (T) or zoom out (W) functions to the zoom ring rotation direction. Available only with power zoom lenses that support this function.

MENU – Purple Camera Icon- page 6

purple camera icon page 6

Display and Auto Review settings

Disp button

Selects the functionality (what is shown) on the screen when you press the DISP button (on the control wheel). You can choose Graphic Display, all info, no disp info, and histogram.

Finder/Monitor

You can set the behavior of the EVF and screen here. Do you want your screen on all the time, switch between screen and EVF once your eye has been detected near the viewfinder?  Or turn the screen off and only use the EVF? It can all be selected here.

Finder Frame Rate

Display the subject’s movements more smoothly by adjusting the frame rate of the viewfinder during still image shooting. This function is convenient when shooting a fast-moving subject.

  • 120fps/100fps: Displays the movements of the subject more smoothly on the viewfinder.
  • 60fps/50fps: Displays the subject at a normal frame rate on the viewfinder.
Zebra

The zebra function shows a zebra pattern on the screen while shooting in any area that is in danger of highlight clipping. You can switch this OFF or anywhere in a range between 70 and 100.The Zebra Pattern is a highlight warning indicator that is common in video cameras. It does not control exposure but just warns you that your highlights are blown out. It is not recorded into the resulting image.I have it set halfway at around 75, and it is a very useful indication of correct exposure of the entire scene.

Grid Line (stills)

Sets whether the grid line is displayed or not. The grid line will help you to adjust the composition of images.

  • Rule of 3rds Grid: Place main subjects close to one of the grid lines that divide the image into thirds for a well-balanced composition.
  • Square Grid: Square grids make it easier to confirm the horizontal level of your composition. This is suitable to determine the quality of the composition when shooting landscape, close-up, or duplicated images.
  • Diag. Square Grid: Place a subject on the diagonal line to express an uplifting and powerful feeling.
  • Off: Does not display the grid line.
Exposure set guide

The exposure set guide is an on-screen scroller that tells you the relation between your chosen aperture and the appropriate shutter speed for the scene you are shooting. I find this quite handy, but you can turn it off if you don’t.

MENU – Purple Camera Icon- page 7

purple camera icon page 7

Display and Auto Review settings page 2

Live view Display

Live view display allows you to see the image you’re going to capture with the settings you have dialed-in like aperture and shutter speed. Some users report easier autofocusing in low light when it’s turned OFF, and you’d need to turn it off when using external flashes too that can’t be used with Sony’s TTL (through the lens) functionality.

Auto Review

You can check your captured image on the screen directly after shooting.  You can select how long the image will stay on the screen (10, 5 or 2 seconds). I find this very annoying, so I turned it off. If you want to review your image, you can simply press play to do so.

MENU – Purple Camera Icon- page 8

purple camera icon page 8

Custom operation settings page 1

Custom Key(Shoot.)/Custom Key(PB)

You can assign the desired function to the desired key. Some functions are available only when they are assigned to a custom key. For example, if you assign [Eye AF] to [Center Button] for [Custom Key(Shoot.)], you can easily recall [Eye AF] simply by pressing the center of the multi-selector while shooting.

The keys that can be assigned functions are different for [Custom Key(Shoot.)] and [Custom Key(PB)].

You can assign the desired functions to the following keys. You can also assign a shooting function to the focus hold button on the lens. However, some lenses do not have a focus hold button.2 1.

  • Custom Button 1
  • Custom Button2
  • AF/MF Button/AEL Button
  • Fn/ Button
  • Control Wheel (Center Button/Down Button/Left Button/Right Button)
  • Custom Button 3
Function Menu Set.

You can assign the functions to be called up when you press the Fn (Function) button.

Dial Setup

You can switch the functions of the front/rear dial between shutter speed and aperture.

Dial Ev Comp

You can compensate the exposure using the front or rear dial. You can adjust the exposure in a range of -5.0 EV to 5.0 EV.

MOVIE Button

Sets whether or not to activate the MOVIE (Movie) button.

  • Always: Starts movie recording when you press the MOVIE button in any mode.
  • Movie Mode Only: Starts movie recording when you press the MOVIE button only if the shooting mode is set to [Movie/S&Q Motion] mode.

MENU – Purple Camera Icon- page 9

purple camera icon page 9

Custom operation settings page 2

Dial Lock

You can set whether the dials will be locked by pressing and holding the Fn (Function) button. You can release the lock by holding the Fn (Function) button down again.

  • Lock: Locks the front and rear dials when you press and hold the Fn button.
  • Unlock: The front or rear dials are not locked, even if you press and hold the Fn (Function) button.
Audio Signals

Selects whether the product produces a sound or not, for example when the focus is achieved by pressing the shutter button halfway down.

MENU – Wireless functionality – page 1

wireless icon page 1

Wireless settings page 1

Send To Smartphone
    • You can send one or several images directly to your wireless device (phone or tablet) by pressing this button.
    • You can either decide to choose which images you want to transfer on the Sony A6500 or the wireless device (via the Sony PlayMemories app, available for free in the apple or android store).
    • You’ll have to connect the-the camera via Wifi first (it makes a Wifi access point), using the instruction on the A6500 screen.
    • It works just like connecting to any other access point with your phone or tablet.
    • You should do this as quickly as possible, just to get it out of the way.
  • When your phone has wirelessly connected to the camera once, and you’ve entered the password, it will remember this, and make it a lot faster to connect later.
Send to Computer

You’ll need to connect the computer physically to the Sony A6500 using the supplied USB cable, and you can push selected pictures to your Sony PlayMemories desktop software (installed from the CD or downloaded from their website). This can even be set up to continue pushing images after the camera has turned off.

View On TV

If you have a Wifi-enabled TV, you can see pictures and slideshows directly from your Sony A6500 through your home wireless network.

One Touch NFC

Enables Quick, one-touch connection (as opposed to first accessing the camera’s wireless network and then navigating to the Playmemories app) with NFC (near-field communication) capable devices.

I have not tried this (as my iPhone does not have NFC), but it looks a lot easier to use.

Airplane Mode

Disables all wireless functionality, just like airplane mode does on your phone.

Wi-Fi Settings:
WPS Push

If your access point has the Wi-Fi Protected Setup (WPS) button, you can register the access point to this product easily by pushing the Wi-Fi Protected Setup (WPS) button.

Access Point Set.

You can register your access point manually. Before starting the procedure, check the SSID name of the access point, security system, and password. The password may be preset in some devices. For details, see the access point operating instructions, or consult the access point administrator.

Disp MAC Address

Displays the MAC address of your Sony ILCE-A6500.

SSID/PW Reset

Your Sony A6500 shares the connection information for [Send to Smartphone] and [ Connection Info.] with a device that has permission to connect. If you want to change the device that is permitted to connect, reset the connection information.

MENU – Wireless functionality – page 2

wireless icon page 2

Wireless settings page 2

Bluetooth Settings.

Controls the settings for connecting the camera to a smartphone via a Bluetooth connection. You need to pair the camera and smartphone before using the location information interlocking function. If you want to pair the Sony A6500 and smartphone in order to use the location information interlocking function, refer to “Loc. Info. Link Set..”

Loc. Info. Link Set

You can use the application PlayMemories Mobile to obtain location information from a smartphone that is connected with your camera using Bluetooth communication. You can record the obtained location information when shooting images.

To use the location information linking function of the Sony A6500, you need the PlayMemories Mobile application on your smartphone and transfer an image to your smartphone to test the connection

Procedure:

  1. Confirm that the Bluetooth function of your smartphone is activated. (Do not perform the Bluetooth pairing operation on the smartphone setting screen!!! In steps 2 to 7, the pairing operation is performed using the camera and the application PlayMemories Mobile. If you accidentally perform the pairing operation on the smartphone setting screen in step 1, cancel the pairing and then perform the pairing operation by following Steps 2 through 7 using the camera and the application PlayMemories Mobile.)
  2. On the camera, select MENU – (Wireless) – [Bluetooth Settings] – [Bluetooth Function] – [On].
  3. On the camera, select MENU – (Wireless) – [Bluetooth Settings] – [Pairing].
  4. Launch PlayMemories Mobile on your smartphone and tap “Location Information Linkage.”
  5. Activate [Location Information Linkage] on the [Location Information Linkage] setting screen of PlayMemories Mobile.
  6. Select [OK] when a message is displayed on the monitor of the camera. Pairing of the camera and PlayMemories Mobile is complete.
  7. On the camera, select MENU – (Wireless) – [ Loc. Info. Link Set.] – [Location Info. Link] – [On].

(obtaining location information icon) will be displayed on the monitor of the camera. Location information obtained by your smartphone using GPS, etc., will be recorded when shooting images.

Options in this Menu:

  • Location Info. Link: Sets whether to obtain the location information by linking with a smartphone.
  • Auto Time Correct.: Sets whether to automatically correct the date setting of the Sony A6500 using information from a linked smartphone.
  • Auto Area Adjust.: Sets whether to automatically correct the area setting of the camera using information from a linked smartphone.
Edit Device name

If you wish, you can change the name of the Device Access point) perhaps to make it easier to identify which A6500 is yours in particular situations.

Reset Network set

Resets all network settings.

If something does not function properly, and you want to start from scratch, can be useful.

MENU – Application List Menu

Playmemories Icon

Playmemories application settings

You’ll find The Smart remote control camera app (which allows you to use your phone as a remote control via PlayMemories phone app for iPhone and Android) and the Playmemories Camera app here.

You can access your online PlayMemories account here, or create an account (once you’ve set up your Sony A6500 connection with your Wifi network).

You’ll also be able to download new apps available for purchase in the Sony Playmemories online app store like the Time-lapse and smooth reflection app.

If you do not want to connect your camera to the internet, you can always install new apps (and updates) if you connect the Sony A6500 to your Mac or PC with the supplied USB cable, using the Sony PlayMemories desktop application.

MENU – playback options – page 1

playback icon page 1

Playback settings page 1

Delete

Delete one or multiple images stored on your SD card.

View Mode

select how the Sony A6500 will arrange captured pictures in the viewing browser.

Image Index

Choose whether you want the image browser to display 12 (larger) or 30 (smaller) images per page.

Display rotation

Select whether you want the camera to rotate images automatically when you rotate the Sony A6500 or not.

Slide Show

Select whether you want the Sony A6500 to repeat slideshows when all pictures are viewed or not, and choose the interval between slides.

Rotate

Change the orientation of images in-camera.

MENU – playback options – page 2

playback icon page 2

Playback settings page 2

Enlarge Image

Select an image and expand a portion of that picture. Useful for checking details and focus.

Protect

Protect images (selectable or per date) from accidentally being erased.

Specify Printing

Specify Printing is a feature that allows images to be marked for printing later. Registered images are displayed with the DPOF mark. (DPOF stands for Digital Print Order Format)

Photo Capture

Captures a chosen scene in a movie to save as a still image. First shoot a movie, then pause the movie during playback to capture decisive moments that tend to be missed when shooting still images, and save them as still images.

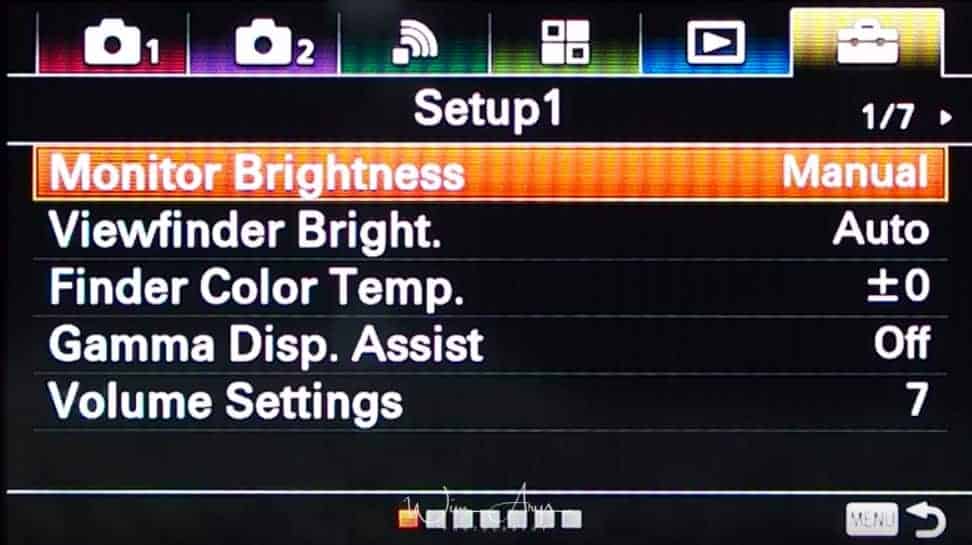

MENU – Setup – page 1

setup icon page 1

Monitor Brightness

Manually set the Monitor brightness (recommended leave to zero) or change to a brighter setting for Sunny Weather.

Viewfinder Brightness

Set to Auto, which adapts to the lighting circumstances or manually changes to your preferred setting.

Finder Color Temp

Change the color temperature of the viewfinder (colder-warmer) to you liking. I don’t make any adjustments here.

Gamma Disp. Assist

Movies with S-Log gamma are assumed to be processed after shooting in order to make use of the wide dynamic range. They are therefore displayed in low contrast during shooting and may be difficult to monitor, using [Gamma Disp. Assist], contrast equivalent to that of normal gamma can be reproduced. In addition, [Gamma Disp. Assist] can also be applied when playing back movies on the camera’s monitor/viewfinder.

Volume settings

Modify the playback volume for recorded video or demos.

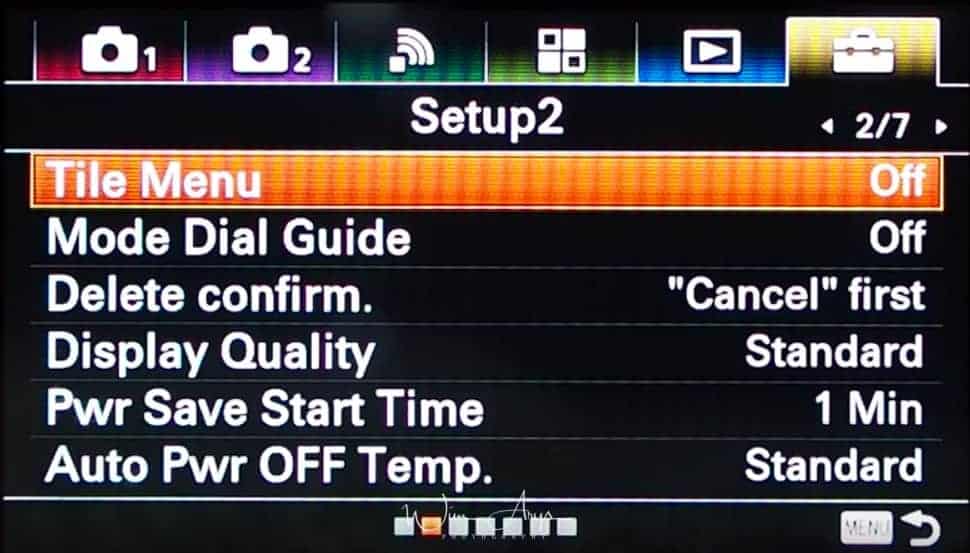

MENU – Setup – page 2

setup icon page 2

Title Menu

choose between tiles or a tiled front page when accessing the MENU or a linear tab style menu layout.

Mode Dial Guide

Turn the description for each shooting mode ON or OFF. Can be handy at first for a novice user to get familiar with what the different shooting modes do.

Delete Confirm

When deleting images on your SD card, you’ll have to confirm every deletion (to make sure you don’t accidentally delete anything). You can turn Off this confirmation here if you wish.

Display Quality

You can change the display quality from standard to high at the expense of shorter battery life.

Pwr Save Start time

Sets time intervals to automatically switch to power save mode when you are not performing operations to prevent wearing down the battery pack. To return to shooting mode, perform an operation such as pressing the shutter button halfway down. I have it set to 5 minutes, a good balance between usability and battery life.

Auto Pwr OFF Temp.

Sets the temperature of the camera at which the Sony A6500 turns off automatically during shooting (overheating). When it is set to High, you can continue shooting even when the temperature of the camera gets hotter than normal. Do not shoot while holding the camera in your hand as it can cause burns. Use a tripod. This will give you a 9-minute increase in movie recording at high ambient temperatures.

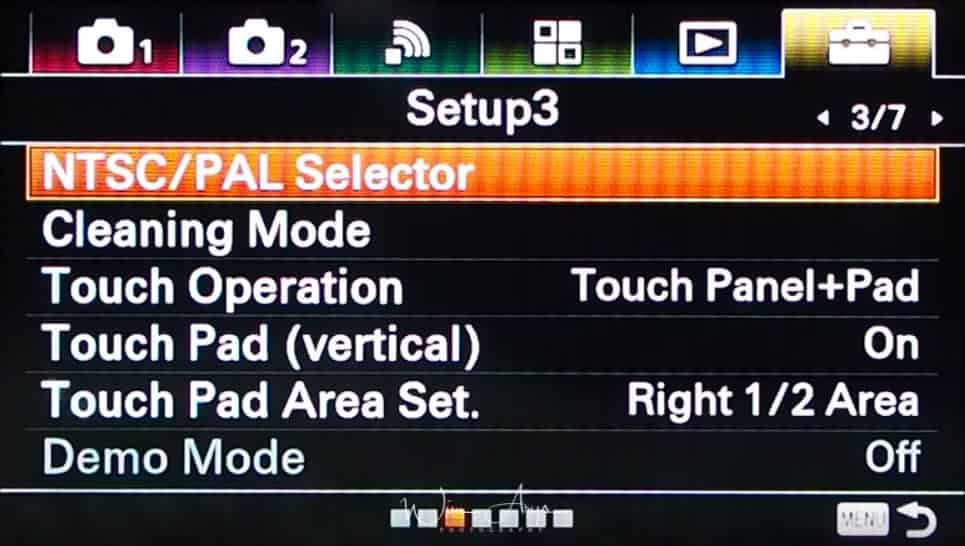

MENU – Setup – page 3

setup icon page 3

NTSC/PAL Selector

Plays back movies recorded with the product on an NTSC/PAL system TV.

Cleaning Mode

If dust or debris gets inside the Sony A6500 and adheres to the surface of the image sensor (the part that converts the light to an electric signal), it may appear as dark spots on the image, depending on the shooting environment. If this happens, follow the steps below to clean the image sensor.

Touch Operation

Sets whether or not to activate touch operations on the monitor. Touch operations when shooting with the monitor are referred to as “touch panel operations,” and touch operations when shooting with the viewfinder are referred to as “touch pad operations.”

  • Touch Panel+Pad: Activates both the touch panel operations when shooting with the monitor and touchpad operations when shooting with the viewfinder.
  • Touch Panel Only: Activates only the touch panel operations when shooting with the monitor.
  • Touch Pad Only: Activates only the touch pad operations when shooting with the viewfinder. Off: Deactivates all touch operations.
  • Off: Deactivates all touch operations.
Touch Pad Area Set.

Sets the area to be used for touchpad operations when shooting with the viewfinder. You can prevent unintentional operations caused by your nose, etc. touching the monitor.

  • Whole Screen: Uses the entire monitor as the touchpad.
  • Right 1/2 Area: Uses only the right half of the monitor as the touchpad.
  • Right 1/4 Area: Uses only the right quarter of the monitor as the touchpad.
Demo Mode

The Demo Mode function displays the movies recorded on the memory card automatically (demonstration) when the Sony A6500 has not been operated for a certain time. Normally select Off.

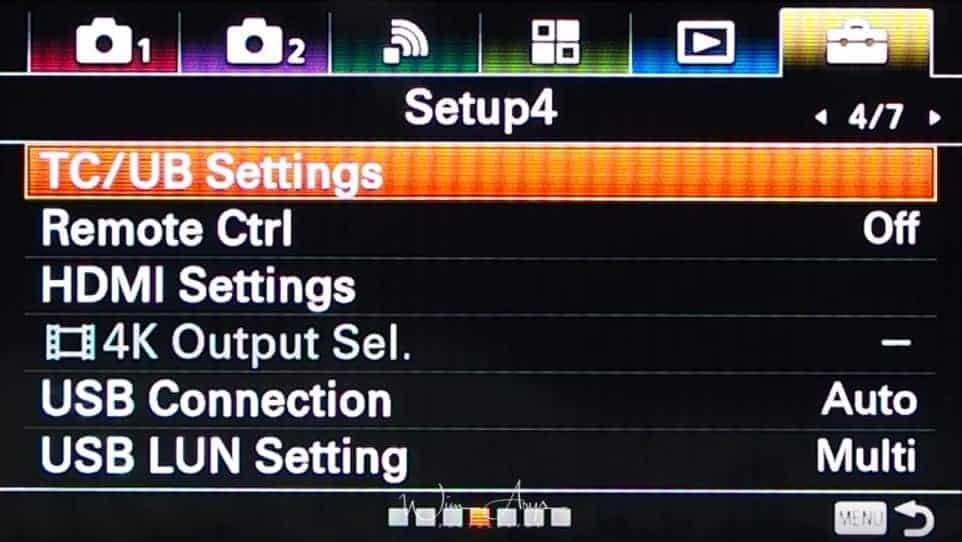

MENU – Setup – page 4

setup icon page 4

TC/UB settings

Timecode (TC) and the user bit (UB) information can be recorded as data attached to movies. This is used for synchronization of video in post production. The time code can be set between the following range: 00:00:00:00 to 23:59:59:29.

  • TC/UB Disp. Setting: Sets the display for the counter, time code, and user bit.
  • TC Preset: Sets the time code.
  • UB Preset: Sets the user bit.
  • TC Format: Sets the recording method for the time code. (Only when [NTSC/PAL Selector] is set to NTSC.)
  • TC Run: Sets the count up format for the time code.
  • TC Make: Sets the recording format for the time code on the recording medium.
  • UB Time Rec: Sets whether or not to record the time as a user bit.
Remote CTRL

You can operate this product and shoot images using the SHUTTER button, 2 SEC button (2-second delay shutter), and START/STOP button (or Movie button (RMT-DSLR2 only)) on the Wireless Remote Commander RMT-DSLR1 (sold separately) and RMT-DSLR2 (sold separately). Refer also to the operating instructions for the Wireless Remote Commander.

HDMI Settings

When you connect the product to a High Definition (HD) TV with HDMI terminals using an HDMI cable (sold separately), you can select HDMI Resolution to output images to the TV.

  • Auto: The product automatically recognizes an HD TV and sets the output resolution.
  • 2160p/1080p: Outputs signals in 2160p/1080p.
  • 1080p: Outputs signals in HD picture quality (1080p).
  • 1080i: Outputs signals in HD picture quality (1080i).
4K Output Sel.

Outputs still image in 4K resolution to an HDMI-connected TV that supports 4K.

  • Memory Card HDMI: Simultaneously outputs to the external recording/playback device and records on the camera’s memory card.
  • HDMI Only(30p): Outputs a 4K movie in 30p to the external recording/playback device without recording on the Sony A6500 memory card.
  • HDMI Only(24p): Outputs a 4K movie in 24p to the external recording/playback device without recording on the camera’s memory card.
  • HDMI Only(25p)* : Outputs a 4K movie in 25p to the external recording/playback device without recording on the camera’s memory card.
USB connection

Selects what will happen when you connect your Sony A6500 to your PC or MAC.

  • Auto: Establishes a Mass Storage or MTP connection automatically, depending on the computer or other USB devices to be connected. Windows 7 or Windows 8 computers are connected in MTP, and their unique functions are enabled for use.
  • Mass Storage: Establishes a Mass Storage connection between this product, a computer, and other USB devices.
  • MTP: Establishes an MTP connection between this product, a computer, and other USB devices. Windows 7 or Windows 8 computers are connected in MTP, and their unique functions are enabled for use.
  • PC Remote: Uses “Remote Camera Control” to control this product from the computer, including such functions as shooting and storing images on the computer
USB LUN Setting

Improves compatibility with external devices by limiting the functions of the USB connection.

Older devices that are not able to connect to the Sony A6500 might work when set to single. Otherwise, use Multi.

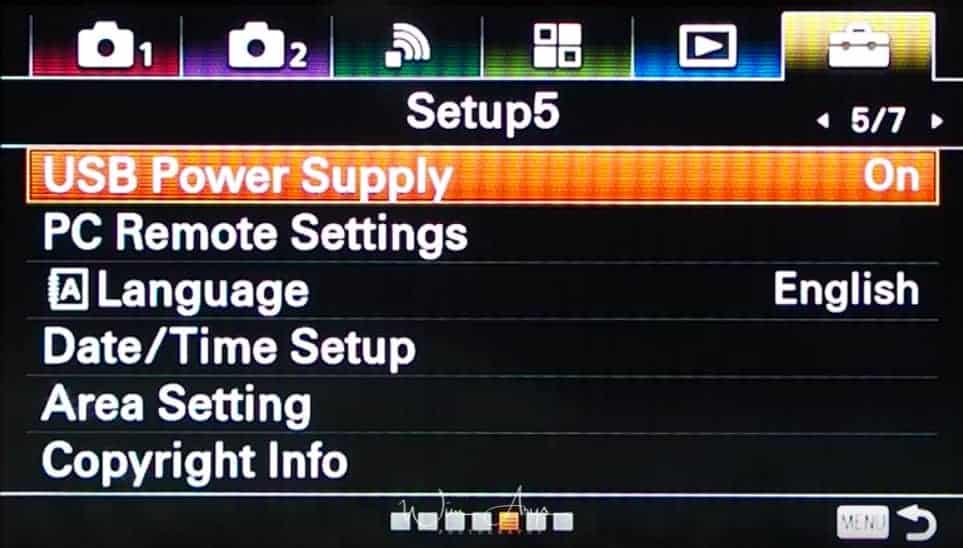

MENU – Setup – page 5

setup icon page 5

USB Power Supply

You can extend battery life by providing a power supply over USB.

PC Remote settings

Sets whether to save still images stored in both the camera and the computer during PC Remote shooting. This setting is useful when you want to check recorded images on the camera without leaving the camera.

Language

Selects the language to be used in the menu items, warnings, and messages.

Date/Time Setup

The Clock Set screen is displayed automatically when you turn on your A6500 for the first time.

Area Settings

Sets where in the world where you are using your camera.

Copyright info

Writes copyright information onto the still images like your name or business.

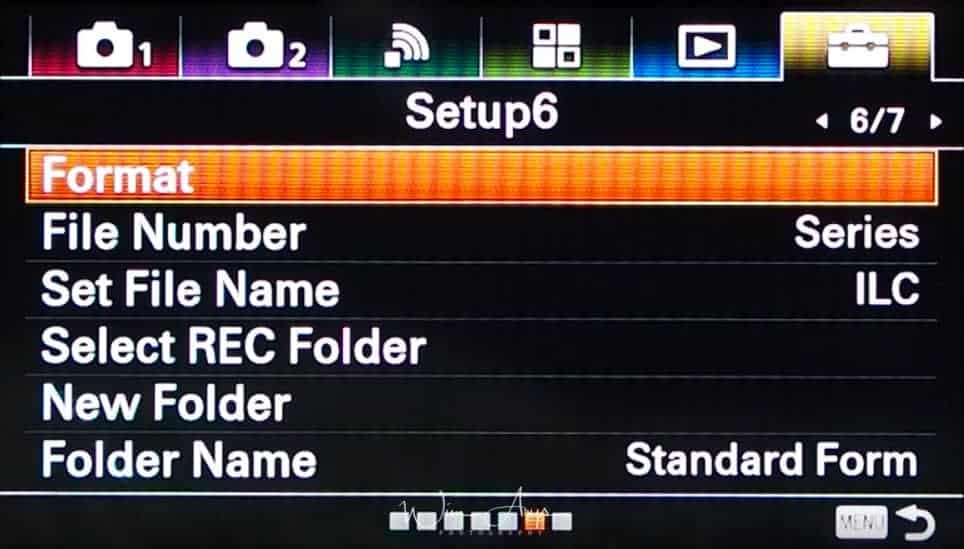

MENU – Setup – page 6

setup icon page 6

Format

When you use a memory card with this camera for the first time, we recommend that you format the card using the Sony A6500 for stable performance of the memory card. Note that formatting permanently erases all data on the memory card, and is unrecoverable.

File Number

Name your files according to some shots or reset it to start from 1.

Set File Name

Use the standard file naming system or a customizable one.

Select REC folder

Selects where the Sony A6500 will store newly captured images.

New Folder

Make a new folder for quickly organizing events and locations.

Folder name

Choose whether to have folder names in standard form (DSC) or create a new one by date. Setting folders by date will make organizing your images easier.

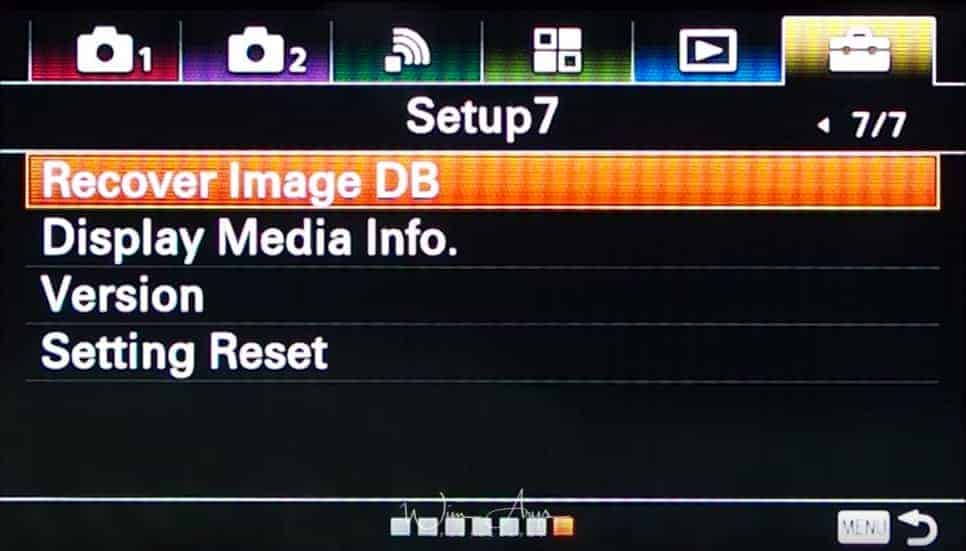

MENU – Setup – page 7

setup icon page 7

Recover Image DB

If you have a storage card error, you can try to rebuild the database to retrieve lost images possibly.

Display media info

You can check how much space is left on your SD card (have pictures in your desired quality and how many minutes of video)

Version

Check what version of the operating system your camera and the lens is running. Sony sporadically releases updates with new features, so it might be worth checking if any new firmware versions are available.

Setting Reset

Fully resets the Sony A6500 to factory settings.

The Next Chapter is about the various shooting Modes Available, another concept that is necessary to understand fully.

Shooting modes available via the Mode Dial

Intelligent Auto:

This mode automatically detects the type of scene you’re shooting and adjusts the scene automatically. You’ll see the icon for the recognized scene appears on the top right hand of the screen.

These scenes are the same ones which can be selected individually in SCENE mode.

The Sony A6500 will also use the most appropriate FOCUS AREA, and ISO value (the ISO range cannot be changed in iAuto though).

Drive Mode (single shooting, continuous shooting Lo-Mid-Hi), Self-timer and Self-timer cont (multiple images with the self-timer) can be changed by using the Fn button.

Works for both RAW and JPEG shooting.

Disadvantage: ISO range is fixed to 50-6400 (you can’t change the range).

P (Program Auto):

Program (P) mode automatically adjusts exposure and aperture according to your desired setting.

See this as a more advanced iAuto mode, as you’ll be able to change all other settings through the touch screen (Focus area, creative style, exposure compensation,…);

tip: lower the automatic ISO range to 100-1600 for better image quality (ISO-Auto range in MENU SYSTEM)

A (Aperture Priority):

Allows you to adjust the aperture and shoot, for example when you want to blur the background (large aperture like f/1.8), or want a sharp corner-to-corner image (around f/5.6-f/8).

The aperture value can be changed during movie recording, a technique that will be familiar to videographers.

Smaller F-value: The subject is in focus, but objects in front of and beyond the subject are blurred (what is called Bokeh).

Larger F-value: The subject and its foreground and background are all in focus.

If proper exposure cannot be set, the shutter speed on the shooting screen blinks.

S (Shutter Priority):

The go-to mode if you can’t shoot fast-moving subjects, by manually adjusting the shutter speed. You can express the movement of a moving subject in various ways by changing the shutter speed, for example, at the instant of motion with a high-speed shutter, or as a trailing image with a low-speed shutter. The shutter speed can be changed while recording movies. The aperture is automatically adjusted to obtain proper exposure.

If a correct exposure cannot be obtained, the aperture value on the shooting screen blinks.

            • Use a tripod to prevent blurring when you use a slow shutter speed.
            • The SteadyShot warning indicator does not appear in shutter speed priority mode.
            • When the shutter speed is 1 second(s) or longer, noise reduction will be applied (Long Exposure noise reduction in the Menu ON/OFF) after shooting for the same amount of time that the shutter was open. This will temporarily freeze your Sony A6500, and you want to be able to capture images while noise reduction is in progress.
          • The brightness of the picture on the monitor may differ from the actual image being shot (there is no Live view on Sony cameras for long exposures).

M (Manual Exposure):

Both shutter speed and the aperture value can be changed in this mode, also during movie recording.

Press the bottom side of the control wheel to select the shutter speed or aperture value, then turn the control wheel to select a value.

When ISO Auto is used, the ISO value automatically changes to achieve the appropriate exposure using the aperture value and shutter speed you have set.

            • If the aperture value and shutter speed you have set are not suitable for adequate exposure, the ISO value indicator will blink.
            • When the amount of ambient light exceeds the metering range of the Metered Manual, the Metered Manual indicator flashes.
            • The SteadyShot warning indicator does not appear in manual exposure mode.
          • The brightness of the image on the monitor may differ from the actual image being shot.
Bulb Mode in Manual exposure

Bulb is the mode used to shoot a trailing picture of a subject’s’ movement with a long exposure time. Think light trails from cars, or fireworks.

            1. Set the mode dial to M (Manual Exposure).
            1. Turn the control wheel counterclockwise until [BULB] is indicated.
            1. Set the aperture value (F-value) by turning the control dial.
            1. Press the shutter button halfway down to focus.
          1. Press and hold the shutter button for the duration of the shooting.

Tips:

            • Use a tripod for long exposures.
            • Use the PlayMemories remote or a wired remote control to eliminate any movement of the camera.
          • After shooting, noise reduction will be applied (as noise builds up quickly with long exposures). This will take as long as your long exposure did, and you won’t be able to use the Sony A6500 until this is finished.

Can’t get the shutter speed to Bulb Mode? Check these settings and turn them OFF:

            • Is Smile Shutter activated?
            • Is Auto HDR enabled?
            • Is Picture Effect is set to HDR Painting or Rich-tone Mono?
          • Is Drive Mode set to Cont. Shooting, Cont. Bracket or Self-timer(Cont)?

Movie:

Although you can capture movies in any mode, it is easiest to change all related settings for video recording here. You can adjust the shutter speed or aperture value to your desired settings for recording movies. You can also check the image angle before shooting.

Press the MOVIE button to start recording and again to stop recording.

Menu:

            • Program Auto: Allows you to shoot with the exposure (both the shutter speed and the aperture value) adjusted automatically. Other settings can be set manually, and the settings are retained.
            • Aperture Priority: Allows you to shoot after adjusting the aperture value manually.
            • Shutter Priority: Allows you to shoot after adjusting the shutter speed manually.
          • Manual Exposure: Allows you to shoot after adjusting the exposure (both the shutter speed and the aperture value) manually.

When a zoom lens is mounted, you can also zoom by operating that lens. When a motor zoom lens is mounted, move the zoom lever of the zoom lens to enlarge subjects.

Sweep Panorama:

Allows you to shoot a panoramic image by compositing the footage.

            • Panorama mode will capture a series of images in succession.
            • You’ll be guided through this process using an arrow on-screen that shows the direction and speed of the camera panning.
            • The 6500 will automatically detect and capture the series of images while panning.
          • Afterward, it will stitch together all these pictures into a broad view of the scenery and save it as a Jpeg.

TIP: Panorama size (standard or wide) and panning direction can be changed in the MENU–.

Scene Selection Mode (SCN)

Allows you to shoot with preset settings according to the scene. iAuto and Superior Auto detect these scenes automatically for you and applies the presets it deems best, and does an excellent job at that. However, in certain circumstances (when you know what you are going to capture) it is better to select the appropriate scene yourself, as it takes the guessing work out of the equation.

The Sony A6500 has a decent range of well-designed presets:

Portrait:

Blurred background for a beautiful Bokeh, and sharpens the subject. How good this will look relies heavily on the lens you’re using. A zoom is less suited to this kind of photography; best use a prime, fast lens.

This preset accentuates the skin tones softly (you can select skin softening for all Modes in the Menu system too).

Sports Action:

Shoots a moving subject at a fast shutter speed so that the subject looks as if it is standing still. The product shoots images continuously while the shutter button is pressed.

Macro:

Shoots close-ups of the subjects, such as flowers, insects, food, or small items.

Landscape:

Shoots the entire range of scenery in sharp focus with vivid colors. The Sony A6500 will go to a smaller aperture to achieve this, as lenses are sharper corner-to-corner at smaller apertures.

Sunset:

Shoots the red of the sunset beautifully.

Night Scene:

Shoots night scenes without losing the dark atmosphere. Will go to higher ISO values and larger apertures to achieve a useable shutter speed, enabling you to capture sharp images without blur.

Hand-held Twilight:

Shoots night scenes with less noise and blur without using a tripod. A burst of shots are taken, and image processing is applied to reduce subject blur, camera shake, and noise.

Night Portrait:

Shoots night scene portraits using the flash. The flash does not pop up automatically. Pop up the flash manually before shooting.

Anti Motion Blur:

Allows you to shoot indoor shots without using the flash and reduces subject blur. The product shoots burst images and combines them to create the image, reducing subject blur and noise.

Eye AF

You’ll need to assign this function to a button for it to work.

MENU – purple camera icon- page 8 – Custom Key Settings – assign the Eye AF function to the desired button.

The Eye AF feature will let the camera focus on the subject’s eyes while you keep the button pressed.

          1. Point the Sony A6500 at a face, and push the button to which you have assigned the Eye AF
          2. Press the shutter button while pressing the button

The Sony A6500 may not be able to focus on the eyes depending on the circumstances, like when no

Eyes can be detected within the autofocus area. In such cases, the camera focuses on the face.

You cannot use Eye AF when the focus mode is set to C, set it to A.

When the Sony A6500 focuses on the eyes and Smile/Face Detect is on, you’ll see a detection frame.

Displayed on the face after it is shown on the eyes. When Smile/Face Detect is off, a detection frame is affixed to the eyes.

Auto Obj. Framing (not available in RAW)

Menu – Red camera icon- page 13-  Auto Obj. Framing – desired setting (On or Off)

When the A6500 detects and shoots faces, macro shooting subjects or subjects that are tracked by Lock-on AF, the Sony A6500 automatically trims the image into an appropriate composition and saves it.

Live View Display

MENU – purple camera icon – page 7 – Live View Display – desired setting

Live view shows your images as they’ll appear out of the camera, with effects of the exposure compensation, white balance, Creative Style, or Picture Effect on the screen.

          1. Setting Effect ON (default setting and Intelligent Auto, Superior Auto, Sweep Panorama, Movie or Scene Selection): Displays Live View in conditions close to what your picture will look like as a result of applying all your settings. This setting is useful when you want to shoot pictures while checking the results of the shot on the Live View screen. Live View is always displayed with the appropriate brightness even in Manual Exposure mode.
          2. Setting Effect OFF: Shows Live View without the effects of exposure compensation, white balance, Creative Style, or Picture Effect. This is useful for precisely checking your composition in particular conditions. Like when you use a third-party Flash, such as a studio flash, Live View Display may be dark for some shutter speed settings.

e-Front Curtain Shut.

MENU – purple camera icon – page 4 – e-Front Curtain Shut – desired setting ON or OFF

 Yes the Sony A6500 has an electronic front curtain shutter! This shortens the time lag between shutter releases.

Remember that when you shoot at high shutter speeds with a large diameter lens attached, the ghosting of a blurred area may occur, depending on the subject or shooting conditions.

When a lens made by another manufacturer (including a Minolta/Konica-Minolta lens) is used, turn this function off. If you set this function to On, the correct exposure will not be set, or the image brightness will be uneven.

Lens compensation features

The Sony A6500 has a range of built-in lens compensation functions. I can see this being useful for journalism and sports shooters who want to quickly get their jpegs to their editors with the minimum amount of editing.

Shading Comp.

MENU – Red camera icon – page 2 – Lens Comp – Shading Comp – desired setting ( Auto or Off)

Compensates for the shaded corners of the screen caused by certain lenses.

The Shading Comp function is only available with certain A-mount lenses.

Chromatic Aberration Compensation

MENU -Red camera icon – page 2 – Lens Comp –  Chro. Aber. Comp  – desired setting (Auto or Off)

Reduces the colour deviation at the corners of the screen, caused by certain lens characteristics.

The Shading Comp function is only available with certain A-mount lenses.

Distortion Compensation

MENU -Red camera icon – page 2 – Lens Comp – Distortion Comp – desired setting (Auto or Off)

Compensates for the distortion of the screen, caused by particular lens characteristics.

The Shading Comp function is only available with certain A-mount lenses and with some cannot be turned Off.

Memory card issues

Some people have reported problems with certain memory cards. These problems include:

          • Unable to magnify images on the card.
          • Buffer related problems.
          • Inability to read the memory card.

SD, SDHC, SDXC memory card and Memory Stick PRO Duo, Pro-HG Duo, PRO-HG HX Duo media are all supported.

Make sure you:

          • Format the memory card once you’ve inserted in the camera.
          • If you’re using fast burst speeds, use a fast card (32GB 95MB/s read and 45mB/s) write is my recommendation to take advantage of the Sony A6500 FR and Buffer.
          • If you’re using larger cards (64 or 138GB), make sure you get the fastest available.
          • An SDHC UHS-I card (stands for “Ultra High Speed”) is recommended for best performance in burst mode.
          • Sandisk Extreme Pro SDHC UHS-I cards seem to work very well.

Conclusion

Here it is, the advanced manual for the Sony A6500 with plenty of tips and tricks to get you started. If you’re somewhat overwhelmed by this large post, I would suggest that you use the search function in a browser like Chrome at first to find the subject you are actually looking for. If you have any questions or need extra information on any subject covered here, feel free to write something in the comments section below. Have Fun!

wim arys

Wim Arys is a photographer from Belgium Europe with a passion for mirrorless cameras.

You may also like...

30 Responses

  1. Mike J Moore says:

    Thank you

  2. Noall Knighton says:

    Thanks for the post.

  3. Levy shahak says:

    Many thanks for your clear explanation !

  4. sean parlan says:

    That was a great post!

  5. Eric Richmond says:

    Simply illustrative. Thanks.

  6. Are you shooting with an A6500 currently? If so, do have any temperature issues?

    Thanks for the great post,

    Mike

  7. Jos Schiepers says:

    Thank you very much for this post.

  8. Dotan Guetta says:

    Thanks for the profound explanation.
    One question concerning all Sony mirrorless cameras, I guess – is there any way to cancel the rolling numbers bar animation when changing aperture\shutter\iso?

  9. Misael says:

    Thanks for the post.

    I’m not sure ’bout the steady of this camera – a6500 – during movies’ rec. Is this feature enabled by default or I have to do something more. Can u help me?

    • wim arys says:

      Hi Misael, you’re talking about using IBIS right? It’s enabled by default but it will only help to stabilise the sensor a little bit, big movements can’t be compensated in this way. For that you need a real 3 Axis Handheld Gimbal Stabilizer like this

  10. Paul says:

    Awesome guide! Thank you very much!

  11. Zla Bij says:

    I think Sony Should hire you to fix their so complicated menu. Thank you very much for explanation.

  12. Richard says:

    Awesome guide!

    which is your camera settings ?

    Thank you !

  13. Todd Cary says:

    The Advanced Guide (A6500) is such a valuable contribution to A6500 users. Using it plus experience, I have Custom 1 & 2 set for most of my still images (one for “A” and the other for “M”). Is there arn guide for basic video e.g. good for YouTube — nothing fancy? There so many choices for video.

  14. Louis says:

    Thanks for this! I have several old screw mount Pentax lenses and I bought an adapter to use them with my new A6500. Can you recommend all the settings to best use these manual lenses?

    • wim arys says:

      Mi Preferred way to use manual lenses is P mode or full Manual. In P Mode, you get the advantage of the camera telling you which exposure time will give you a decent, fully exposed image. I would leave ISO to auto for this too.

  15. Scott says:

    Amazing summary. I’ve been looking for this for some time. Thank you.

  16. Kirk Merritt says:

    Great set up guidelines, tight presentation, and easy to understand, thanks, and take care. Quick question, two controls are greyed out regardless of settings Photo Capture and 4K Output Settings, normal? Thanks…

Leave a Reply

Your email address will not be published. Required fields are marked *
