Introduction

The Sony RX100 IV looks almost identical to the Sony RX100 III on the outside. The only thing that has changed on the hardware side is an increase in the resolution of the pop-up viewfinder. You can find many improvements internally, though, like a bump up from HD to 4K video recording, slo-mo video a more responsive autofocus system and faster continuous shooting for both RAW and JPEG.

These tips and tricks for the RX100 IV are mainly useful for photographers, although I have included some tips for the casual video shooter too. You should make sure you are running firmware version 2.0, released in 2017.

First things first:

Are you looking for tips and settings for:

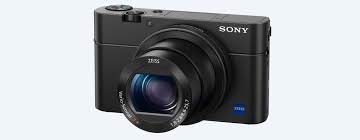

Sony RX100 IV tips tricks

Since the Sony RX100 IV has the same menu layout as recently released Sony Alpha cameras, you’ll quickly find your way around if you already own one of those.

I’ll be going over the entire Menu structure in this post, and giving you tips, pointers, and tricks along the way. If you’re a bit impatient, there is a more abbreviated “best settings” chapter before my conclusion.

Diving into the MENU system

When you switch on your camera, you’ll be asked to enter a date, time and timezone. This setting is necessary, as all images captured will have a timestamp, making it easy to find your favorite pictures in the future.
After this is setup, press the MENU button. You’ll see a range of icons and pages.
We’ll start at page 1 of the camera Icon (camera settings)

(MENU → Camera Settings → page 1)

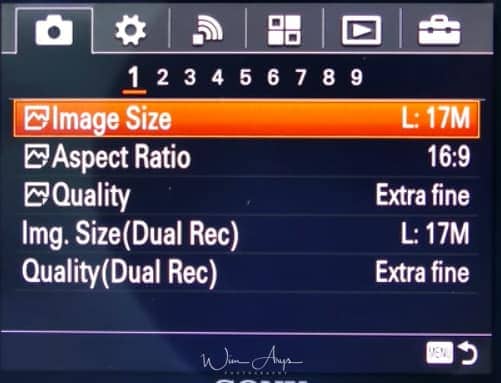

Menu camera icon page 1

Image size:

The larger the image size, the more detail will be reproduced when the image is printed on large-format paper. The smaller the image size, the more images can be recorded.

Image size when the aspect ratio is 3:2:

  • L: 20M 5472×3648 pixels
  • M: 10M 3888×2592 pixels
  • S: 5.0M 2736×1824 pixels

Image size when the aspect ratio is 4:3:

  • L: 18M 4864×3648 pixels
  • M: 10M 3648×2736 pixels
  • S: 5.0M 2592×1944 pixels VGA 640×480 pixels

Image size when Aspect Ratio is 16:9

  • L: 17M 5472×3080 pixels
  • M: 7.5M 3648×2056 pixels
  • S: 4.2M 2720×1528 pixels

Image size when Aspect Ratio is 1:1

  • L: 13M 3648×3648 pixels
  • M: 6.5M 2544×2544 pixels
  • S: 3.7M 1920×1920 pixels

Note that when Quality is set to RAW or RAW & JPEG, the image size for RAW images is automatically set to L for optimal quality.

If SD card space is an issue, you can set it to Small.

Aspect ratio:

You can choose 3:2 (which uses the full sensor surface), 4:3, 1:1 or 16:9 (crop but a more broad view). Leave as is at 3:2, you can always crop your pictures later.

Quality:

Do you edit your pictures on your desktop? If so, set to RAW or RAW+jpeg. A RAW file saves all information the camera pixels register during shooting and will make for better quality images if you want to edit in something like Adobe Lightroom.

A RAW file saves all information the camera pixels register during shooting and will make for better quality images if you want to edit in something like Adobe Lightroom.
A jpeg is a compressed image (available in FINE (larger) and STANDARD (smaller, less quality) which takes up less space on your SD card but is less suited for editing afterward. Jpeg images will also have in-camera noise reduction applied, something you might or might not want to take care of yourself later, depending on your use.

Jpeg images will also have in-camera noise reduction applied, something you might or might not want to take care of yourself later, depending on your use.

Img. Size (dual REC)

Selects the size of still images to be shot while recording movies. Only Jpeg.

  • L: 17M
  • M: 7.5M
  • S: 4.2M
Quality (dual Rec)

Selects the quality of still images to be shot while recording movies. Only Jpeg.

  • Extra fine
  • Fine
  • Standard

(MENU → Camera Settings → page 2)

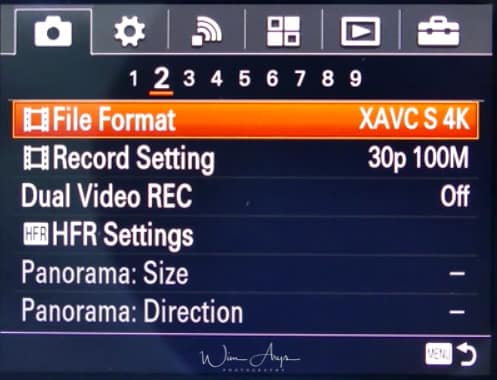

Menu camera icon page 2



File format (for movies)

Selects the movie file format.

  • XAVC S 4K: Records high-definition movies in XAVC S 4K. This format supports a higher bit rate. Audio: LPCM
  • AVCHD HD (default setting): Records high-definition movies in XAVC S HD. This format supports a higher bit rate. Audio: LPCM
  • AVCHD: Records HD movies in AVCHD format. This file format is suitable for high-definition TV. Audio: Dolby Digital
  • MP4: Records mp4 (AVC) movies. This format is suitable for playback on smartphones or tablets, web uploads, email attachments, etc. Audio: AAC.

Note that when recording XAVC S format movies, you should use the following memory cards:

  • SDXC memory card (64 GB or more and Class 10 or faster)
  • SDXC memory card (64 GB or more and UHS-I-compatible)
  • Memory Stick XC-HG Duo media
Record setting (also for movies)

You can choose the quality of recorded video here. You can change the image size, frame rate, and image quality for movie recording. The higher the bitrate, the higher the image quality. If you’re not familiar with this, leave as is.

When File Format is set to XAVC S 4K and HD:

  • This records high-definition movies by converting them to MP4 file format using the MPEG-4 AVC/H.264 codec.

When File Format is set to AVCHD:

  • 60i/50i: Movies are recorded at approximately 60 fields/sec (for 1080 60i-compatible devices) or 50 fields/sec (for 1080 50i-compatible devices), in interlaced mode, with Dolby Digital audio, in AVCHD format.
  • 24p/25p: Movies are recorded at approximately 24 frames/sec (for 1080 60i-compatible devices) or 25 frames/sec (for 1080 50i-compatible devices), in progressive mode, with Dolby Digital audio, in AVCHD format.
  • 60p/50p: Movies are recorded at approximately 60 frames/sec (for 1080 60i-compatible devices) or 50 frames/sec (for 1080 50i-compatible devices), in progressive mode, with Dolby Digital audio, in AVCHD format.

When  File Format is set to MP4:

  • Movies shot are recorded in MPEG-4 format, at approximately 60 frames/sec (for 1080 60icompatible devices), approximately 50 frames/sec (for 1080 50i-compatible devices), approximately 30 frames/sec (for 1080 60i-compatible devices) or approximately 25 frames/sec (for 1080 50i-compatible devices), in progressive mode, with AAC audio, MP4 format.

Menu items details:

When File Format is set to XAVC S 4K:

  • 30p 100M/25p 100M: Records the movies in 3840 × 2160 (30p/25p). Bit-rate: Approx. 100 Mbps
  • 30p 60M/25p 60M: Records the movies in 3840 × 2160 (30p/25p). Bit-rate: Approx. 60 Mbps
  • 24p 100M: Records the movies in 3840 × 2160 (24p). This produces a cinema-like atmosphere. Bit-rate: Approx. 100 Mbps
  • 24p 60M: Records the movies in 3840 × 2160 (24p). This produces a cinema-like atmosphere. Bit-rate: Approx. 60 Mbps

When File Format is set to XAVC S HD:

  • 60p 50M/50p 50M: Records the movies in 1920 × 1080 (60p/50p). Bit-rate: Approx. 50 Mbps
  • 30p 50M/25p 50M: Records the movies in 1920 × 1080 (30p/25p). Bit-rate: Approx. 50 Mbps
  • 24p 50M: Records the movies in 1920 × 1080 (24p). This produces a cinema-like atmosphere. Bit-rate: Approx. 50 Mbps
  • 120p 100M/100p 100M: Records 1920 × 1080 (120p/100p) size movies at a high speed. Movies can be recorded at 120 fps/100 fps. You can create smoother slow-motion images using compatible editing equipment. Bit-rate: Approx. 100 Mbps
  • 120p 60M/100p 60M: Records 1920 × 1080 (120p/100p) size movies at a high speed. Movies can be recorded at 120 fps/100 fps. You can create smoother slow-motion images using compatible editing equipment. Bit-rate: Approx. 60 Mbps

When  File Format is set to AVCHD:

  • 60i 24M(FX)*: 50i 24M(FX)**: Records high image quality movies of 1920 × 1080 (60i/50i). Bit-rate: Approx. 24 Mbps (Max.)
  • 60i 17M(FH) (default setting)*: 50i 17M(FH) (default setting)**: Records standard image quality movies of 1920 × 1080 (60i/50i). Bit-rate: Approx. 17 Mbps (Avg.)
  • 60p 28M(PS)*:
  • 50p 28M(PS)**: Records the highest image quality movies of 1920 × 1080 (60p/50p). Bit-rate: Approx. 28 Mbps (Max.)
  • 24p 24M(FX)*: 25p 24M(FX)**: Records high image quality movies of 1920 × 1080 (24p/25p). This produces a cinema-like atmosphere. Bit-rate: Approx. 24 Mbps (Max.)
  • 24p 17M(FH)*: 25p 17M(FH)**: Records standard image quality movies of 1920 × 1080 (24p/25p). This produces a cinemalike atmosphere. Bit-rate: Approx. 17 Mbps (Avg.)

When [ File Format] is set to MP4:

  • 1440×1080 12M (default setting): Records movies of 1440 × 1080. Bit-rate: Approx. 12 Mbps (Avg.)
  • VGA 3M: Records movies of VGA size. Bit-rate: Approx. 3 Mbps (Avg.) *
  • Notes:* 1080 60i (NTSC) compatible device,  ** 1080 50i (PAL) compatible device

General notes:

  • 60p/50p movies can be played back only on compatible devices.
  • Movies recorded with the [60p 28M(PS)]/[50p 28M(PS)]/[60i 24M(FX)]/[50i 24M(FX)]/ [24p 24M(FX)] /[25p 24M(FX)] setting in [ Record Setting] are converted by PlayMemories Home in order to create an AVCHD recording disc. This conversion can take a long time. Also, you cannot create a disc in the original image quality. If you want to keep the original image quality, store your movies on a Blu-ray Disc.
  • To play back 24p/25p movies on a TV, the TV must be compatible with the 24p/25p formats. If the TV is not compatible with the 24p/25p format, 24p/25p movies will be output as 60i/50i movies.
  • You cannot create discs with movies recorded with [XAVC S] or [MP4] recording settings using PlayMemories Home.
Dual Video Rec

Allows you to simultaneously record an XAVC S movie and an MP4 movie, or an AVCHD movie and an MP4 movie. On or Off.

HFR settings

By shooting with a higher frame rate than the recording format, you can record a smooth super-slow-motion movie.

  1. Set the mode dial to High Frame Rate. The HFR setting screen will be displayed.
  2. Select MENU→ Camera Settings→HFR Settings and select the desired settings for Record Setting, Frame Rate, Priority Setting, and REC Timing. You can adjust the desired exposure mode by selecting MENU→ camera Settings→High Frame Rate. You can set other shooting settings such as focus area, focus mode, and frame rate, and perform zooming on the HFR setting screen.
  3. Press the in the center of the control wheel. The HFR shooting screen will be displayed. To change the settings, press in the center once again to switch to the HFR setting screen.
  4. Press the MOVIE button. The camera will automatically start recording as soon as you finish shooting
Menu item details
  • HFR Record Setting: Selects the frame rate of the movie from 60p 50M/50p 50M, 30p 50M/25p 50M, and 24p 50M.
  • HFR Frame Rate: Selects the shooting frame rate from 240fps/250fps, 480fps/500fps, and 960fps/1000fps.
  • FFR Priority Setting: Select Quality Priority or Shoot Time Priority. If you select Shoot Time Priority, the recordable duration is longer than in Quality Priority mode.
  • HFR REC Timing: Selects whether to record a set amount of time after pressing the MOVIE button (Start Trigger), or to record for a set amount of time until you press the MOVIE button (End Trigger).

Krueger lion

Panorama size

(Only available when in panorama shooting mode) Size is selectable between standard and wide. Wide means your picture will cover a larger area. Set it to standard, having to scan an even broader area when making panoramas will take some experience with the camera to do efficiently.

Size is selectable between standard and wide. Wide means your picture will cover a larger area. Set it to standard, having to scan an even broader area when making panoramas will take some experience with the camera to do efficiently.

Set it to standard, having to scan an even broader area when making panoramas will take some experience with the camera to do efficiently.

Panorama direction

A panorama picture (only available in jpeg) is a composite of several images stitched together. When in this mode, you’ll see an arrow that guides you in what direction and speed you should pan the camera to take the sequential images that will be stitched together. You can choose the path in this menu (either, up, down, left or right).

You can make panoramas while scanning your camera up-down or left-right.So what is this all about? This might sound confusing at first, but this comes down to how you hold the Sony RX100 IV when shooting panoramas: either in portrait or landscape orientation.

(MENU → Camera Settings → page 3)

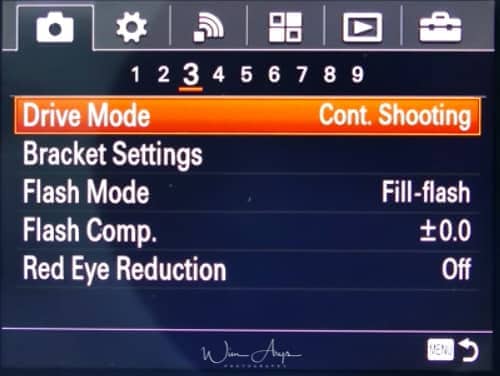

Menu camera icon page 3

Drive Mode

You can set the drive mode, such as continuous or self-timer shooting.

  • Single Shooting (default setting): Shoots one still image. Normal shooting mode.
  • Cont. Shooting: Shoots images continuously while you press and hold down the shutter button. Hi: takes about six images per second, Lo about 3
  • Self-timer: Shoots an image after 10 or 2 seconds. (selectable in sub menu) You can change the angle of the LCD screen and shoot images while monitoring the image on the screen.
  • Self-timer(Cont): Shoots a specified number of images continuously after 10 seconds or 2 seconds (selectable in the sub menu).
  • Cont. Bracket: Shoots images while holding the shutter button down, each with different degrees of brightness. (from 3 to 5 images with between .3 and 3 EV difference, selectable in the sub menu.) For processing as HDR on your PC.
  • Single Bracket: Shoots a specified number of images, one by one, each with a different degree of brightness. (from 3 to 5 images with between .3 and 3 EV difference, selectable in the sub menu) For processing as HDR on your PC.
  • WB bracket: Shoots a total of three images, each with a different color tone according to the selected settings for white balance, color temperature, and the color filter.  (3 images with either LO small changes or Hi large changes)
  • DRO Bracket: Shoots a total of three images, each at a different degree of D-Range Optimizer.
Bracket Settings

You can set the shooting order for exposure bracketing and white balance bracketing here.

Flash Mode
Flash off;

Turn the flash off, even when it is popped up.

Autoflash:

The flash works in dark environments or when shooting towards a bright light.

Fill-flash:

The flash works every time you trigger the shutter.

Slow sync:

Tells the camera to use a longer shutter speed along with a flash, and thus is better for night shots. In manual and shutter priority modes, there is no difference in flash power. But when using aperture priority, program, or auto, choosing slow sync tells the camera to use a longer shutter speed than it would ordinarily pick.What the slow sync flash mode actual does is first fire the flash for the subject exposure, then allow for a longer shutter speed that will allow for more ambient light to be captured by the sensor.

Rear Sync:

Capturing an image involves two shutter actions: one when the capture starts and on when it stops. Rear Sync tells the flash to fire right before the shutter closes. Moving objects will show a streak where they came from and a sharp image where they were at the end of the exposure. This conveys a sense of speed with moving objects. Rear Sync is a creative technique, if you’d like to know more about this type of photography, I’d suggest doing a Google search on ‘Rear Sync Flash Photography.’

 Flash compensation:

Especially when using Slow Sync or Rear Sync Flash modes, you might have to lower the power of the Flash to get a decently exposed image.

Red Eye Reduction:

This anti-Red Eye setting quickly fires the flash before your image capture starts, reducing the red-eye effect often seen when using a flash.

(MENU → Camera Settings → page 4)

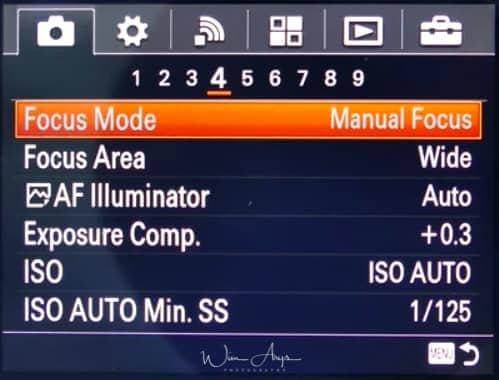

Menu camera icon page 4



Focus Mode

Here, you can select how the autofocus engine will behave when you half-press the shutter button. This functionality is partly dependent on what focus area you select (see next)

AF-S:

With a half-press of the shutter button, the camera will focus only once. Suitable for capturing stills.

AF-C:

The camera will continuously focus on any movement when you half-press the shutter button.

DMF:

The RX100 Mark 3 focuses on your subject and allows you to fine tune your focus area further using the manual focus ring on the lens.

When focussing manually or in DMF mode, you can set the camera to magnify a part of the screen so you can check focus. This sub-menu allows you to select the part of the image that will be magnified during shooting.

MF:

No autofocus is used, and you focus manually using the focus ring on the lens.

Focus area

You might think it is best to leave it on the factory ‘wide’ setting (as this uses all AF points), but for certain scenes, it is often better to use a zone or flexible spot to get it to focus on what you want.

Wide:

Wide focus area uses all focus points on the sensor. Ideal for action scenes where there is a lot of movement going on in your frame.

Center:

Focusses on whatever is centered in your images. A fail-proof way of getting the camera to focus on what you want. If you have any problems using the autofocus and are in a situation where you don’t want to miss any shots, revert to Center and just make sure you have your subject centered.

Flexible spot:

Flexible spot area selects a spot anywhere on the screen where the camera should focus. (similar to Center spot, except not.. in the center)  You can set it to small, medium or large. If you want to use this focus area, set it to medium or large, as the camera will struggle to find focus when set to small (except perhaps for close-up portraits where you’d want to focus on the iris of the eye)

Expandable flexible spot

If the Sony RX100 IV fails to focus on the single selected point, it uses the focus points around the flexible spot as the second priority area to achieve focus.

Lock-on AF:

When the shutter button is pressed and held halfway down, the RX100M3 tracks the subject within the selected autofocus area. Point the cursor to Lock-on AF on the Focus Area setting screen, then select the desired tracking start area using the left/right sides of the control wheel. You can move the tracking start area to a desired point by designating the area to be the flexible spot or expand flexible spot. On the Flexible Spot shooting screen, you can change the size of the AF range finder frame by rotating the control wheel.

AF Illuminator:

The AF illuminator is a little red light allowing the camera to focus more easily when the shutter button is pressed halfway. It automatically is switched off when you fully press the shutter. Leave it on.

Exposure Comp

(Also available in the Quick Menu, accessed by pressing the FN button):
If you find that your image is overexposed (for instance when you are shooting at large apertures for a shallow depth-of-field in bright daylight), you can tweak the exposure compensation here in a plus or minus 5 (exact EV dependent on next step) range.

ISO

You can select at which ISO value you’d like to capture your image or change the AutoISO range
I have this range set between 100-1600 as this range is virtually noise free, and I don’t like the ISO performance above 3200. If you’re a jpeg shooter (and use built-in Noise Reduction), you might think of using a higher top value (factory setting goes up to 12800).

ISO AUTO Min. SS

Probably one of the most powerful new features, you can now select when the camera will go to a higher ISO in order to get an appropriate shutter speed. Great for shooting moving subjects.

If you select ISO AUTO under Multi Frame NR when the shooting mode is P (Program Auto) or A (Aperture Priority), you can set the shutter speed at which the ISO sensitivity starts changing.

  • FASTER (Faster)/FAST (Fast): The ISO sensitivity will start to change at shutter speeds faster than [Standard], so you can prevent camera shake and subject blurring.
  • STD (Standard): The camera automatically sets the shutter speed based on the focal length of the lens.
  • SLOW (Slow)/SLOWER (Slower): The ISO sensitivity will start to change at shutter speeds slower than [Standard], so you can shoot images with less noise.
  • 1/32000―30″: The ISO sensitivity starts to change at the shutter speed you have set.

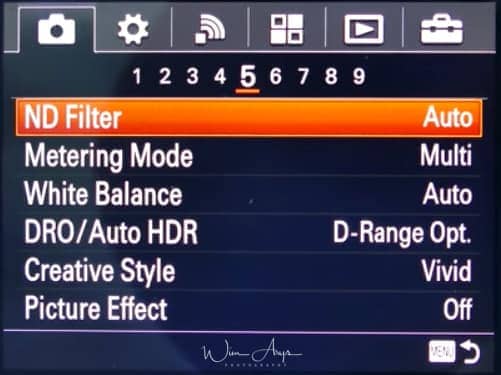

(MENU → Camera Settings → page 5)

Menu camera icon page 5



ND filter

From the Mark 3 onwards, the Sony comes with a built-in 3 stop ND filter. If you use an ND filter, the amount of light entering the camera is reduced. You can slow down the shutter speed and decrease the aperture value for a better exposure.

  • Auto (default setting): Automatically turns on the ND filter based on the shooting mode and brightness.
  • On: Always uses built-in ND Filter.
  • Off: Disables the ND Filter function.
Metering Mode

Metering mode refers to the way the camera reads the light and sets the exposure.
In multi, it considers the whole frame and sets exposure according to internal algorithms programmed in camera.
In spot or center, the camera only considers what is in that spot or the center (per example, if your subject is completely black, the camera will try to compensate by overexposing the image).

White Balance

You can either use:

  • Auto (default setting): The product automatically detects the light source and adjusts the color tones.
  • Daylight: The color tones are adjusted for the daylight. Shade: The color tones are adjusted for shadiness.
  • Cloudy: The color temperature is adjusted for a cloudy sky. Incandescent: The color temperature is adjusted for places under an incandescent lamp, or under bright lightings, such as in a photo studio.
  • Fluor.: Warm White: The color temperature is adjusted for warm white fluorescent lighting.
  • Fluor.: Cool White: The color temperature is adjusted for white fluorescent lighting.
  • Fluor.: Day White: The color temperature is adjusted for neutral white fluorescent lighting.
  • Fluor.: Daylight: The color temperature is adjusted for daylight fluorescent lighting.
  • Flash: The color temperature is adjusted for a flash.
  • Underwater Auto: The color temperature is adjusted for underwater shooting.
  • C.Temp./Filter: Adjusts the color tones depending on the light source. Achieves the effect of CC (Color Compensation) filters for photography.
  • Custom: Uses the white balance setting saved in [Custom Setup].
  • Custom Setup: Memorizes the basic white color under the light conditions for the shooting environment.
  • Underwater Auto (New in the Sony RX100 IV firmware update 2.0 (2017)) mainly for use with the Sony MPK-URX100A Underwater Housing.
Cappadocia
DRO/Auto HDR
DRO:

This stands for Dynamic range optimize and analyses the contrast of your scene in real-time. It produces an image with optimal brightness and recovered shadow detail. You can use this function even while the subject is moving or during the continuous shooting.

  • D-Range Optimizer: Auto (default setting): Corrects the brightness automatically.
  • D-Range Optimizer: Lv1 ― D-Range Optimizer: Lv5: Optimizes the gradation of a recorded image for each divided area. Select the optimization level from Lv1 (weak) to Lv5 (strong)
Auto HDR:

(not available for RAW captures) this feature Shoots three images with different exposures and then overlays the bright area of the underexposed image and the dark area of the over exposed image to create a picture with an extended range from highlight to shadow.
The highlight detail in auto HDR is better than that in DRO and with reduced noise. The shutter is released three times, so using this function for moving subjects is not recommended.

  • Auto HDR: Exposure Diff. Auto (default setting): Corrects the exposure difference automatically. Auto HDR: Exposure Diff. 1.0EV ―
  • Auto HDR: Exposure Diff. 6.0EV: Sets the exposure difference, based on the contrast of the subject. Select the optimal level between 1.0 EV (weak) and 6.0 EV (strong). For example, if you set the exposure value to 2.0 EV, three images will be composed of the following exposure levels; −1.0 EV, optimal exposure, and +1.0 EV
Creative Style

This menu setting allows you to select the desired image processing. You can adjust exposure (shutter speed and aperture) as you like with [Creative Style], unlike with [Scene Selection] where the product adjusts the exposure.

  • Standard (default setting): For shooting various scenes with rich gradation and beautiful colors.
  • Vivid: The saturation and contrast are heightened for shooting striking images of colorful scenes and subjects such as flowers, spring greenery, blue sky, or ocean views.
  • Portrait: For shooting the skin color in a soft tone, ideally suited for shooting portraits.
  • Landscape: The saturation, contrast, and sharpness are heightened for shooting vivid and crisp scenery. Distant landscapes also stand out more.
  • Sunset: For shooting the beautiful red of the setting sun.
  • Black & White: For shooting images in black and white monotone.
  • Sepia: For shooting images in sepia monotone.

Contrast, Saturation, and Sharpness can be adjusted for each Creative Style item. Select an item to be set by pressing the right/left side of the control wheel, then set the value using the top/bottom side of the control wheel.

  • Contrast: The higher the value selected, the more the difference of light and shadow is accentuated, and the bigger the effect on the image.
  • Saturation: The higher the value selected, the more vivid the color. When a lower value is selected, the color of the image is restrained and subdued.
  • Sharpness: Adjusts the sharpness. The higher the value selected, the more the contours are accentuated, and the lower the value selected, the more the contours are softened.
Picture Effect

Think of this menu as an Instagram app right in your camera, with all kinds of retro filters and effects. These are only available when quality is set to Jpeg (Not in RAW).

  • Off (default setting): Disables the Picture Effect function.
  • Toy Camera: Creates a soft image with shaded corners and reduced sharpness.
  • Pop Color: Creates a vivid look by emphasizing color tones.
  • Posterization: Creates a high contrast, abstract look by heavily emphasizing primary colors, or in black and white.
  • Retro Photo: Creates the look of an aged photo with sepia color tones and faded contrast.
  • Soft High-key: Creates an image with the indicated atmosphere: bright, transparent, ethereal, tender, soft.
  • Partial Color: Creates an image which retains a specific color, but converts others to black and white.
  • High Contrast Mono.: Creates a high-contrast image in black and white.
  • Soft Focus: Creates an image filled with a soft lighting effect.
  • HDR Painting: Creates the look of a painting, enhancing the colors and details.
  • Rich-tone Mono.: Creates an image in black and white with rich gradation and reproduction of details.
  • Miniature: Creates an image which enhances the subject vividly, with the background defocused considerably. This effect may often be found in pictures of miniature models.
  • Watercolor: Creates an image with ink bleed and blurring effects as if painted using watercolors.
  • Illustration: Creates an illustration-like image by emphasizing the outlines.

(MENU → Camera Settings → page 6)

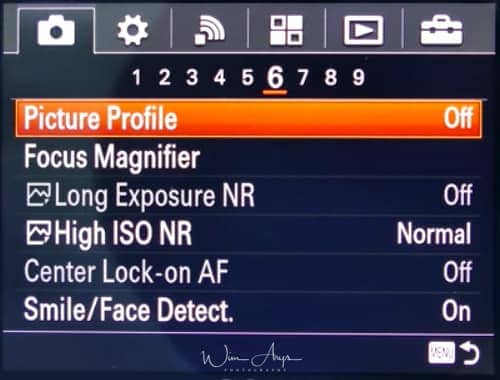

Menu camera icon page 6



Picture profile

Allows you to change the settings for the color, gradation, etc for movies.

Using the preset of picture profile

The default settings [PP1] through [PP7] for movies have been set in advance in the camera based on various shooting conditions.

  • PP1: Example setting using [Movie] gamma
  • PP2: Example setting using [Still] gamma
  • PP3: Example setting of natural color tone using the [ITU709] gamma
  • PP4: Example setting of a color tone faithful to the ITU709 standard
  • PP5: Example setting using [Cine1] gamma
  • PP6: Example setting using [Cine2] gamma
  • PP7: Example setting using [S-Log2] gamma
Items of the picture profile
  • Black Level Sets the black level. (–15 to +15)
  • Gamma Selects a gamma curve. Movie: Standard gamma curve for movies Still: Standard gamma curve for still images Cine1: Softens the contrast in dark parts and emphasizes gradation in bright parts to produce a relaxed color movie. (equivalent to HG4609G33) Cine2: Similar to [Cine1] but optimized for editing with up to 100% video signal. (equivalent to HG4600G30) ITU709: Gamma curve that corresponds to ITU709. ITU709(800%): Gamma curve for confirming scenes on the assumption of shooting using [SLog2]. S-Log2: Gamma curve for [S-Log2]. This setting is based on the assumption that the picture will be processed after shooting.
  • Black Gamma Corrects gamma in low-intensity areas. Range: Selects the correcting range. (Wide / Middle / Narrow) Level: Sets the correcting level. (-7 (maximum black compression) to +7 (maximum black stretch))
  • Knee Sets knee point and slope for video signal compression to prevent over-exposure by limiting signals in high-intensity areas of the subject to the dynamic range of your camera. When selecting [Still], [Cine1], [Cine2], [ITU709(800%)], [S-Log2] in [Gamma], [Knee] is set to [Off] if [Mode] is set to [Auto]. To use functions in [Knee], set [Mode] to [Manual]. Mode: Selects auto/manual settings. Auto: The knee point and slope are set automatically. Manual: The knee point and slope are set manually. Auto Set: Settings when [Auto] is selected for [Mode]. Max Point: Sets the maximum point of the knee point. (90% to 100%) Sensitivity: Sets the sensitivity. (High/Mid/Low) Manual Set: Settings when [Manual] is selected for [Mode]. Point: Sets the knee point. (75% to 105%) Slope: Sets the knee slope. (-5 (gentle) to +5 (steep))
  • Color Mode Sets type and level of colors. Movie: Suitable colors when [Gamma] is set to [Movie]. Still: Suitable colors when [Gamma] is set to [Still]. Cinema: Suitable colors when [Gamma] is set to [Cine1]. Pro: Similar color tones to the standard image quality of Sony professional cameras (when combined with ITU709 gamma) ITU709 Matrix: Colors corresponding to ITU709 standard (when combined with ITU709 gamma) Black & White: Sets the saturation to zero for shooting in black and white. S-Gamut: Setting based on the assumption that the pictures will be processed after shooting. Used when [Gamma] is set to [S-Log2].
  • Saturation Sets the color saturation. (-32 to +32)
  • Color Phase Sets the color phase. (-7 to +7)
  • Color Depth Sets the color depth for each color phase. This function is more effective for chromatic colors and less effective for achromatic colors. The color looks deeper as you increase the setting value towards the positive side, and lighter as you decrease the value towards the negative side. This function is effective even if you set [Color Mode] to [Black & White]. [R] -7 (light red) to +7 (deep red) [G] -7 (light green) to +7 (deep green) [B] -7 (light blue) to +7 (deep blue) [C] -7 (light cyan) to +7 (deep cyan) [M] -7 (light magenta) to +7 (deep magenta) [Y] -7 (light yellow) to +7 (deep yellow)
  • Detail Sets items for [Detail]. Level: Sets the [Detail] level. (-7 to +7) Adjust: The following parameters can be selected manually. Mode: Selects auto/manual setting. (Auto (automatic optimization) / Manual (The details are set manually.)) V/H Balance: Sets the vertical (V) and horizontal (H) balance of DETAIL. (-2 (off to the vertical (V) side) to +2 (off to the horizontal (H) side)) B/W Balance: Selects the balance of the lower DETAIL (B) and the upper DETAIL (W). (Type1 (off to the lower DETAIL (B) side) to Type5 (off to the upper DETAIL (W) side)) Limit: Sets the limit level of [Detail]. (0 (Low limit level: likely to be limited) to 7 (High limit level: unlikely to be limited))
  • Crispning: Sets the crispening level. (0 (shallow crispening level) to 7 (deep crispening level)) Hi-Light Detail: Sets the [Detail] level in the high-intensity areas. (0 to 4)
  • Copy Copies the settings of the picture profile to another picture profile number. MENU → (Camera Settings) → [Picture Profile] → [Copy]
  • Reset Resets the picture profile to the default setting. You cannot reset all picture profile settings at once. MENU → (Camera Settings) → [Picture Profile] → [Reset]
Focus Magnifier

Another new and quite handy feature if you want to check if your image is in focus. It means that you can check the focus by enlarging the image before shooting. Great for shooting in manual focus or DMF. You can also set how long the magnified image will be shown in the Focus Magnif. Time setting. (custom settings)/

Press on the center of the control wheel to enlarge the image and select the position you want to enlarge using up/down/left/right side of the control wheel. You can change the magnifier scaling in two steps by pressing in the center, and close the focus magnifier mode and return to the normal shooting display by pressing three times

You can change the magnifier scaling in two steps by pressing in the center, and close the focus magnifier mode and return to the normal shooting display by pressing three times.

Long exposure NR

Yes, finally it’s here for Sony RX100 users, Long exposure Noise Reduction. This kicks in when you set the shutter speed to 1/3 second or longer. Noise reduction is turned on for the duration that the shutter is open. With the function turned on, the grainy noise typical of long exposures is reduced.

High ISO NR

Here you can select the amount of noise reduction applied to images with high ISO settings (when quality is set to jpeg). As Sony has rather aggressive noise reduction, I would chance it to Low. (if not, you run the risk of getting paint-like, smeared images at higher ISO values)

Center Lock-on AF

This is a very powerful autofocus feature. When turned ON, it allows you to track a subject. In the iAuto mode, you can access this feature (when turned ON and the camera is set to AF) by pressing the Center button of the multi-controller. You’ll see a square on your screen, then center your desired tracking subject and the camera will continue to track it, even when it exits your frame and reappears.

Smile/Face Detect

This is another powerful feature. It can be set to automatically detect on focus on (registered) faces and enable a function called Smile Shutter. When the latter is enabled, the camera will automatically capture an image when a smile is detected. Did I hear you say Selfie? Yes, it’s the ultimate selfie tool, along with the pivoting screen.

(MENU → Camera Settings → page 7)

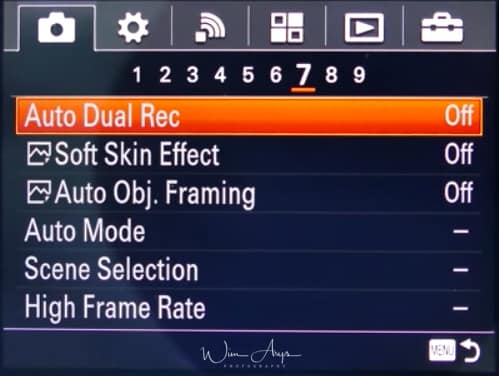

Menu camera icon page 7

Auto Dual Rec.

Sets whether or not to automatically shoot still images when shooting movies. Shoots when impressive compositions, including people, are detected. This function may also record versions of the automatically shot images that have been trimmed into optimal compositions. When a trimmed image is recorded, both the image before trimming and the trimmed image will be recorded.

Soft skin effect

Sets the effect used for shooting the skin smoothly in the Face Detection function. I don’t like the results, so on my camera, it is turned off

Auto Object Framing

When enabled, the Sony RX100 IV will automatically crop your captured image to what it deems best. Meaning it will cut the picture for a nicer composition. Only available for Jpegs, though, a nice feature if you don’t want to bother too much with the technical side of photography.

Auto Mode
Scene Selection

This allows you to shoot with preset settings according to the scene. To change the scene, simply rotate the control wheel on the shooting screen and select a new scene.

  • Portrait: Blurs background and sharpens the subject. Accentuates the skin tones softly.
  • Sports Action: Shoots a moving subject at a fast shutter speed so that the subject looks as if it is standing still. The product shoots images continuously while the shutter button is pressed.
  • Macro: Shoots close-ups of the subjects, such as flowers, insects, food, or small items.
  • Landscape: Shoots the entire range of a scenery in sharp focus with vivid colors.
  • Sunset: Shoots the red of the sunset beautifully.
  • Night Scene: Shoots night scenes without losing the dark atmosphere.
  • Hand-held Twilight: Shoots night scenes with less noise and blur without using a tripod. A burst of shots are taken, and image processing is applied to reduce subject blur, camera shake, and noise.
  • Night Portrait: Shoots night scene portraits using the flash. The flash does not pop-up automatically. Pop-up the flash before shooting.
  • Anti Motion Blur: Allows you to shoot indoor shots without using the flash and reduces subject blur. The product shoots burst images and combines them to create the image, reducing subject blur and noise.
  • Pet: Allows you to shoot images of your pet with the best settings.
  • Gourmet: Allows you to shoot food arrangements in delicious and bright colors.
  • Fireworks: Allows you to shoot images of fireworks in all their splendor.
  • High Sensitivity: Allows you to shoot still images even in dark locations without using the flash, and reduces subject blur. Also allows you to shoot dark movie scenes more brightly
  • Movie
High Frame rate

You can select the exposure mode for HFR shooting based on the subject and effect you want.

Either:

  • Program Auto
  • Aperture Priority
  • Shutter Priority
  • Manual Exposure
(MENU → Camera Settings → page 8)

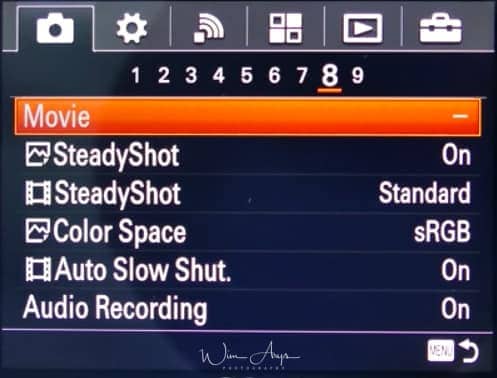

Menu camera icon page 8

Movie

You can adjust the shutter speed or aperture value to your desired settings for recording movies. You can also check the image angle before shooting.

  • Program Auto: Allows you to shoot with the exposure adjusted automatically (both the shutter speed and the aperture value).
  • Aperture Priority: Allows you to shoot after adjusting the aperture value manually.
  • Shutter Priority: Allows you to shoot after adjusting the shutter speed manually.
  • Manual Exposure: Allows you to shoot after adjusting the exposure (both the shutter speed and the aperture value) manually
Steadyshot (stills)

Sets whether or not to use the SteadyShot (also known as image stabilization) function for photography. Steadyshot allows you to take sharp pictures at longer shutter speeds (say on a cloudy day). It stabilizes your image and is a very powerful feature. Set it to ON, except when shooting on a tripod.

Zeiss Batis 85mm f/1.8 image example
SteadyShot (movies)

Sets SteadyShot when shooting movies.

Here you have three options:

  • Intelligent Active: Provides the most powerful SteadyShot effect. I set it to this.
  • Active (default setting): Provides a more powerful SteadyShot effect.
  • Standard: Reduces camera shake under stable movie shooting conditions.
Color Space

You can choose between Standard and Adobe (extended color range)RGB. If you don’t know what this means, leave it to standard.

Auto Slow Shutter (movie mode)

Sets whether to adjust the shutter speed automatically during video recording in case if the subject is dark/ Set to ON.

Audio Recording

You can switch off audio recording in movie mode.

(MENU → Camera Settings → page 9)

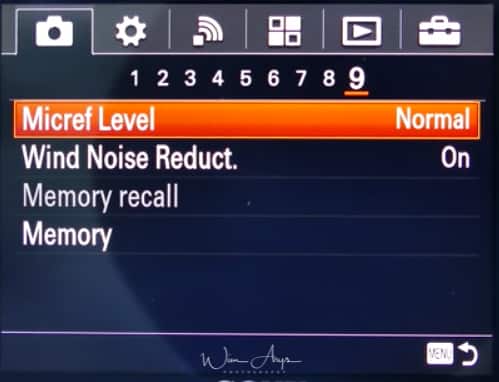

Menu camera icon page 9Micref Level

You can select the microphone level for movie recording to Normal (for dialogue) or Low (for concerts etc).

Wind noise reduct.

Sets whether or not to reduce wind noise during movie recording.

Memory Recall

Allows you to shoot an image after recalling often-used modes or camera settings registered in advance.

  • Set the mode dial to MR (Memory recall).
  • Press the left/right side of the control wheel or turn the control wheel to select the desired number, then press on the center
  • You can also recall registered modes or settings by selecting MENU → (Camera Settings) → Memory recall.
Memory

Allows you to register up to 3 often-used modes or product settings in the product. You can recall the settings using just the mode dial.

Items that can be registered:

  • Shooting mode
  • Aperture (F number)
  • Shutter speed
  • Camera Settings
  • Optical zoom scale

To recall registered settings: Set the mode dial to MR, then press the right/left side of the control wheel or turn the control wheel to select the desired memory number.

To change registered settings: Change the setting to the desired one and re-register the setting to the same mode number.

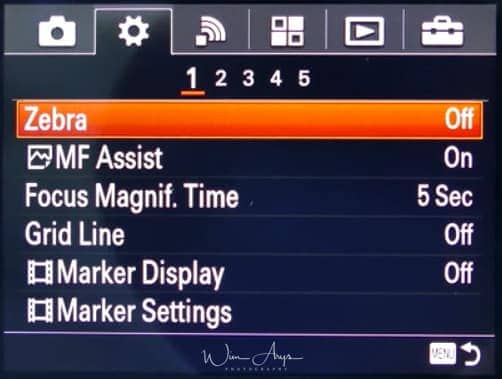

(MENU → Custom settings (wheel) → page 1)

Menu Wheel icon page 1

Zebra

The zebra function shows a zebra pattern on the screen while shooting in any area that is in danger of highlight clipping. You can switch this OFF or anywhere in a range between 70 and 100.The Zebra Pattern is a highlight warning indicator that is common in video cameras. It does not control exposure but just warns you that your highlights are blown out. It is not recorded into the resulting image.I have it set halfway at around 75, and it is a very useful indication of correct exposure of the full picture. As I capture in RAW, I am very careful not to have any highlight clipping, to be able to recover highlights in Lightroom possibly entirely.

MF assist

This works in conjunction with the Focus Magnifier on Page 5 of the camera settings. You might remember that you can select the area to magnify there when using manual focus (MF). MF assist will need to be turned on if you want to use this feature.

Focus Magnif Time

You can set how long to hold the magnified area during MF assist. 2 sec, 5 seconds or no limit. 2 seconds is how I have it set up.

Grid Line

Having a grid line on your screen is a helpful aide for the composition of your image.
The human brain is hard-wired to recognize the structure, and most people find a well-composed image more eye-pleasing.
During photography history, rules have been developed on how to compose the different elements best within a scene. Many landscapes you’ll see have the horizon run through the middle of the image for instance, but this is just composition in its simplest form. Many photographers with a thorough understanding of these techniques go far beyond that.
A good starting point is using the in-camera grid to make your brain aware of the possibilities in composition.
The Rules of 3rds, Square and Diag +square are available in the Sony Alpha ILCE-5100.

Marker display (for movies)

Sets whether or not to display markers set using [ Marker Settings] on the monitor while shooting movies.

Marker settings (for movies)

Sets the markers to be displayed while shooting movies. You can display all the markers at the same time.

  • Center: Sets whether or not to display the center marker in the center of the shooting screen. Off / On
  • Aspect: Sets the aspect marker display. Off / 4:3 / 13:9 / 14:9 / 15:9 / 1.66:1 / 1.85:1 / 2.35:1
  • Safety Zone: Sets the safety zone display. This becomes the standard range that can be received by a general household TV. Off / 80% / 90%
  • Guideframe: Sets whether or not to display the guide frame. You can verify whether the subject is level or perpendicular to the ground. Off / On

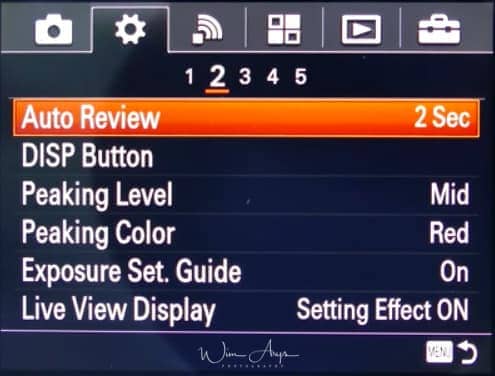

MENU – Custom Settings – page 2

Menu Wheel icon page 2

Auto Review

Select the amount of time the camera displays your image directly after capturing the image. 10, 5 and 2 sec is available, or you can turn this feature OFF if it annoys you.

Disp button

Selects the functionality (what is shown) on the screen when you press the DISP button (on the control wheel). You can choose Graphic Display, all info; no dips info and histogram.

Peaking Level
  • Peaking Level is a manual focusing aid that works when you have your camera set to MF or DMF.
  • You’ll see a type of noise outlining the parts of your image where the focus lies; you can adjust the sensitivity to high, mid or low.
  • Which setting is best depends on what lens you use, as with a sharper lens it can be configured to low, while more soft lenses benefit from a medium or high setting to clearly visualize what you’re focusing on.
Peaking Color

You can choose the color of this Peaking between Red, white and yellow. I have it set to red, as this contrasts nicely with most scenes you capture.

Exposure set guide

Sets the guide displayed when exposure settings are changed in the shooting screen.  Excellent tool when you’re getting to know the functionality of your new camera. If you’re familiar with Sony’s feature, turn it OFF.

Live view Display

Live view display allows you to see the image you’re going to capture with the settings you have dialed in like aperture and shutter speed. Some users report easier auto-focussing in low-light when it’s turned OFF, and you’d need to turn it off when using external flashes too that can’t be used with Sony’s TTL (through the lens) functionality.

MENU – Custom Settings – page 3

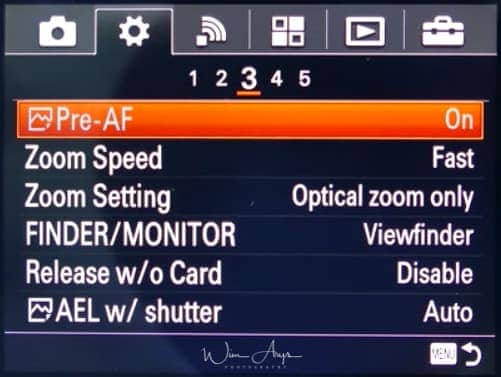

Menu Wheel icon page 3

Pre AF

When pre-AF is set to ON, the camera will continuously focus, even without half-pressing the shutter button. This can be draining to the battery, especially when using some lenses like the Zeiss Touit range. Set it to OFF.

Many People prefer to set Pre-AF off. This to prevent the camera from constantly trying to acquire focus without pressing the shutter button. It also saves battery life.

Zoom speed

Sets the zoom speed of the camera’s zoom lever. The Zoom Speed settings are also used when you are zooming with a remote controller.

  • Normal: Sets the zoom speed of the zoom lever to normal.
  • Fast: Sets the zoom speed of the zoom lever to fast.
Zoom settings

Set to Optical zoom only, using the optical zoom capabilities of your lens. If you set this to digital zoom, the camera will be basically cropping pixels out.

Finder/Monitor

Sets the method for switching the display between Electronic Viewfinder and the screen.

  • Auto (default setting): When you look into the Electronic Viewfinder, the display is switched to the Electronic Viewfinder automatically.
  • Viewfinder: Switch between the Electronic Viewfinder display and the screen display by pushing up/down the pop-up finder. When the Electronic Viewfinder is pushed down, the image is displayed only on the screen. When the Electronic Viewfinder is pushed up, the screen is turned off and the image is displayed only in the Electronic Viewfinder.
Release w/o card

Basically telling the camera not to engage the shutter when you don’t have a memory card inserted. Set to on.

AEL with shutter

Selects whether to fix exposure automatically when you press the shutter button halfway down. Leave ON.

  • Auto (default setting): Fixes the exposure after adjusting the focus automatically when you press the shutter button halfway down when [Focus Mode] is set to [Single-shot AF]. When [Focus Mode] is set to [Automatic AF], and the product determines that the subject is moving, or you shoot burst images, the fixed exposure is canceled.
  • On: Fixes the exposure when you press the shutter button halfway down.
  • Off: Does not fix the exposure when you press the shutter button halfway down. Use this mode when you want to adjust focus and exposure separately.

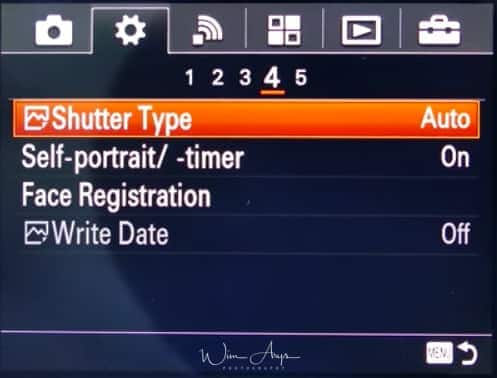

MENU – Custom Settings – page 4

Menu Wheel icon page 4



Shutter type (for stills)

You can set whether to shoot with a mechanical shutter or an electronic shutter.

  • Auto: The shutter type will automatically switch based on the shooting conditions and shutter speed.
  • Mechanical Shut.: Shoot with the mechanical shutter only. (Flash will work on Shutter speed: BULB to 1/2000 second)
  • Electronic Shut.: Shoot with the electronic shutter only. (Flash will work on Shutter speed: 30 seconds to 1/32000 second)
Self-portrait timer

You can change the angle of the LCD screen and shoot images while monitoring the image on the screen.

  1.  Tilt the LCD screen 180° upward, and then point the lens at yourself.
  2. Press the shutter button. The product starts the self-timer shooting after three seconds. Hint If you want to use another Drive Mode than the 3-second self-timer mode, first set [Selfportrait/ -timer] to [Off], then tilt the monitor upward approx. 180 degrees.
  3. Hint If you want to use another Drive Mode than the 3-second self-timer mode, first set Self-portrait/ -timer to Off, then tilt the monitor upward approx. 180 degrees.
 RNI ALL FILMS 4.0
Face Registration

This is where you can register faces; it works only when face recognition is set to ON (registered faces). This is an interesting functionality, as you can register faces of your subject (like at a wedding the bride and groom) and the camera will automatically detect these registered faces and give autofocus priority to them. You can register up to 8 faces (by taking a picture of them within this menu) and set a priority order.
Works well, and helps to get the right people in-focus in busy shots.

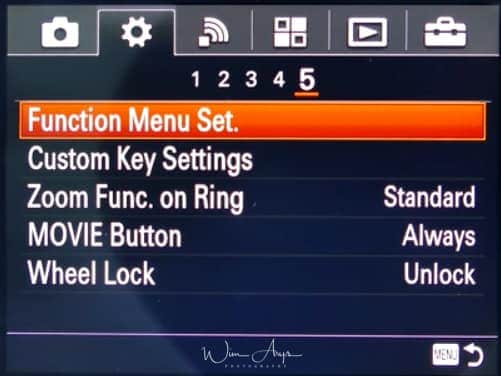

MENU – Custom Settings – page 5

Menu Wheel icon page 5

Function menu set

You can assign the functions to be called up when you press the Fn (Function) button.

Custom keys setting

Assigning functions to the various keys allows you to speed up operations by pressing the appropriate key when the shooting information screen is displayed.

Zoom Func. on ring

Sets the zoom functions when using the control ring to change zoom scales. The settings for Zoom Func. on Ring are valid only when auto-focusing.

  • Standard (default setting): Zooms in/out smoothly when you operate the zoom by turning the control ring.
  • Step: Zooms in/out at certain angle steps when you operate the zoom by turning the control ring.
Movie button

Sets whether or not to activate the MOVIE button.

  • Always (default setting): Starts movie recording when you press the MOVIE button in any mode.
  • Movie Mode Only: Starts movie recording when you press the MOVIE button only if the shooting mode is set to Movie mode.
Wheel lock

You can set whether the wheel will be locked by pressing and holding the Fn (Function) button.

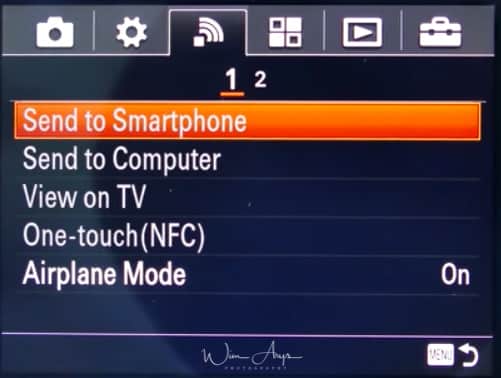

MENU – Wireless functionality – page 1

Wireless functionality - page 1

Send To Smartphone
  • You can send one or several images directly to your wireless device (phone or tablet) by pressing this button.
  • You can either decide to choose which images you want to transfer on the camera or on the wireless device (via the Sony PlayMemories app, available for free in the apple or android store).
  • You’ll have to connect the camera via Wifi first (it makes a Wifi access point), using the instruction on the Sony RX100 IV screen.
  • It works just like connecting to any other access point with your phone or tablet.
  • You should do this as quickly as possible, just to get it out of the way.
  • When your phone has wirelessly connected to the camera once, and you’ve entered the password, it will remember this, and make it a lot faster to connect later.
Send to Computer

You’ll need to physically connect the computer to the camera using the supplied USB cable, and you can push selected pictures to your Sony PlayMemories desktop software (installed from the CD or downloaded from their website). This can even be set up to continue pushing images after the camera has turned off.

View On TV

If you have a Wifi-enabled TV, you can view images and slideshows directly from your camera through your home wireless network.

One Touch NFC

Enables Quick, one-touch connection (as opposed to first accessing the camera’s wireless network and then navigating to the Playmemories app) with NFC (near-field communication) capable devices.

I have not tried this (as my iPhone does not have NFC) but it looks a lot easier to use.

Airplane Mode

Disables all wireless functionality, just like airplane mode does on your phone.

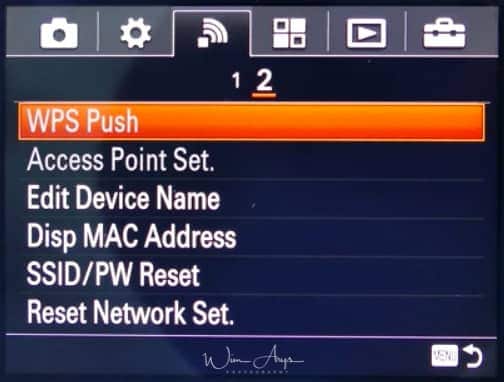

MENU – Wireless functionality – page 2

Wireless functionality - page 2

WPS Push

If your access point has the WPS button, you can register the access point to the camera easily by pushing the WPS button.

Access Point Set

Here you can setup an access point for your camera to the internet.

It enables the Sony RX100 II to install PlayMemories apps from the internet directly. Works just like setting an access point (WiFi connection) on your phone.

Edit Device name

If you wish, you can change the name of the Device Access point perhaps to make it easier to identify which A6000 is yours in certain situations.

Disp MAC. address

Displays the MAC address of your Sony RX100M3.

SSID/PW reset

The RX100 III  shares the connection information for Send to Smartphone and Smart Remote Embedded with a device that has permission to connect. If you want to change the device that is permitted to connect, reset the connection information.

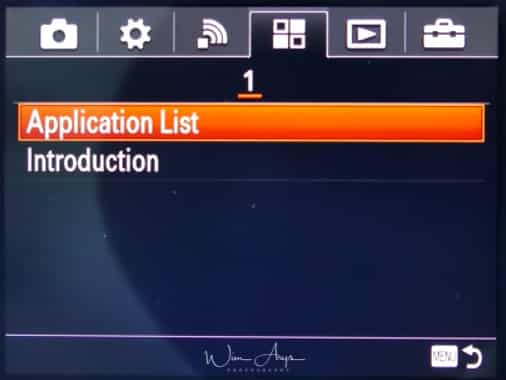

MENU – Playmemories settings- page 1

Applications playmemories page 1

Application List

You’ll find The Smart remote control camera app (wich allows you to use your phone as a remote control via PlayMemories phone app for iPhone and Android) and the Playmemories Camera app here.

You can access your online PlayMemories account here, or create an account (once you’ve set up your camera connection with your Wifi network).

Bulb Exposure with the Sony A5100 and A7s

You’ll also be able to download new apps available for purchase in the Sony Playmemories online app store like the Time-lapse and smooth reflection app.

If you do not want to connect your camera to the internet, you can always install new apps (and updates) if you connect the camera to your Mac or PC with the supplied USB cable, using the Sony PlayMemories desktop application.

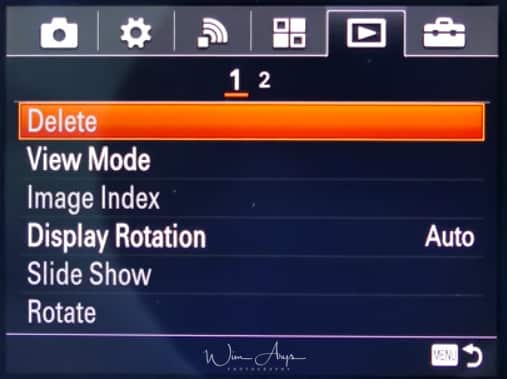

MENU – playback options – page 1

Menu Playback icon page 1

Delete

Delete on or multiple images stored on your SD card.

View Mode

select how the camera will arrange captured images in the viewing browser.

Image Index

Select whether you want the image browser to display 12 (larger) or 30 (smaller) images per page.

Display rotation

Select whether you want the camera to automatically rotate images when you rotate the camera or not.

Slide Show

Select whether you want the camera to repeat slideshows when all pictures are viewed or not, and choose the interval between slides.

Rotate

Change the orientation of images in-camera.

SEL2470GM

MENU – playback options – page 2

Menu Playback icon page 2

Enlarge

Select an image and enlarge a portion of that image. Useful for checking details and focus.

4K Still Image PB

Outputs still images in 4K resolution to an HDMI-connected TV that supports 4K.

Protect

Protect images (selectable or per date) from accidentally being erased.

Motion Interval ADJ

Change the interval of the image tracking of the subject’s motion in high-speed, like a stroboscopic image.

Specify Printing

Specify Printing is a feature that allows images to be marked for printing later. Registered images are displayed with the DPOF mark. (DPOF stands for Digital Print Order Format)

Beauty Effect

Allows you to apply the Beauty Effect to retouch the still image of a person and make it look better, for example, by retouching it for smoother skin, larger eyes, and whiter teeth. You can set the effects from level 1 to level 5. An image on which the Beauty Effect is used is saved as a new file. The original image is retained as it is.

  • Skin Toning: Adjusts the skin color as you like.
  • Skin Smoothing: Removes age spots and wrinkles from the skin.
  • Shine Removal: Reduces the look of oily skin. Adjusts the skin color as you like.
  • Eye Widening: Enlarges the eyes of the subject.
  • Teeth Whitening: Whiten the teeth of the subject.

To use two or more effects with Beauty Effect one after another, first apply an effect to the image, then select another effect using.

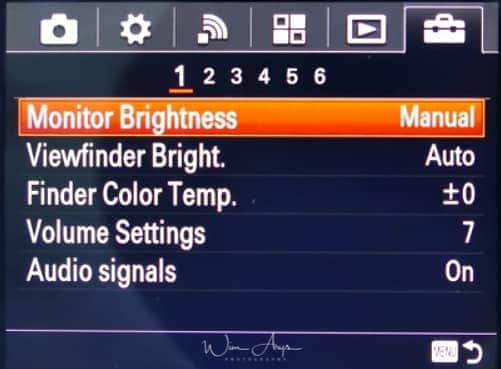

MENU – Setup – page 1

(briefcase) general options - page 1

Monitor Brightness

Manually set the Monitor brightness (recommended leave to zero) or change to a brighter setting for Sunny Weather.

Viewfinder Bright.

When using an electronic viewfinder, you can adjust the brightness of the electronic viewfinder according to the surrounding environment. Leave it on Auto.

Finder Color Temp.

Adjusts the color temperature (-2 +2) of the electronic viewfinder.

Volume settings

Change the playback volume for recorded video or demos.

Audio Signals

You can turn off audio signals like the beep when te camera achieves focus. Useful if you want a more stealthy operation (although you’ll still hear the second curtain shutter).

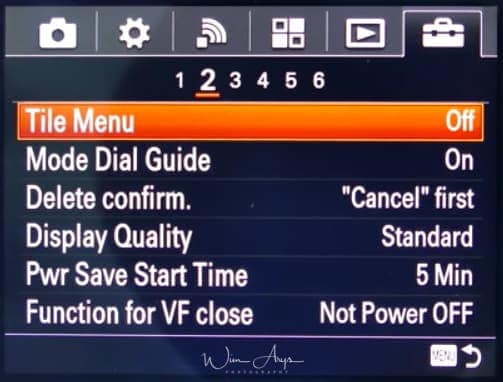

MENU – Setup – page 2

(briefcase) general options - page 2

Title Menu

choose between tiles or a tiled front page when accessing the MENU or a direct tab style menu layout

Mode Dial Guide

You can display the description of a shooting mode when you turn the mode dial and change the settings available for that shooting mode. Handy when you are learning how to use the RX100 II.

Delete confirm

You can set whether Delete or Cancel is selected as the default setting on the delete confirmation screen.

Display Quality

You can change the display quality. Set to standard to preserve battery life.

  • High: Displays in high quality.
  • Standard: Displays in standard quality.
Pwr Save Start time

Selects the time it takes for the camera to go into sleep mode if you don’t use it.

 Function for VF close

Sets whether to turn the power off when the viewfinder is stowed. This was not available in the Mark III, so everytime you pushed the EVF inside, the camera would turn OFF. Very annoying, good that this setting is here now.

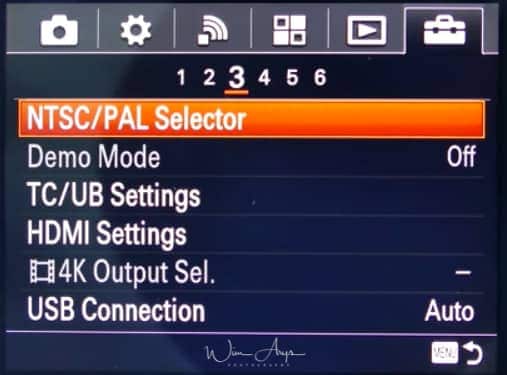

MENU – Setup – page 3

(briefcase) general options - page 3



NTSC/PAL selector

Plays back movies recorded with the product on a NTSC/PAL system TV. If you insert a memory card that has previously been formatted with a different video system, a message telling you that you must reformat the card will appear. If you want to record using another system, re-format the memory card or use another memory card.

Demo Mode

Demo mode is only used in retail stores for demonstration purposes.

TC/UB settings

The time code (TC) and the user bit (UB) information can be recorded as data attached to movies.

  • TC/UB Disp. Setting: Sets the display for the counter, time code, and user bit.
  • TC Preset: Sets the time code.
  • UB Preset: Sets the user bit. TC Format: Sets the recording method for the time code.
  • TC Run: Sets the count up format for the time code.
  • TC Make: Sets the recording format for the time code on the recording medium.
  • UB Time Rec: Sets whether or not to record the time as a user bit.
How to set the time code (TC Preset):
  1. MENU → (Setup) → [TC/UB Settings] → [TC Preset], then press in the center of the control wheel.
  2. Turn the control wheel and select the first two digits. The time code can be set between the following range. (When [60i] is selected: 00:00:00:00 to 23:59:59:29 When [24p] is selected, you can select the last two digits of the time code in multiples of four from 0 to 23 frames. When [50i] is selected: 00:00:00:00 to 23:59:59:24)
  3. Set the other digits following the same procedure as in step 2, then press in the center of the control wheel.
How to reset the time code:
  1. MENU → (Setup) → [TC/UB Settings] →[TC Preset], then press in the center of the control wheel.
  2. Press the (Delete) button to reset the time code (00:00:00:00)
How to set the user bit (UB Preset)
  1. MENU → (Setup) → [TC/UB Settings] → [UB Preset], then press in the center of the control wheel.
  2. Turn the control wheel and select the first two digits.
  3. Set the other digits following the same procedure as in step 2, then press in the center of the control wheel.
How to reset the user bit
  1. MENU → (Setup) → [TC/UB Settings] → [UB Preset], then press in the center of the control wheel.
  2. Press the (Delete) button to reset the user bit (00 00 00 00).
How to select the recording method for the time code (TC Format);

MENU → (Setup) → [TC/UB Settings] → [TC Format], then press in the center of the control wheel.

  • DF: Records the time code in Drop Frame format.
  • NDF: Records the time code in Non-Drop Frame format.
How to select the count up format for the time code (TC Run);

MENU → (Setup) → [TC/UB Settings] → [TC Run], then press in the center of the control wheel.

  • Rec Run: Sets the stepping mode for the time code to advance only while recording. The time code is recorded sequentially from the last time code of the previous recording.
  • Free Run: Sets the stepping mode for the time code to advance anytime, regardless of the camera operation.
How to select how the time code is recorded (TC Make):

MENU → (Setup) → [TC/UB Settings] → [TC Make], then press in the center of the control wheel.

  • Preset: Records the newly set time code on the recording medium.
  • Regenerate: Reads the last time code for the previous recording from the recording medium and records the new time code consecutively from the last time code. The time code advances in [Rec Run] mode regardless of the [TC Run] setting.
HDMI settings

You can find all HDMI connection settings here:

  • HDMI Resolution: When you connect the product to a High Definition TV with HDMI terminals using an HDMI cable, you can select HDMI Resolution to output images to the TV. Auto, 1080p and 1080i are available.
  • CTRL FOR HDMI: When connecting the Sony RX100 IV to a “BRAVIA” Sync-compatible TV using an HDMI cable, you can operate this product by aiming the TV remote control at the TV. Turn it ON if you want to use it.
  • HDMI Info. Display: Selects whether to display the shooting information when this product and the TV are connected using an HDMI cable.
4K output sel.

You can set how to record movies and perform HDMI output when your camera is connected to external recording/playback devices, etc.

  • Memory Card+HDMI: Simultaneously outputs to the external recording/playback device and records on the camera’s memory card.
  • HDMI Only(30p): Outputs a 4K movie in 30p to the external recording/playback device without recording on the camera’s memory card.
  • HDMI Only(24p): Outputs a 4K movie in 24p to the external recording/playback device without recording on the camera’s memory card.
  • HDMI Only(25p): Outputs a 4K movie in 25p to the external recording/playback device without recording on the camera’s memory card.
USB connection

Selects what will happen when you connect your camera to your PC or MAC.

  • Auto (default setting): Establishes a Mass Storage or MTP connection automatically, depending on the computer or other USB devices to be connected. Windows 7 or Windows 8 computers are connected in MTP, and their unique functions are enabled for use.
  • Mass Storage: Establishes a Mass Storage connection between this product, a computer, and other USB devices.
  • MTP: Establishes an MTP connection between this product, a computer, and other USB devices. Windows 7 or Windows 8 computers are connected in MTP, and their unique functions are enabled for use.

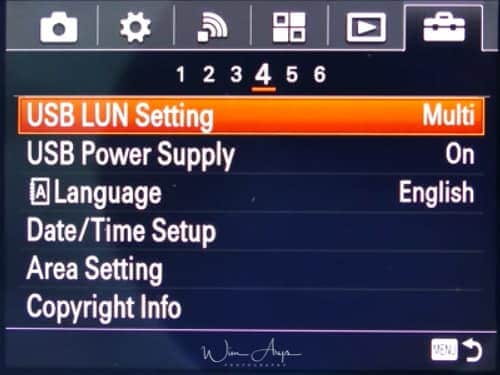

MENU – Setup – page 4

(briefcase) general options - page 4

USB LUN Setting

Improves compatibility with external devices by limiting the functions of the USB connection.
Older devices that are not able to connect to the camera might work when set to single. Otherwise, use Multi.

USB power supply

You can charge the Sony RX100 II via USB. This setting sets whether to supply power via the micro USB cable when the product is connected to a computer or an USB device.

Language

Set your preferred language. The advantage of setting it to Eglish is that you’ll find much more information online when you need any troubleshooting.

Date Time Setup

Change date, time, date format and Daylight savings time.

Area setting

Select your region, or change region when abroad, the camera will automatically change time and date for you.

Copyright info

You should always insert your credentials here. Your copyright will be written to the image file.

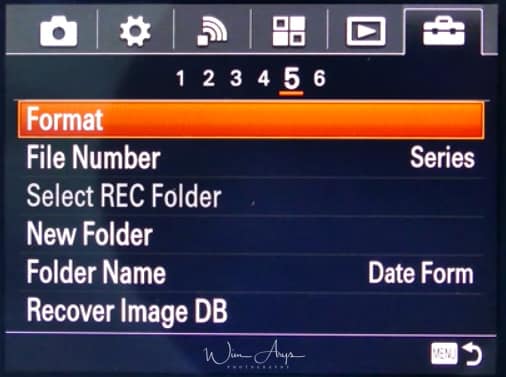

MENU – Setup – page 5

(briefcase) general options - page 5

Format

Format your SD card before use; this will erase any images still on the memory card.

File Number

Number your files according to number of shots or reset it to start from 1

Select REC folder

Selects where the camera will store newly captured images

New Folder

Make a new folder for easily organizing events and locations

Folder name

Choose whether to have folder names in standard form (DSC) or create a new one by date. Setting folders by date will make organizing your images easier.

Recover Image DB

If you have a storage card error, you can try to rebuild the database to possibly retrieve lost images.

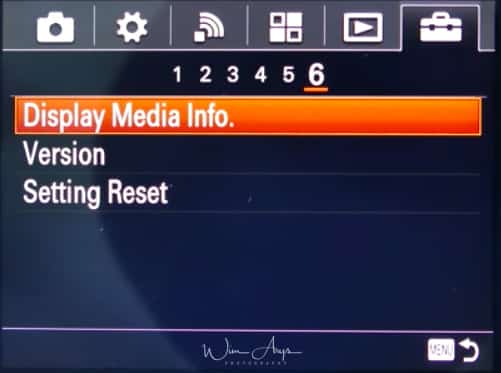

MENU – Setup – page 6

(briefcase) general options - page 6

Display media info

Displays the recordable time of movies and the number of recordable still images for the inserted memory card.

Version

Check what version of the operating system your camera and lens are running. Sony sporadically releases updates with new features, so it might be worth checking if any new firmware versions are available.

Setting Reset

Fully resets the camera to factory settings.

In the next chapter, I’ll go over all the functionality that I find most useful

Mode dial functions: what’s the difference between intelligent and superior auto?

Intelligent Auto

  • This mode lets the camera detect what kind of scene you are photographing. It switches to the scene setting it finds most appropriate, including aperture, shutter speed, ISO, and AF mode.
  • These different scene settings are the same you’ll find manually selectable in SCN mode.
  • All Sony cameras do a good job at detecting scenes, although the advanced photographer will prefer to shoot in Aperture, Shutter priority or fully manual mode in order to have more control over things like depth-of-field, movement, and focusing area.

Superior Auto

  • Does the same scene recognition and (when the camera decides it is appropriate) adds hand-held twilight, anti-motion blur, and backlight correction HDR in order to optimize dynamic range, movement and exposure.
  • This is only for jpeg shooters, as it uses multiple images shot in close succession at high quality and combines them into one jpeg. Works well on stills but should not be used for movement.

Zebra highlight clipping aide

Menu Wheel icon page 1



  • Zebra will show zebra pattern lines on blown highlights.
  • The clipping detection threshold is selectable from 70 to 100+. Lower values indicate possible highlight clipping sooner than higher.
  • Setting it somewhere around 90 will give you a good indication of whether you’re in danger of unrecoverable clipping without having the screen cluttered with stripes all the time.

Manual Focus Assist and Focus Peaking

Sony RX100 III

There are two manual focusing assist functions:

MF assist

  • When set to ON, Magnification will automatically magnify a selectable (through the menu) part of you image when in Manual Focus Mode (MF).
  • MENU → (Custom Settings) → [ MF Assist] → [On].
  • The duration of the magnification can also be set to either 2 sec, 5 sec or no limit in the menu Focus Magnification Time. (MENU → (Custom Settings) → [Focus Magnif. Time] → desired setting.)
  • You can check the focus by enlarging the image before shooting.
  1. MENU → (Camera Settings) → [Focus Magnifier].
  2. Press on the center of the control wheel to enlarge the image and select the position you want to enlarge using up/down/left/right side of the control wheel.
  3. You can change the magnifier scaling in two steps by pressing in the center, and close the focus magnifier mode and return to the normal shooting display by pressing three times.
  4. Confirm the focus.
  5. Press the shutter button fully down to shoot the image.

Peaking

  • This works in MF and DMF focusing modes
  • MENU → (Custom Settings) → [Peaking Level] → desired setting.
  • It displays a color selectable noise in the regions where the focus is on.
  • A low setting is recommended in enough light on the Sony RX100 IV.
  • In dim light, you might need to go to medium to get a good idea of where the focus is at.



Center Lock-on AF

Sony RX100 III

Center Lock-on AF

Depending on the options selected in [Focus Area] or [Center Lock-on AF], the available functions varies when pressing the key. When you press the key when the [Focus Area] is set to [Wide] or [Center] and [Center Lock-on AF] is [On], [Center Lock-on AF] will activate. The camera will automatically focus while pressing the key when the [Focus Area] is [Wide] or [Center], [Focus Mode] is set to other than [Manual Focus], and [Center Lock on AF] is set to [Off].

  • When you press the center button, the camera detects the subject positioned in the center of the screen and continues to track the subject.
  • MENU → (Camera Settings) → [Center Lock-on AF] → [On]
  • Align the target frame (A) over the subject and press in the center of the control wheel. Press again to stop tracking.
  • If the camera loses track of the subject, it can detect when the subject reappears on the monitor and resume tracking.
  • Press the shutter button fully down to shoot the image.

Smile/face detect

When set to On, The Sony RX100 IV will automatically detect and focus on faces. This is a very powerful feature and can even be made faster by registering faces beforehand. You can even prioritize any of the 8 registered faces according to importance. Ideal for a wedding or family reunion when you know the persons who you are going to photograph.

  1. Go to MENU → (Camera Settings) → [Smile/Face Detect.] and select either
  2. On (Regist. Faces): Detects the registered face with higher priority using Face Registration.
  3. On: Detects a face without giving higher priority to the registered face.

SEL35F14Z

How to register faces:

  • MENU → (Custom Settings) → [Face Registration] → [New Registration].
  • Align the guide frame with the face to be registered, and press the shutter button.
  • When a confirmation message appears, select [Enter].

Eye AF

Eye AF is great for portraiture and large apertures. With a shallow depth of field, it is at times difficult to get the appearance of a well-focussed face. The AF system could wonder to an ear or a chin when you finally get that exact shot that you’re looking for.

Eye EF eliminates this problem by detecting your subject’s eyes and placing the focus point there. It tracks them too. You’ll need to assign a button of your choice in order to make this work.

  1. MENU → (Custom Settings) → [Custom Key Settings] → assign the [Eye AF] function to the desired button.
  2. Point the camera at a person’s face, and press the button to which you have assigned the [Eye AF] function.
  3. Press the shutter button while pressing the button.

Exposure aides

Sony RX100 III

AE lock

  • When contrast between the subject and background is high, meter the light at a spot where the subject appears to have the appropriate brightness and shut the exposure before shooting.
  • You’ll need to assign a button to this function to do this in Menu – Custom Settings – Custom Key Setting and then assign the AEL toggle to the desired key.

Then:

  1. Center the spot at which the exposure is to your liking
  2. Press the button to which the  AEL toggle function is assigned
  3. exposure will be locked, and AE lock lights up.
  4. Focus on your subject and press the shutter button.
  5. To cancel the exposure lock, press the button to which the AEL toggle function is assigned.

It’s easiest to select the AEL hold function in Custom Key Settings; then you can lock the exposure as long as
you are holding down the AEL button.

ND Filter and Bulb mode

Sony RX100 III

ND Filter

  • The RX100 IV has a 3 EV-stop ND filter. This is sufficient to enable you to get that smooth waterfall or flowing river picture.
  • You can easily access it through the Fn button Menu.

Bulb Mode

Bulb mode is great for shooting trails of light, such as fireworks, car lights, etc.

bulb mode

It’s best to use a remote or the Sony Playmemories remote app (that is downloadable for free) as you want to eliminate movement.

  • Firstly set the mode dial to M.
  • Connect your phone to the camera using WiFi or NFC.
  • Then:
  1. Dial exposure time to Bulb on the app.
  2. Dial in a suitable Aperture value from F/5.6.
  3. Press the shutter button on the app to start the exposure.
  4. Press the shutter button again on the app to stop the exposure.

Conclusion

The Sony RX100 IV brought many new software innovations to the RX line. Besides the ability to record in 4K and make High Frame rate movies, you shouldn’t overlook the many new focusing aides inside the camera like Eye AF and focus peaking. If you have any questions, I’d love to hear from you in the comment section below.

wim arys

Wim Arys is a photographer from Belgium Europe with a passion for mirrorless cameras.

You may also like...

17 Responses

  1. Bruno Schlumberger says:

    good morning Arys, just got the sony RX IV because of its size and prevents me to take out my pro camera when I go shopping!!! what is your take on maximum print size if of course image is sharp and shot in raw– too many submenus that I will never used — but for now I like it!!!Bruno

  2. Nikos Papaioannou says:

    Do the same tips apply to RX100 III too?

    thank you

  3. sam kim says:

    Nice post. I’m trying to get more out of this fancy little point and shoot, for both video and stills. Any chance that function and control ring custom settings can be made dependent on mode dial adjustment? For example, I could switch to M on mode dial I would be able to adjust those settings I use for stills, then switch to ‘movie mode’ on the mode dial and adjust those settings I use for video?

    Seems like this would be necessary for such a loaded menu system.

  4. Matt Turner says:

    Hey Wim while you might not be a cave diver. I just got this camera to do video underwater and in a cave. I was wondering what settings you would do for such videos?

    • wim arys says:

      Hi Matt, set white balance to underwater and leave it on auto. I haven’t done any underwater cave videos but have done a few underwater model shoots and this works well. I would invest in an underwater video light if I was you, you’re going to need it to keep ISO (and noise) low.

  5. Vic Dedham says:

    Hi Wim,
    I think your Tipsand tricks for the Sony RX100are really informative.
    I’ve had my Sony RX100 MkIV for some months now and really love it.
    I just have one little querie, is it possible to switch off the full magnification when examining taken jpgs?

  6. Jeff Buchin says:

    I purchased the Sony RX100M4 on Aug 14, 2018 in large part because of your favorable review. You fail to mention the wide spread problem that this model and others in this line have of the camera turning on and off at any time.
    This camera has never been dropped and always in a case. Sony states its warranty is only 1 year and that the repair cost is $361.00.
    Although the camera takes excellent photographs it certainly not worth spending the amount of money they sell for with such a poor warranty and failure to stand behind their product

  7. Julie says:

    Hi Wim,
    Do you have any experience with or no where I could find info about raw images showing up poorly on iPad Pro with the RX100 vii?

  8. Joseph Santirojprapai says:

    Hi Wim Arys,
    I don’t know why the DRO/Auto HDR from menu #5 is gray out. I cannot turn this feature on. Please help.
    Thank you,
    Joseph

  9. Tim says:

    Very good and clear description. What I appreciate is the clear description of video file formats and record settings and certain functions I don’t understand I can tell you this: this camera is amazingly complex but there is an enormous amount of control. I bought my M4 used in 2022 for $340 on ebay. I really don’t plan on using 4K but will use AVCHD. I’m very happy with it. It will always be a fun challenge. If you haven’t set up the Function Menu Settings and the Custom Key Settings then you are missing one of the main features. It makes the camera much easier to use.

Leave a Reply

Your email address will not be published. Required fields are marked *
