Panasonic Lumix GX8 settings, tips and tricks

Introduction

Welcome to my Panasonic GX8 advanced manual with tips and tricks. This guide starts from your Menu settings and goes through all aspects of this interesting camera. I know it is a lot of information, but you’ll get the hang of it soon, I promise.

The GX8 was the first Micro Four Thirds camera to leave the world of 16 Megapixel sensors behind, moving to 20MP.

Panasonic Lumix GX8 settings, tips and tricks

Key Features

  • 20MP Four Thirds MOS sensor
  • Dual IS capability
  • Depth from Defocus AF system
  • 2.36M-dot tilting OLED EVF
  • 1.04M-dot, vari-angle OLED touchscreen display
  • 4K video / photo
  • Weatherproof magnesium alloy body
  • Wi-Fi with NFC

Panasonic Lumix GX8 settings, tips and tricks

I’ll be going over the entire Menu structure in this post, and giving you tips, pointers, and tricks along the way.

Diving into the MENU system

When you switch on your Panasonic Lumix GX8 you’ll be asked to enter a date, time and timezone. This setting is necessary, as all images captured will have a timestamp, making it easy to find your favorite pictures in the future. After this is setup, press the MENU button. You’ll see a range of icons and pages. We’ll start at page 1 of the camera Icon (camera settings)

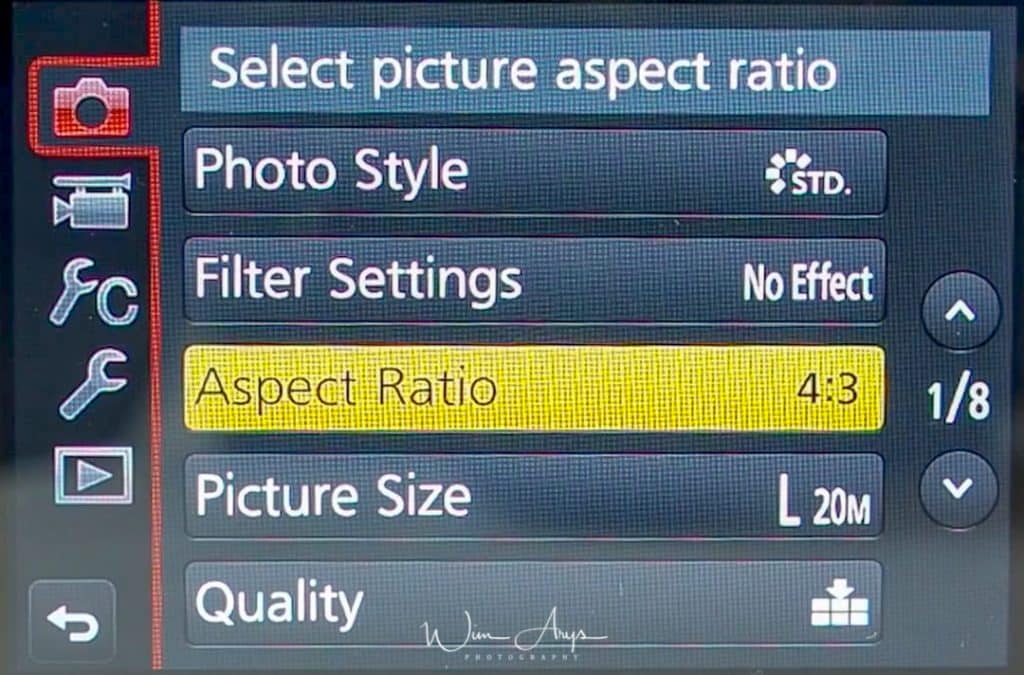

MENU → Camera Icon → page 1 of 8 (also called the Rec menu)

MENU → Camera Icon → page 1 of 8

Photo Style

This applies only to Jpeg images, and the RAW preview. You can select a colour effect here.

  • Standard: standard Panasonic colour and contrast rendering.
  • Vivid: Brilliant effect with high saturation and contrast.
  • Natural: Soft effect with low contrast.
  • Monochrome: Monochrome  (black and white)effect with no color shades.
  • L.Monochrome: Black-and-white effect with rich gradation and crisp black accents.
  • Scenery: An effect appropriate for sceneries with vivid blue skies and greens.
  • Portrait: An effect appropriate for portraits with a healthy and beautiful skin tone.
  • Custom 1-4: Make your own presets for easy recall when needed.

As mentioned earlier, it’s possible to create your own Photo Style or customise the preset styles. This is basically a way of hacking into the Jpeg engine and adjusting it to your own style and preferences. There are 6 areas that you can alter.

  • Contrast: add or decrease the difference between the brightness and the darkness in the picture.
  • Sharpness: add a degree of sharpness or make your images softer.
  • Noise Reduction: add noise reduction for high ISO shooting.
  • Saturation: add more vividness to the colours. Or remove some.
  • Color Tone: add a blue, orange, red or green filter to your image.
Filter Settings

The filter Settings go a step further than merely a photo style. These include artistic effects like Low Key, Sepia, Cross Process and retro stylings. You can turn them ON or OFF here, select the effect you want to use and change the settings by using the touch screen. You can also set your Lumix GX8 up to shoot one with and one without an image effect simultaneously.

If you’re wondering how you get to Creative Control mode, you need to set the mode dial to the paint palette.Creative Control mode

And simply press up and down to select the image effects. You can also display the selection screen by touching the Recording Mode icon in recording screen.

These are all the image effects available:

  • Expressive
  • High Key
  • Monochrome
  • Silky Monochrome
  • Cross Process
  • Bleach Bypass
  • Fantasy
  • Sunshine: you can select the position and size of the light source here.
  • Retro
  • Low Key
  • Dynamic Monochrome
  • Impressive Art
  • Toy Effect
  • Miniature Effect: you can select the portion of your image that is in focus here (and where the blur effect won’t happen)
  • Star Filter
  • Old Days
  • Sepia
  • Rough Monochrome
  • High Dynamic
  • Toy Pop
  • Soft Focus
  • One Point Color: you can select the color to leave in here by using a color picker.
 Aspect Ratio

You can change the aspect ratio of your photos here. Changing the aspect ratio can be used as a way to boost your creativity, for instance landscapes often look great with a 16:9 ratio, or for sharing on Instagram, a 1:1 crop might suit you better.

An M43 (Micro Four-thirds) camera has a native aspect ratio of (not surprisingly) 4:3. You should realise that changing the aspect ratio to anything else than this will actually crop the sensor, meaning that you’ll lose pixels. You should look at it as re-framing your image (like you can do in Lightroom or other photo editors) inside the Panasonic GX8. Jpeg’s will be stored with the chosen ratio, but RAW images (although previewed with the chosen ratio), will still have the full information of the 4:3 sensor retained.

These are the aspect ratios available:

  • 4:3: native sensor ratio
  • 3:2: the ratio used in full frame cameras
  • 16:9: for a wider looking view
  • 1:1: Square aspect ratio, mostly used for social sharing
Picture Size

Picture Size sets the number of pixels for Jpeg (nor RAW). The higher the numbers of pixels, the more detail your pictures will have.

  • When the aspect ratio is set to 4:3, you use all the 20 MP of the sensor for a maximum image size of 5184 x 3888.
  • When the aspect ratio is 16:9, you only use a wide crop of 14.5 MP of the sensor for a maximum image size of 5184k x 920.
  • When the aspect ratio is 3:2 you use 17 MP of the sensor and have an 5184 x 3456 image size.
  • When the aspect ratio is 1:1, you use 14,5 MP of the sensor for an 3888 x 3888 image size.

The Panasonic GX8 also has a digital teleconverter option, allowing you to zoom in by a factor of times 2 or times 4. This can be a handy feature if you don’t shoot RAW (see next item for more info).  Thanks to  in-body digital processing, the resulting Jpegs actually retain a larger image size than what you’d expect of de facto cropping the sensor by a factor 2 or 4. I would however only recommend using this feature if you’re a die hard jpeg shooter, since using RAW files and developing your images in Lightroom or another app will almost always get you better results.

Quality

Probably the most important setting is Quality. You can select either Jpeg, where the RAW data from the sensor is processed by an in-camera algorithm to produce a viewable image, or save your images in this RAW format. RAW retains all the data of the sensor, and is meant to be edited afterwards in a desktop application like Lightroom or Luminar. Saving as RAW means that you have much more creative freedom afterwards to push shadows or pull highlights, sharpen and enhance your image in any way you please. A Jpeg retains only a fraction of this information, according to the algorithm inside the Lumix GX8 which might or might not suit your style and/or needs.

Hence, my recommendation is always to shoot RAW or RAW Jpeg. This does mean larger files, but SD cards are inexpensive compared to your beautiful new Lumix. But some photographers prefer to shoot in Jpeg only because they are for instance not interested in post-processing images. In this case, I would set the Jpeg to the highest quality setting.

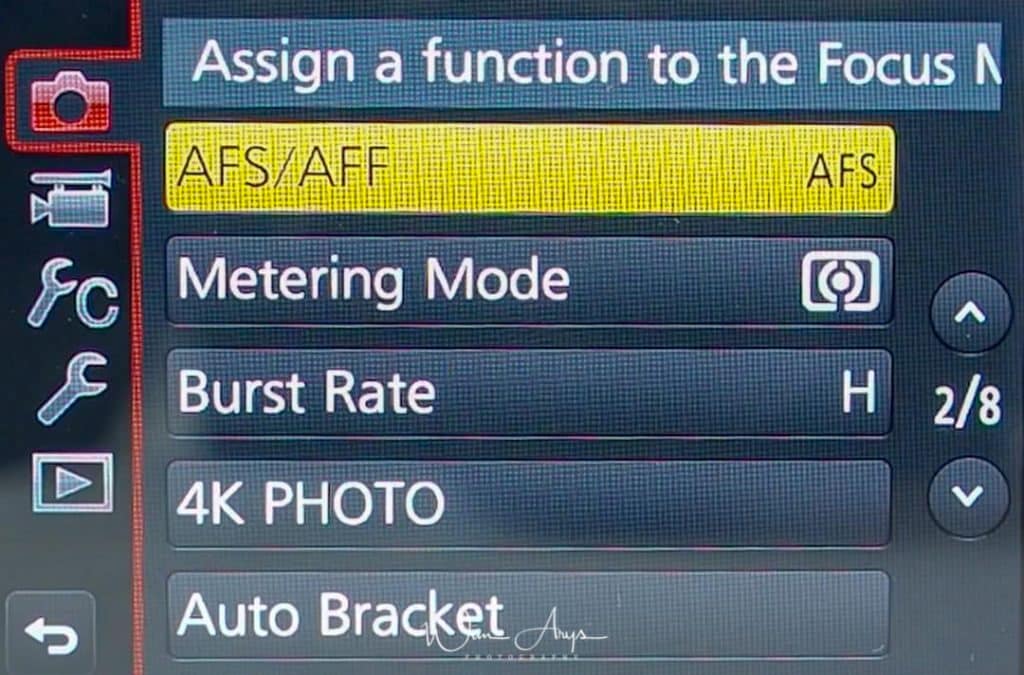

MENU → Camera Icon → page 2 of 8 (also called the Rec menu)

MENU → Camera Icon → page 2 of 8

AFS/AFF

AFS is an abbreviation of Auto Focus Single and AFF is an abbreviation of Auto Focus Flexible. In AFS, the focus stays locked while the shutter button is pressed halfway and in AFF focus is continuously readjusted according to the movement of the subject. See AFF as a function between Single AF and Continuous AF.

This can easily be changed by using the dial on the right of the ECF too:

AFS/AFF

The AFC function below AFS/AFF continuously changes focus according to the movement of your subject.

Some more info on these modes for clarification:

  • AFS will find focus and stay focused at that distance until you take a photo or release the shutter button. This is handy if you want to focus and then recompose your shot for instance.
  • AFF will do the same unless it detects subject movement, at which time it will temporarily switch to AFC operation in order to re-focus.
  • AFC won’t start to seek focus until you half-press the shutter, and will continually evaluate subject movement and change focus as needed.
  • With AFS you can can lock focus on a particular point, then swing the camera to get the right framing; with AFC, it will not lock focus, but will keep re-focusing. That’s why Pinpoint focusing can’t be used with AFC.
Metering Mode

You can change how the light is metered here, and hence how a correct exposure is calculated by the Lumix GX8. If you feel that the camera takes over- or underexposed images according to your personal preferences, it might be worth changing the metering mode.

Implementation of this is quite basic in the Lumix GX8, you have a total of only 3 methods to choose from:

  • Multiple: This is the method in which the Lumix GX8 measures the most suitable exposure by judging the allocation of brightness on the whole screen automatically.
  • Center weighted: This is the method used to focus on the subject on the center of the screen and measure the whole screen evenly.
  • Spot: This is the method to measure the subject in the spot metering target.
Burst Rate

You can choose your bust shot setting here for continuous drive mode.

Burst shooting means that you’ll shoot continuously when you press the shutter button.

You’ll see SH (for super high burst rates), This SH modes are only available with the electronic shutter. Then we have High, Medium and Low which work with the Mechanical shutter too. The actual burst rate will be higher if you shoot Jpeg only.

 4K Photo

4K photo mode is designed to help you to capture fleeting moments by letting you shoot at an incredible 30fps. Continuous autofocus mode is automatically activated and it draws on 4K video technology to shoot 8 MP images at this fast frame rate. You’re basically recording video where you can extract the frames in-camera.

There are three 4K Photo Modes: 4K Burst, 4K Burst (S/S) and 4K Pre-Burst. These modes determine at how and when the footage will be recorded.

  • In 4K Burst mode the Lumix GX8 shoots 4K footage for as long as you hold down the shutter release button.
  • In 4K Burst (S/S), S/S stands for Start/Stop and recording is started and ended with a press of the shutter release.
  • 4K Pre-Burst mode is useful for short bursts of action because it only records for 2 seconds. However, the camera starts scanning the moment it’s active and it records the 30 images from the 1 second prior to you pressing the shutter button as well as the 30 from the 1 second after you pressed it.

Extracting 8Mp stills from the GX85’s 4K Photo Mode footage is pretty easy as follows:

  1. Press the play button to located the files. Clips recorded in 4K Photo Mode are marked with the 4K Photo icon to make the easy to identify. Once you’ve found the clip you want, either tap the 6K Photo Icon on-screen or the Up navigation key.
  2.  If you have a long clip with fleeting moments of action you may like to use the slide bar at the top to quickly scroll to an interesting bit of footage. Alternatively, there’s a playback option (button Fn1) that you can use to play and pause the movie.
  3. Once you’ve found the area you’re interested in, tap the Frame View Icon to see a scrollable stack of frames, just swipe right and left to locate the best shots.
  4. When you find an image you like, tap the Menu/Set button or 4K Icon to save the image. Images are saved as jpegs.

it’s possible to save all the frames from 5 second sections of your 4K movie. To do this:

  1. Tap the Menu button and scroll down to Playback (the 6th tab), then scroll to the second page of options and select 4K PHOTO Bulk Saving.
  2. Then swipe on the screen until you find the clip that you want to extract stills from.
  3. Now use the same on-screen movie navigation controls as you used before to find the first frame of the 5 seconds that you want to pull the stills from and tap the 6K Photo icon to save it and the image from the next 5 seconds.
Auto Bracket

The Exposure Bracket function allows you to take multiple pictures while automatically adjusting the exposure or aperture by pressing the shutter button. You can select the number of pictures to be taken and the exposure range (from 1/3 EV to 1 EV stops difference).

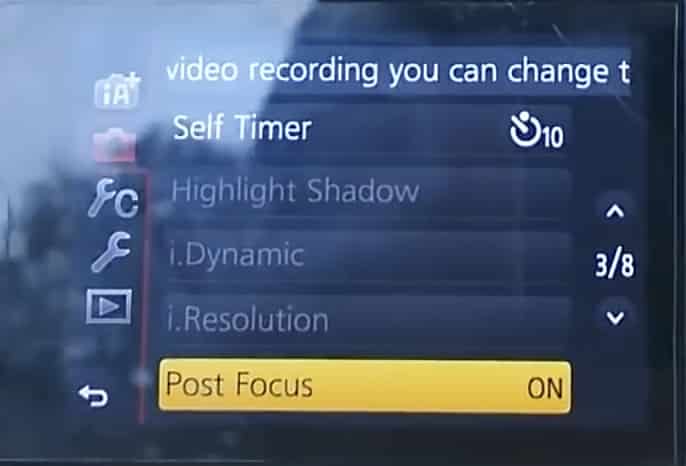

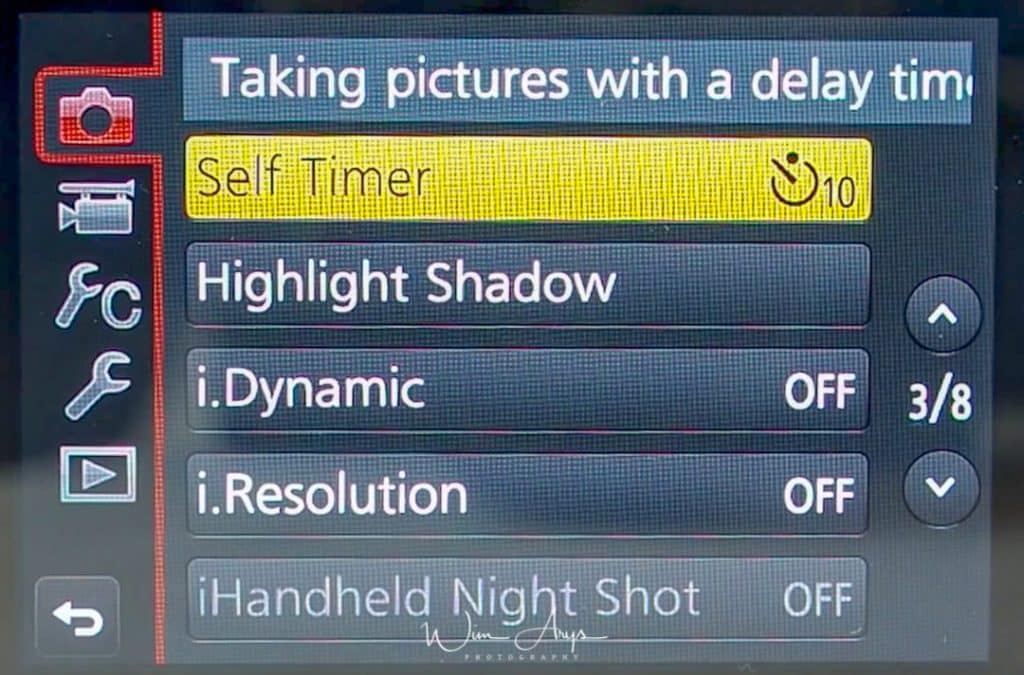

MENU → Camera Icon → page 3 of 8 (also called the Rec menu)

MENU → Camera Icon → page 3 of 8 (also called the Rec menu)

Updated firmware has a change:

Panasonic GX8 firmware update

Self Timer

In this menu, you can select what type of self timer you’d like to use: a 10 second delay and one shot, 10 seconds with 3 shots with 2 second intervals or a 2 second delay, all after pressing the shutter.

Highlight Shadow

This allows you to lighten the shadows and darkens the highlights in your image (or video).  So this is a method of creating balance in your image if you feel like the highlights are too strong or the shadows too dark. You have 4 presets available, and you can also make 3 custom presets yourself:

  • Standard: no adjustments is set.
  • Raise the contrast: Bright areas are brightened, and dark areas are darkened.
  • Lower the contrast: Bright areas are darkened, and dark areas are brightened.
  • Brighten dark areas: Dark areas are brightened.
  • Custom: make your own preset.

This is how to adjust the parameters for Custom presets:

  1. Rotate the front/rear dial to adjust the brightness of bright/dark portions.Image
  2. A – Bright portion B – Dark portion
    • The rear dial is for adjusting dark areas, and the front dial is for adjusting bright areas.
    • To register a preferred setting, press ▲, and select the destination where the custom setting will be registered to [Custom1]/[Custom2]/[Custom3].
    • Adjustments can also be made by dragging the graph.
  3. Press [MENU/SET].
    • The screen display can be switched by pressing [DISP.] on the brightness adjustment screen.
    • Image
    • Turning off this unit will return the setting adjusted with Image / Image / Image / Image back to the default setting.
    • When [Photo Style] is set to [Like709] or [V-Log L], setting is fixed to [ Image ] (Standard).
i. Dynamic

This setting will change contrast and exposure when there is a big difference from the darkest area to the brightest are in your image. What really happens is that the camera adjusts the exposure in order to capture more details in the highlights. You can choose between High, Standard, Low or Off.

This naturally causes an under-exposure in the shadow areas. But inside the jpeg engine, the Lumix GX8 will compensate for this by boosting shadows. The downside here is that this will obviously lead to more noise in the boosted regions, but because this is done with data directly coming from the sensor, it can be quite useful if you are a jpeg shooter.

There is also an impact on RAW images, because the exposure will be underexposed.

i. Resolution

Another jpeg only functionality, i-Resolution is a form of sharpening. High, Standard, Low and Off are selectable, and you should see these like the threshold for sharpening in an application like Lightroom. Many photographers discard these intelligent functions, and if you shoot RAW only, it’s not that important for you (except i Dynamic which can change your exposure plus or minus 1/3 stop). But if you shoot jpeg only, you should set it to Low at least, since most of the time RAW files would be sharpened in post processing too.

iHandheld Night Shot

With iHandheld night shot, pictures of the night scenery will be taken at a high burst speed and composed into a single picture. This mode is useful if you want to take stunning night shots with minimal jitter and noise, without using a tripod. You can turn this feature on or off.

Post Focus

Post focus means controlling your focus point afterwards. This might sound like a scifi concept, but it’s quite simple if you know what is really happening. The Panasonic GX8 performs a burst of shots  while automatically shifting the focus to different areas. After the recording, you can select your desired focus point from the list of per second captures. It works best with scenes with little to no movement, as having someone move around would of course add another degree of shifting focus points to the mix.

In the same way, focus stacking can be achieved. Focus stacking is a method of making an images that is sharp across the frame. By recording the same scene multiple times with different focus points and later on combining all these images, you can get an image that is sharp across the frame. This is a technique often used in macro photography where your depth of field is very shallow (only a small part, where focus lies, is sharp) because of the nature of shooting at close distances. But it can also be used for other types of photography like landscapes.

It’s recommended to use a very fast SD card in order to achieve these high frame rates by the way.

For post focus:

Select your series of images you just captured, there is an icon that reassures you this is a batch of images to avoid any confusion:

post focus icon

Once selected, all you need to do is use the touch screen to select the focus point you desire. And now touch this icon to save:

save post focus image

The Focus stacking function can be performed in-camera. This methods also starts with selecting the series of images you just captured. Then you press the FN1 button and you’ll be in the focus stacking menu. There are two types of merging, Auto and range. Auto automatically selects the best images to merge into a more sharp composite image, and Range allows you to select a specified focus range with your finger on the touch screen. When you have done this, touch the icon on the bottom right of the screen and the Lumix S1r will save the resulting composite image with the EXIF data from the closest focussed image.

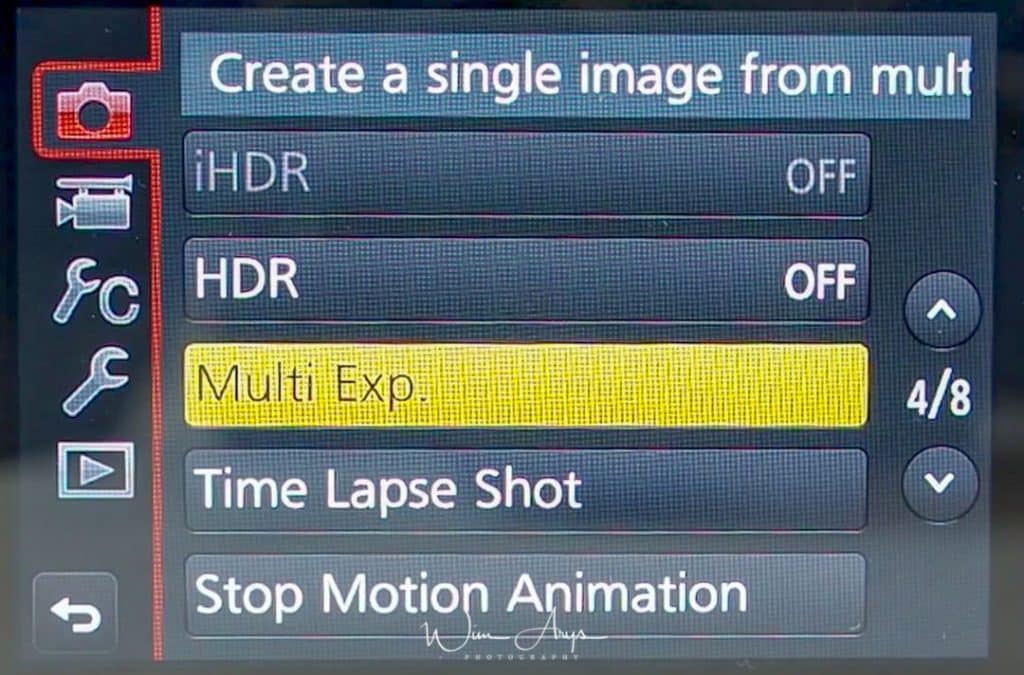

MENU → Camera Icon → page 4 of 8 (also called the Rec menu)

MENU → Camera Icon → page 4 of 8

iHDR

Intelligent HDR will take multiple still pictures are recorded with differing exposures and combined to create a single still picture rich in dynamic range.

HDR

You can combine 3 pictures with different levels of exposure into a single picture with rich gradation. You can minimize the loss of gradations in bright areas and dark areas when, for example, the contrast between the background and the subject is large.

Two settings are available:

  • Dynamic Range: Either set this to auto where the camera decides the exposure difference between shots or plus/minus 1, 2 or 3 EV.
  • Auto Align: the Panasonic Lumix GX8 will align your three shots, for handheld shooting or turn this feature off when you use a tripod.
Multi Exp.

Gives an effect like multi exposure. (layering images on top of each other, up to 4).

  1. Decide on the composition, and take the first picture.
  2. After taking the picture, press the shutter button halfway down to take the next picture.
  3. Press up/down to select the item and then press MENU/SET to either go to the next image, retake your image or exit.$Shooting the second, third, and fourth exposures
  4. Press down to select Exit and then press MENU/SET.
  5. Your multiple exposure is made and saved.

Two settings are available:

  • Auto gain: the camera automatically adjusts the gain of the separate images to match.
  • Overlay: if set to ON, you can apply Multi Exposure to previously recorded images.
Time Lapse Shot

You can take a sequential number of images with relatively long delays in between to achieve a time-lapse movie

  1. Switch to Time Lapse Shot if it is not selected.
  2. change start time and shooting interval according to your preferences.
  3. press te shutter half way to exit the menu.
  4. press the shutter to start your time-lapse.
Stop Motion Animation

You can take a sequential number of images with relatively long delays in between to achieve a stop motion/animation.

  1. Switch to Stop Motion Animation
  2. Change auto shooting and shooting interval according to your preferences
  3. press te shutter half way to exit the menu.
  4. press the shutter to start your time-lapse.
  5. move the subject per frame
  6. press the folder menu to end the recording

MENU → Camera Icon → page 5 of 8 (also called the Rec menu)

MENU → Camera Icon → page 5 of 8

Panorama Settings

You can change settings for the Panorama shot mode on your mode dial here.

  • Direction: sets the recording direction to either horizontal or vertical.
  • Picture Size: set to either Standard or Wide.
Electronic Shutter

You can use either the mechanical or electronic shutter.

Remember that in artificial light or when using a flash, you best use the mechanical shutter only to avoid artefacts.

Shutter Delay

To reduce the influence of hand shake or shutter vibration, shutter is released after the specified time has passed. 1, 2, 4 or 8 second delay are selectable. Keep your hands steady and don’t use this delay, else you might miss that critical moment.

Flash

You’ll find all the flash functions in this menu for the hotshoe flash you want to use.

Using a flash takes some skill, but you have a couple of tweaks available for you if you want to make the most of your photography.

Firing Mode
  • TTL: The camera automatically sets the flash output. This system meters the light coming through the lens, this includes both ambient and flash light. It calculates the best exposure according to these measurements. Preferred for most users.
  • Manual: Set the luminosity ratio of the flash manually. 1/1 means full power, and you can decrease the power to an output that best suits your scenery. It’s not the easiest way to use a flash, but you’ll gain a lot of knowledge in how to balance your flash and ambient light this way.
Flash Mode

like your smartphone camera, you can tell the flash to always be on, turn it off or use a ‘pro’ feature called slow sync. In Slow Sync, the Lumix GX8 will attempt to balance the ambient light with the light of the flash, even in near darkness by slowing down the shutter speed.

These three options are available for the built-in flash. If you’re using a hotshoe flash, or a controller for off camera flashes, you’ll have a few more modes available:

Flash Synchro
  • 1st: the flash will sync with the first movement of the shutter (when it opens). This is the normal mode used for normal photography.
  • 2nd:The flash fires right before the second operation of an exposure, namely the closing of the shutter.

Second curtain sync is often uses for creative effect, where you’d see the light source appear behind the subject.

Flash Adjust

You can adjust the output power of the flash here in 1/3EV steps in TTL metering mode. In essence, this will give you more or less flash power than when set to zero. If you, for instance , feel that there is always too much flash light in your photos, you could dial it down a little here.

Auto Exposure Comp.

Normally, when you use the compensation dial on the camera body, you’ll also increase or decrease the flash output power. You can turn this OFF here, so the compensation dial will only affect your exposure (brighter or darker) and not flash power.

Wireless Flash Settings

If you want up your game in regards to flash photography, you’ll quickly turn to wireless flashes. These will enable you to use the flash power in a creative way, adjusting power and angle of light by positioning your off-camera flashes differently. Panasonic make a few wireless enabled flashes like the DMW-FL200L, DMW-FL360L or DMW-FL580L, but you can also invest in a few third party brands like Godox. An entire book could be written (and probably has been) on this subject. But for nowWe’ll stick with what is in the menu system.

  • Wireless: set to ON if you want to use a wireless flash.
  • Wireless Channel: Select the channel you have set for the wireless flashes.
  • Wireless Setup: You’ll have three groups of flashes available (A, B and C) as well as your on-camera hotshoe controller flash.. Each flash group can be set to TTL (metering through the lens), Auto, Manual or OFF. You can also dial in flash adjust +-3 EV per group here.
Wireless FP

FP is most commonly known as high speed sync. This system uses a series of high speed flash burst in sync with the shutter in order to achieve flash at high shutter speeds. This is useful in situations where you’d normally be overpowered by sunlight and/or you want to shoot at large apertures for a shallow depth-of-field effect.

You can enable or disable this function for wireless flashes here.

Red-Eye Removal

If you use a flash when using Red-Eye Reduction, the Lumix GX8 will automatically detect red-eye and corrects the picture.

MENU → Camera Icon → page 6 of 8 (also called the Rec menu)

MENU → Camera Icon → page 6 of 8

ISO Limit Set

Sets the upper  limits of the ISO sensitivity when you use Auto ISO or i ISO. Lower Limit should be set to 200 and upper limit to 1600, this is the range where you’ll get usable images without too much noise.

ISO Increments

Choose the increments of exposure changes between 1/3 EV or 1 EV.

Extended ISO

ISO sensitivity can be set up to minimum of ISO 100. Base ISO of the sensor is 200, so this extended ISO basically halves this in software, with a slight decrease in quality.

Long Shtr NR

The camera will automatically apply noise reduction to long exposures. This applies to both Jpeg and RAW files. A black frame is taken after your initial shot to measure the noise present. Since many environmental factors (like temperature and location) have an effect on the amount of noise that you’ll see, this is the best way to determine what is noise in your frame. This data is then subtracted from your image for a noise-free (more-or-less) result.

Shading Comp.

All lenses have a lens profile that registers both distortion and shading in the corners at all apertures. These lens profiles can be applied in-camera to counter unwanted vignetting in your images. Especially important for jpeg shooters to turn this on. RAW shooters can apply these corrections later on (and with better results) in a desktop application like DXO optics Pro.

MENU → Camera Icon → page 7 of 8 (also called the Rec menu)

MENU → Camera Icon → page 7 of 8

Diffraction Compensation

When you stop down your lens to a smaller aperture (normally from f/11 to f/22), a phenomenon called diffraction causes a loss in sharpness. It happens because light begins to disperse when passing through a small opening. When diffraction compensation is set to ON, the Panasonic GX8 will add sharpening to your image to try and counter this phenomenon.

Ex. Tele Conv.

You can digitally enlarge pictures without too much quality deterioration with this function. Only for jpeg use, you can extend the range of your lens by times 1.4 or 1.6 using this function.

Digital Zoom

Digital zoom takes this a step further, allowing you to zoom in up to 4 times for jpeg’s. I would not recommend either of these functions, as it is better to shoot RAW in this case and crop in processing for the best possible quality.

Color Space

Select either sRGB or Adobe RGB here. Adobe RGB has a greater range of reproducible colors than sRGB, so it might be worth looking into this color space if you print to paper a lot. But remember that you’ll also need a monitor capable of reproducing the larger color range too. And this can often lead to problems when converting to sRGB or editing your images in external applications. Because of all this, I have it set to sRGB.

Image Stabilizer

The Panasonic Lumix GX8 has a stabilised sensor. The sensor inside the Lumix GX8 is suspended on a magnetic field and can compensate for movement like the minute shakes of your hands or any other kind of movement. There are also many lenses available with an optical image stabilisation unit, that physically move glass elements around inside the lens to do the same. Both systems have their pros and cons, and it is generally accepted that a stabilised sensor works better for wide angle lenses (below 40mm) whilst optical lens stabilisation is more efficient for the tele range. It is also possible to use both systems at the same time (called Dual I.S. or 5 Axis hybrid for video), where you’ll take advantage of the best of both worlds.

It’s also possible to use the in-body sensor stabilisation with older, manual primes that don’t relay EXIF information (like most importantly focal length in this case).  You’ll need to manually set the focal length in the Focal length Set function to get an optimal performance.

MENU → Camera Icon → page 8 of 8 (also called the Rec menu)

MENU → Camera Icon → page 8 of 8

Face Recog.

Face Recognition is a function on the Panasonic GX8 which finds a face resembling a registered face and priorities focus and exposure automatically. Even if the person is located towards the back or on the end of a line in a group photo, the camera can still take a clear picture.

On will automatically recognise faces, but you can also register up to six faces yourself.

  1. In this Menu, select an empty frame (or overwrite one).
  2. Take an picture of the face you want to register.
  3. Register this face. Note that you can register up to 3 images per face for more accurate results.
Profile Setup
If you set the name and birthday of your baby or pet in advance, you can record their name and age in months and years in the images.
You can display these at playback or stamp the recorded images using the Text Stamp tool. This way, you’ll have a nice overview of your imageges as your child gets older.

Select the Profile Setup menu.

  1. Press up/down to select [SET] and then press [MENU/SET].
  2. Press up/down to select [Baby1], [Baby2] or [Pet] and then press [MENU/SET].
  3. Enter age and name of the pet or person.
  4. Press 4 to select [Exit] and then press [MENU/SET] to finish.

MENU → Film Camera Icon → page 1 of 5 (also called Motion Picture Menu)

MENU → Film Camera Icon → page 1 of 5



These are all movie related settings, and menu of them are the same as the stills related menu options. You can however (obviously) set them up differently for video.

Photo Style

This applies only to Jpeg images, and the RAW preview. You can select a colour effect here.

  • Standard: standard Panasonic colour and contrast rendering.
  • Vivid: Brilliant effect with high saturation and contrast.
  • Natural: Soft effect with low contrast.
  • Monochrome: Monochrome  (black and white)effect with no color shades.
  • L.Monochrome: Black-and-white effect with rich gradation and crisp black accents.
  • Scenery: An effect appropriate for sceneries with vivid blue skies and greens.
  • Portrait: An effect appropriate for portraits with a healthy and beautiful skin tone.
  • Custom 1-4: Make your own presets for easy recall when needed.

it’s possible to create your own Photo Style or customise the preset styles. This is basically a way of hacking into the Jpeg engine and adjusting it to your own style and preferences. There are 6 areas that you can alter.

  • Contrast: add or decrease the difference between the brightness and the darkness in the picture.
  • Sharpness: add a degree of sharpness or make your images softer.
  • Noise Reduction: add noise reduction for high ISO shooting.
  • Saturation: add more vividness to the colours. Or remove some.
  • Color Tone: add a blue, orange, red or green filter to your image.
Filter Settings

The filter Settings go a step further than merely a photo style. These include artistic effects like Low Key, Sepia, Cross Process and retro stylings. You can turn them ON or OFF here, select the effect you want to use and change the settings by using the touch screen. You can also set your Panasonic GX8 up to shoot one with and one without an image effect simultaneously.

If you’re wondering how you get to Creative Control mode, you need to set the mode dial to the paint palette.Creative Control mode

And simply press up and down to select the image effects. You can also display the selection screen by touching the Recording Mode icon in recording screen.

These are all the image effects available:

  • Expressive
  • High Key
  • Monochrome
  • Silky Monochrome
  • Cross Process
  • Bleach Bypass
  • Fantasy
  • Sunshine: you can select the position and size of the light source here.
  • Retro
  • Low Key
  • Dynamic Monochrome
  • Impressive Art
  • Toy Effect
  • Miniature Effect: you can select the portion of your image that is in focus here (and where the blur effect won’t happen)
  • Star Filter
  • Old Days
  • Sepia
  • Rough Monochrome
  • High Dynamic
  • Toy Pop
  • Soft Focus
  • One Point Color: you can select the color to leave in here by using a color picker.
Snap Movie

You can specify the recording time in advance and record motion pictures casually like you take snapshots. The function also allows you to shift a focus at the start of recording and add fade in/out effects in advance.

  1. Select the Snap Movie menu
  2. Start recording
Rec Format

You can either choose to record in AVCHD or MP4 format. The higher the Bit rate value is, the higher the picture quality becomes. Since the camera employs the VBR recording method, the bit rate is changed automatically depending on the subject to record. As a result, the recording time is shortened when a fast-moving subject is recorded. Different frame rates and bitrates are selectable per format in the Rec Quality setting

Rec Quality

Select the quality of video here.

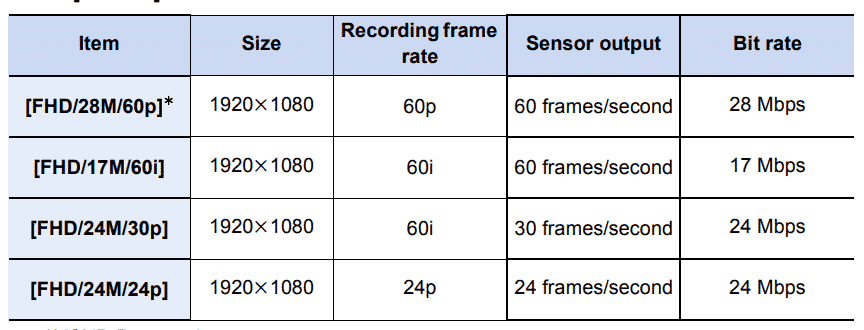

AVCHD
Screen Shot 2018 02 01 at 13 33 28

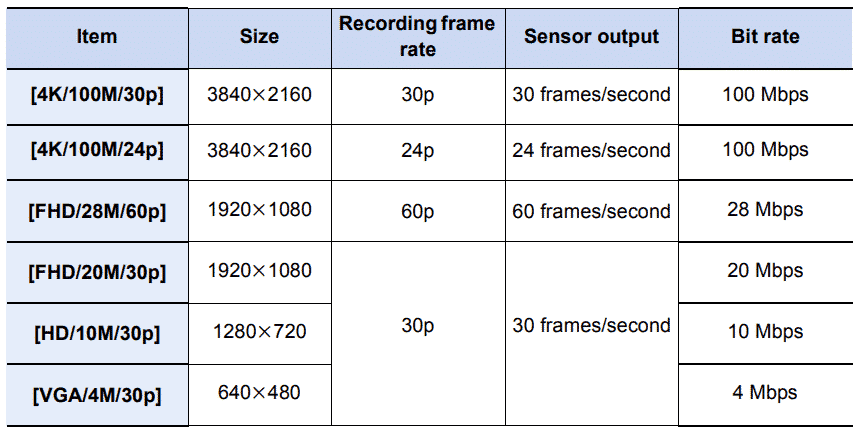

MP4

Screen Shot 2018 02 01 at 13 33 37

MENU → Film Camera Icon → page 2 of 5 (also called Motion Picture Menu)

MENU → Film Camera Icon → page 2 of 5

Exposure Mode

These are the same modes available with the mode dial (P, A, S or M)

AFS/AFF

AFS is an abbreviation of Auto Focus Single and AFF is an abbreviation of Auto Focus Flexible. In AFS, the focus stays locked while the shutter button is pressed halfway and in AFF focus is continuously readjusted according to the movement of the subject. See AFF as a function between Single AF and Continuous AF.

Picture Mode

You can record still pictures while recording a movie on the Panasonic GX8. During movie recording, press the shutter button fully to record a still picture when turned On. Aspect will always be 16:9.

There are 2 settings available:

Video Priority
  • Pictures will be recorded with a picture size determined by the Rec Quality setting for motion pictures.
  • Only JPEG images are recorded when Quality is set to Raw (still pictures will be recorded in jpeg)
  • Up to 80 still pictures can be recorded during recording of the motion picture. (Up to 20 still pictures during 4K motion picture recording)
Photo Priority
  • Pictures will be recorded with the set picture size and quality.
  • The screen will go dark while recording pictures. A still picture will be recorded in the motion picture during that period, and audio is not recorded.
  • Up to 20 still pictures can be recorded during recording of the motion picture. (Up to 10 still pictures during 4K motion picture recording)
Continuous AF

Focusing changes depending on the Focus Mode setting and the Continuous AF setting in this menu.

AFS/AFF/AFC:
  • On: TheLumix GX8 automatically keeps focusing on subjects during recording.
  • Off: The camera maintains the focus position at the start of recording.
MF

You can use manual focus.

Metering Mode

You can change how the light is metered here, and hence how a correct exposure is calculated by the camera. If you feel that the camera takes over- or underexposed images according to your personal preferences, it might be worth changing the metering mode.

Implementation of this is quite basic in this camera, you have a total of only 3 methods to choose from:

  • Multiple: This is the method in which the Lumix GX8 measures the most suitable exposure by judging the allocation of brightness on the whole screen automatically.
  • Center weighted: This is the method used to focus on the subject on the center of the screen and measure the whole screen evenly.
  • Spot: This is the method to measure the subject in the spot metering target.

MENU → Film Camera Icon → page 3 of 5 (also called Motion Picture Menu)

MENU → Film Camera Icon → page 3 of 5

Highlight Shadow

This allows you to lighten the shadows and darkens the highlights in your image (or video).  So this is a method of creating balance in your image if you feel like the highlights are too strong or the shadows too dark. You have 4 presets available, and you can also make 3 custom presets yourself:

  • Standard: no adjustments is set.
  • Raise the contrast: Bright areas are brightened, and dark areas are darkened.
  • Lower the contrast: Bright areas are darkened, and dark areas are brightened.
  • Brighten dark areas: Dark areas are brightened.
  • Custom: make your own preset.

For more info, see the equivalent setting for photos above.

i.Dynamic

This setting will change contrast and exposure when there is a big difference from the darkest area to the brightest are in your image. What really happens is that the camera adjusts the exposure in order to capture more details in the highlights. You can choose between High, Standard, Low or Off.

This naturally causes an under-exposure in the shadow areas. But inside the jpeg engine, the Lumix GX8 will compensate for this by boosting shadows. The downside here is that this will obviously lead to more noise in the boosted regions, but because this is done with data directly coming from the sensor, it can be quite useful.

i.Resolution

i-Resolution is a form of sharpening. High, Standard, Low and Off are selectable, and you should see these like the threshold for sharpening in an application like Lightroom. Many photographers discard these intelligent functions, and if you shoot RAW only, it’s not that important for you (except i Dynamic which can change your exposure plus or minus 1/3 stop).

Diffraction Compensation

When you stop down your lens to a smaller aperture (normally from f/11 to f/22), a phenomenon called diffraction causes a loss in sharpness. It happens because light begins to disperse when passing through a small opening. When diffraction compensation is set to ON, the Panasonic GX8 will add sharpening to your image to try and counter this phenomenon.

Luminance Level

Select the luminance range to match the use of video.

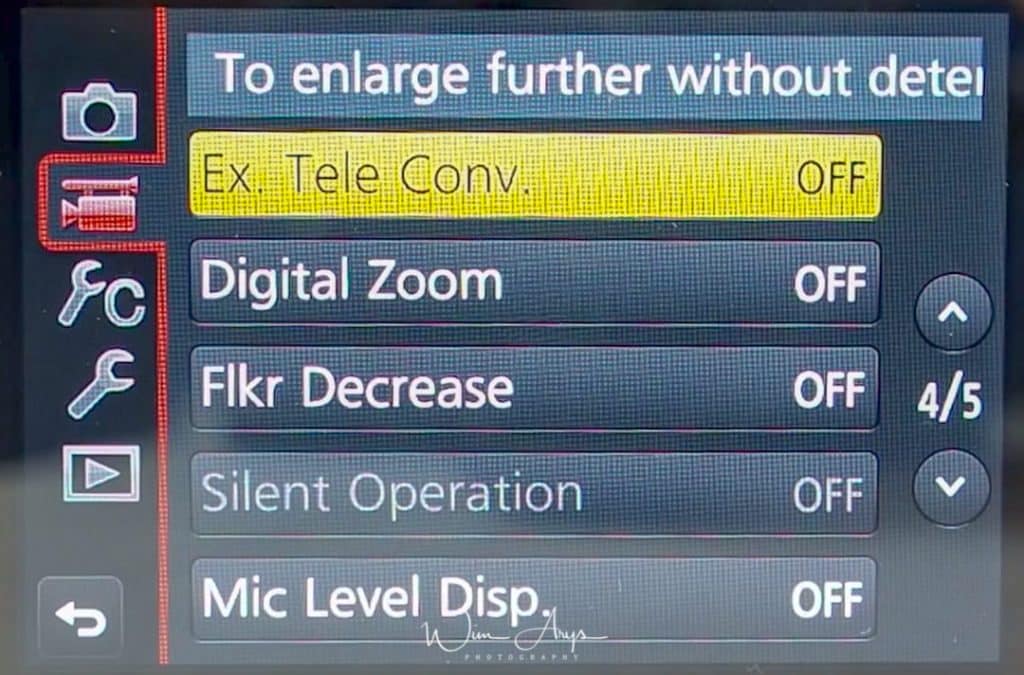

MENU → Film Camera Icon → page 4 of 5 (also called Motion Picture Menu)

MENU → Film Camera Icon → page 4 of 5

Ex. Tele Conv.

You can digitally enlarge movies without too much quality deterioration with this function. You can extend the range of your lens by times 1.4 or 1.6 using this function.

Digital Zoom

Digital zoom takes this a step further, allowing you to zoom in up to 4 times.

Flkr Decrease

The shutter speed can be fixed to reduce the flicker or striping in your movies. 1/50,/1/60,1/100 or 1/120 second are available.

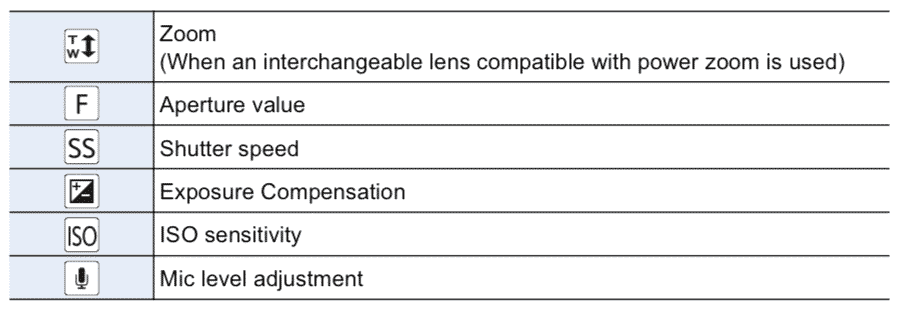

Silent Operation

The operational sound of the zoom or button operation may be recorded when it is operated during the recording of a motion picture. Using touch icons allows silent operation while recording motion pictures.

Silent Operation menu

Mic Level Disp.

Select if you want to display the microphone level on the recording screen.

MENU → Film Camera Icon → page 5 of 5 (also called Motion Picture Menu)

MENU → Film Camera Icon → page 5 of 5

Mic Level Adj.

Adjust the sound input level to 19 different levels (-12 dB to +6 dB).

Wind Noise Canceller

This will reduce the wind noise coming into the built-in microphone while maintaining sound quality. You can choose either High, Standard or Off. This function works only with the built-in microphone.

Custom settings page 1 of 9

You’ll find all customisable settings of the Panasonic GX8 in this Menu.

Custom settings page 1 of 9



You’ll find all customisable settings of the Panasonic GX8 in this Menu.

Cust. Set Mem.

Up to 3 sets of current camera settings can be registered using C1, C2, C3-1, C3-2 or C3-3. These are directly accessible via the Mode Dial.

Saving a custom camera is quite simple, set the mode dial to C1, C2 or C3, change the Lumix GX8 settings to your preferences, go in the Menu to this setting and press MENU/SET on the screen.

Silent Mode

Disables operational sounds and output of light at once. • Audio from the speaker will be muted and the flash and the AF Assist lamp will be disabled.

The following settings are fixed:

– Shutter Type: ESHTR.

– Flash Mode]:forced flash off.

– AF Assist Lamp: Off.

–  Beep Volume: Off.

– E-Shutter Volume: Off.

AF/AE Lock

Lock focus and exposure with AF/AE LOCK. To clear the lock, press AF/AE LOCK again.

AF/AE Lock Hold

When ON is selected, focus and exposure stays locked even if you press and release AF/AE LOCK. To clear the lock, press AF/AE LOCK again.

Shutter AF

Set whether or not the focus is adjusted automatically when the shutter button is pressed halfway.

Custom settings 2 of 9

Custom settings 2 of 9

Half Press Release

The shutter will immediately fire when the shutter button is pressed halfway when this is ON.

Quick AF

As long as the camera is held steady, the Lumix GX8 will automatically adjust the focus and focus adjustment will then be quicker when the shutter is pressed. You’ll get better AF performance at the expense of battery life.

Eye Sensor AF

The Panasonic GX8 will automatically start autofocus when the eye sensor is activated.

Pinpoint AF Time

Sets the time for which the screen is enlarged when the shutter button is pressed halfway with Auto Focus Mode set to MF assist.

Pinpoint AF Display

Sets whether to display the assist screen that appears when Auto Focus Mode is set to manual focus assist: in a window or full screen.

Custom settings page 3 of 9

Custom settings page 3 of 9

AF Assist lamp

AF assist lamp will illuminate the subject when the shutter button is pressed half-way making it easier for the camera to focus when recording in low light conditions. Range is about 1 meter.

Direct Focus Area

Moves the AF area or MF assist using the cursor button when recording.

Focus/release Priority

This will prevent you from taking pictures when focus is not achieved.

AF+MF

When AF Lock is ON (press the shutter button halfway with the focus mode set to AFS or set AF Lock using AF/AE LOCK), you can make fine adjustments to the focus manually.

MF Assist

Sets the display method of MF Assist (enlarged screen) on the Panasonic GX8.

MF assist settings

Custom settings page 4 of 9

Custom settings page 4 of 9

MF Assist Display

Sets whether MF Assist (enlarged screen) will appear in a windowed screen display or in a full screen display.

MF Guide

When you set the focus manually, an MF guide that allows you to check the direction to achieve focus is displayed.

Peaking

In-focus portions (portions on the screen with clear outlines) are highlighted when focus is being adjusted manually. Great focussing aide for manual focussing. Can be set to High or Low.

Histogram

Display the histogram. A histogram is a graph that displays brightness along the horizontal axis (black to white) and the number of pixels at each brightness level on the vertical axis. It allows you to easily check a picture’s exposure.

Guide Line

This will set the pattern of guide lines displayed when taking a picture.

Custom settings page 5 of 9

Custom settings page 5 of 9

Center Marker

The center of the recording screen will be displayed as [+].

Highlight

When the Auto Review function is activated or when playing back, white saturated areas appear blinking in black and white.

Zebra Pattern

Indicates parts that may become white saturated through overexposure in a zebra pattern. You can select a brightness value between 50% and 105%. In Zebra 2, you can select OFF. If you select 100% or 105%, only the areas that are already white saturated are displayed in a zebra pattern. The smaller the value is, the wider the brightness range to be processed as a zebra pattern will be.

Monochrome Live View

You can display the recording screen in black and white. This function is convenient when a black and white screen will make it easier to set focus with Manual Focus.

Constant Preview

You can check the effects of the chosen aperture and shutter speed on the recording screen in Manual Exposure Mode. Some camera makers call this Live View.

Custom settings page 6 of 9

Custom settings page 6 of 9

Expo.Meter

Display the exposure meter.

  • Set to ON to display the Exposure meter when performing Program Shift, setting aperture, and setting shutter speed.
  • Unsuitable areas of the range are displayed in red.
  • When the Exposure meter is not displayed, switch the display information for screen by pressing DISP.
  • If no operations are performed for approximately 4 seconds, the Exposure meter disappears.
LVF Disp. Style

This will set the display style of the viewfinder. You can choose between detailed information (icons), tilt sensor display or without any information.

Monitor Disp. Style

This will set the display style of the screen. Here too, you can choose between detailed information (icons), tilt sensor display or without any information.

Monitor Info. Disp.

Display the recording information screen.

Viewfinder style: Scales down images slightly so that you can better review the composition of the images.

Monitor style: Scales images to fill the entire screen so that you can see their details.

Rec Area

This changes the angle of view during motion picture recording and still picture recording. Displays the recording area according to the angle of view for still picture recording or video.

Custom settings page 7 of 9

Custom settings page 7 of 9

Remaining Disp.

This will switch display between the number of recordable pictures and available recording time.

Auto Review

Displays a picture immediately after it is taken.

FN Button Set

You can assign various recording and other functions to the function buttons.

Lens Position Resume

Saves the focus position when you turn off the Lumix GX8. When an interchangeable lens that is compatible with power zoom is in use, the zoom position is also saved.

Q.MENU

In Custom operations, you can customise the Q Menu according to your liking.

You can add a maximum of 15 preferred settings to the Quick Menu.

  1. Press Q.MENU to display the Quick Menu.
  2. Press down to select the custom tool and then press MENU/SET.
  3. Press left/right arrow to select the menu item in the top row and then press MENU/SET.
  4. Press left/right to select the empty space in the bottom row and then press MENU/SET. (You can also set the menu item by dragging it from the top row to the bottom row)
  5. Press return to switch to the recording screen.

Custom settings page 8 of 9

Custom settings page 8 of 9

Video Button

Enables/disables the motion picture button.

Power Zoom Lens

Change the settings for a power zoom lens. Sets the screen display and lens operations when using an interchangeable lens that is compatible with power zoom.

  • Disp Focal Length: When you zoom, the focal distance is displayed and you can confirm the zoom position.
  • Step Zoom: When you operate the zoom with this setting [ON], the zoom will stop at positions corresponding to predetermined distances.
  • Zoom Speed: You can set the zoom speed for zoom operations for both stills and vide to high, medium or low.
  • Zoom Ring: When set to OFF] the operations controlled by the zoom ring are disabled to prevent accidental operation.
Eye Sensor

This sets the automatic viewfinder/monitor switching functionality. Automatic viewfinder/monitor switching enables the eye sensor to switch the display to the viewfinder automatically when you bring your eye or an object near it.

You can select whether to Turn off the monitor when the EVF is engaged with the Eye sensor, and also the Eye Sensor sensitivity.

Touch Settings

Enables/disables the Touch screen operation.

  • Touch Screen: All touch operations are turned on.
  • Touch Tab: Operations of tabs are enabled.
  • Touch AF: Operation to bring the subject you touch into focus AF or adjust the focus and brightness AF+AE are enabled.
  • Touch Pad AF: Operation to move the AF area by touching the monitor when the viewfinder is in use.
Touch Scroll

This allows you to set the speed of continuously forwarding or rewinding pictures using touch operation.

Custom settings page 9 of 9

Custom settings page 9 of 9

Menu Guide

Sets whether or not to display a selection screen when you set the mode dial to SCN.

Shoot w/o Lens

Sets whether or not the shutter can be released when no lens is attached to the main body.

MENU → Setup Menu → page 1 of 5 (General Camera Setup)

MENU → Setup Menu → page 1 of 5 (General Camera Setup)

Clock Set

You have already probably set time and date when you first turned on the Panasonic GX8, but you can also change this here.

World Time

Sets the times for the region where you live (HOME) and your travel destination (DESTINATION). Time and date will be altered to reflect the local time and date at your travel destination.

Travel Date

If you set Travel Setup, elapsed days of your trip i.e. which day of the trip based on its departure and return dates will be recorded The travel date is automatically canceled if the current date is after the return date.

If you set Location, the name of the travel destination that you enter will be recorded.

Wi-Fi

It’s possible to control your Panasonic GX8 with a smartphone or a tablet, display pictures on TV, print Wirelessly, Send images to a PC or use Web Services from Panasonic all via WiFi.

To use the Wi-Fi function on this camera, a wireless access point is needed off course.

By default, Wi-Fi is assigned to the Fn6 button when the Panasonic Lumix GX8 is in Recording Mode, while it is assigned to Fn1 when the camera is in Playback Mode. You can assign it to any button you want.

When you want to connect to WiFi, simply press this button.

Wi-Fi Setup

Priority of Remote Device: Sets either the camera or the smartphone as the priority control device to be used during remote recording.

  • Wi-Fi Password: You can improve security by enabling password entry for a direct connection to a smartphone.
  • LUMIX CLUB: Acquires or changes the “LUMIX CLUB” login ID.
  • PC Connection: You can set the workgroup. To send images to a PC, a connection to the same workgroup as the destination PC is required.
  • Device Name: You can change the name (SSID) of this unit.
  • Wi-Fi Function Lock: To prevent incorrect operation and use of the Wi-Fi function by a third party and to protect saved personal information, protect the Wi-Fi function with a password.
  • Network Address: Displays the MAC address and IP address of this unit.
  • Approved Regulations: Displays the certification number for radio regulations.
Beep

This allows you to set the electronic sound and the electronic shutter sound. Remember this will be off if you’re in Silent Mode!

MENU → Setup Menu → page 2 of 5 (General Camera Setup)

MENU → Setup Menu → page 2 of 5 (General Camera Setup)

Live View Mode

This sets the viewfinder frame rate, to either 30 or 60fps. At 60fps you’ll see movement smoother at the cost of battery life.

Monitor Display

This sets the monitor frame rate to either 30fps or 60fps. Again, at 60fps you’ll see movement smoother at the cost of battery life.

Monitor Luminance

These settings will affect how and when brightness of the monitor is adjusted.

Auto: The brightness is adjusted automatically depending on how bright it is around the camera.

Mode 1: Makes the monitor brighter than normal.

Mode 2: Set the monitor to the standard brightness.

Mode 3: Makes the monitor brighter than standard.

Economy

These settings will determine the way the camera handles inactivity on your part to save battery life.

  • Sleep Mode: The Lumix GX8 is automatically turned off if the camera has not been used for the time selected on the setting.
  • Sleep Mode(Wi-Fi): The camera is automatically turned off if it is not connected to a Wi-Fi network and has not been used for 15 minutes (
  • Auto LVF/ Monitor Off: The monitor/viewfinder is automatically turned off if the camera has not been used for the time selected on the setting.
  • Power Save LVF Shooting: If you display the monitor using the viewfinder/monitor automatic switching function, the camera will turn off automatically after being left idle.
USB Mode

Sets the communication method when connecting using the USB connection cable.

  • Select on Connection: Select this setting to select the USB communication system when connecting to another device.
  • PC Storage: Select this setting to export images to a connected PC.
  • PC Tether: Select this setting to control the Lumix GX8 from a PC installed with supported software.
  • Pictbridge PTP: Select this setting when connecting to a printer supporting PictBridge.

MENU → Setup Menu → page 3 of 5 (General Camera Setup)

MENU → Setup Menu → page 3 of 5 (General Camera Setup)

TV Connection

Set the format for the HDMI output when playing back on the HDMI compatible TV and monitor connected with this unit using the HDMI cable. It’s possible to set it to Auto or 4K, 1080p, 1080i, etc…

Menu Resume

Stores the location of the last-used menu item for each menu, so that when you enter that menu, the last opened page is used.

Menu Background

Set the background color for the menu screen.

Menu Information

Descriptions of menu items or their settings are displayed on the menu screen.

Language

Set the language displayed on the screen.

MENU → Setup Menu → page 4 of 5 (General Camera Setup)

MENU → Setup Menu → page 4 of 5 (General Camera Setup)

Version Disp

This enables the firmware versions of the camera and lens to be checked before an upgrade for instance.



Self Timer Auto

Set whether to cancel the self-timer when the unit is turned off.

No.Reset

Reset the file number of the next recording to 0001.

Reset

The following settings are reset to the default:

  • Recording settings.
  • Setup settings Wi-Fi Setup and Bluetooth settings.
  • Custom settings (Face Recog. and[Profile Setup settings.
  • Setup/custom settings (except for Wi-Fi Setup, Bluetooth, Face Recog. and Profile Setup).
Reset Wi-Fi Settings

Reset all Wi-Fi settings used to the factory defaults.

MENU → Setup Menu → page 5 of 5 (General Camera Setup)

MENU → Setup Menu → page 5 of 5 (General Camera Setup)

Pixel Refresh

It will perform optimization of imaging device and image processing. Use this function when you start seeing hot or dead pixels in your images.

Sensor Cleaning

Dust reduction to blow off the debris and dust that have affixed to the front of the imaging device is performed.Level

Format

Format the card before recording a picture with this unit.

Since data cannot be recovered after formatting, make sure to back up necessary data in advance.

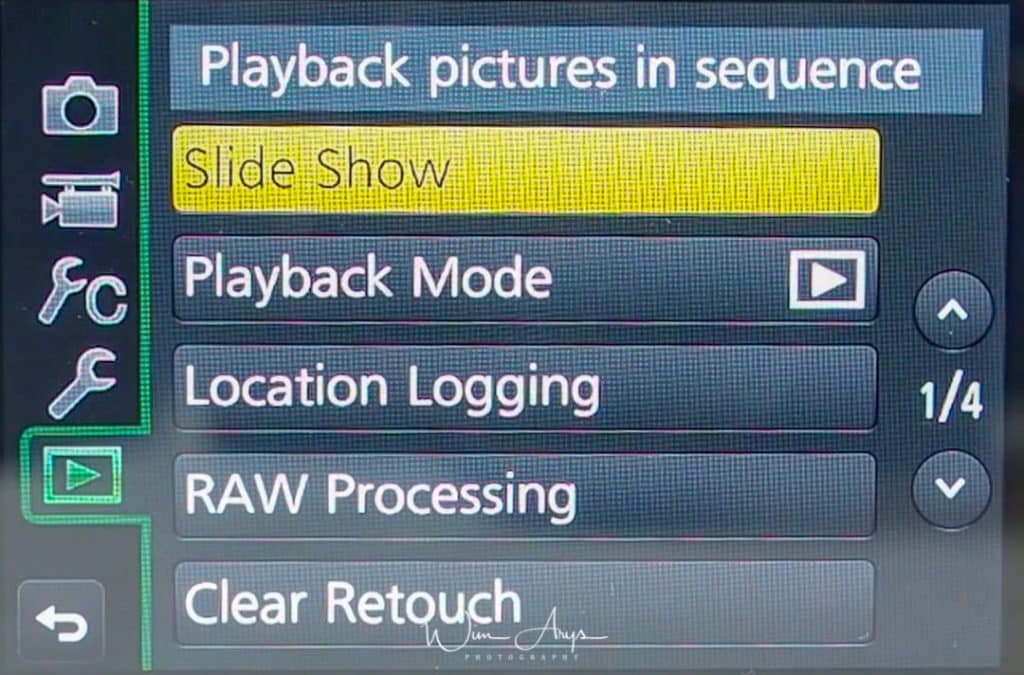

MENU → Playback Menu → Page 1 of 4

MENU → Playback Menu → Page 1 of 4

Slide Show

You can play back the pictures you have taken in synchronization with music, and you can do this in sequence while leaving a fixed interval between each of the pictures.

You can also put together a slide show composed of only still pictures, only motion pictures, etc.

You can change the settings for slide show playback by selecting [Effect] or [Setup] on the slide show menu screen.

Playback Mode

Playback in Normal Play, Picture Only or Video Only can be selected.

Location Logging

You can write location information sent from a smartphone (latitude and longitude) on images.

You need to install the Panasonic Image App on your smartphone to do this.

RAW Processing

You can process the pictures taken in RAW format. The processed pictures will be saved in JPEG format.

  • White Balance: Allows you to select a White Balance preset and adjust it. If you select an item you can process the image with the setting at the time of recording.
  • Brightness correction: Allows you to correct the brightness within the range between – 2 EV and +2 EV.
  • Photo Style: Allows you to select a photo style effect.
  • i.Dynamic: Allows you to select an i.Dynamic setting.
  • Contrast: Allows you to adjust the contrast.
  • Highlight: Allows you to adjust the brightness of bright portions.
  • Shadow: Allows you to adjust the brightness of dark portions.
  • Saturation and Color Tone: Allows you to adjust the saturation.
  • Filter Effect: Allows you to select a filter effect.
  • Noise Reduction: Allows you to adjust the noise reduction setting.
  • i.Resolution: Allows you to select an i.Resolution setting.
  • Sharpness: Allows you to adjust the resolution effect.
Clear Retouch

Remove unwanted objects and such right from the camera menu. The erasure operation can only be performed by touching. Clear Retouch automatically enables the touch operation.

MENU → Playback Menu → Page 2 of 4

MENU → Playback Menu → Page 2 of 4

Title Edit

You can add text (comments) to pictures. After text has been registered, it can be stamped in prints using Text Stamp.

Text Stamp

You can stamp recording information like names, dates, places on recorded images.

Video Divide

Recorded motion picture and 6K/4K burst files can be divided in two. It is recommended for when you want to divide a part you need with a part you do not need.

Time Lapse Video

This function allows you to create a motion picture from a picture group recorded with Time Lapse Shot.

Stop Motion Video

A Motion picture is created from group pictures taken with Stop Motion Animation.

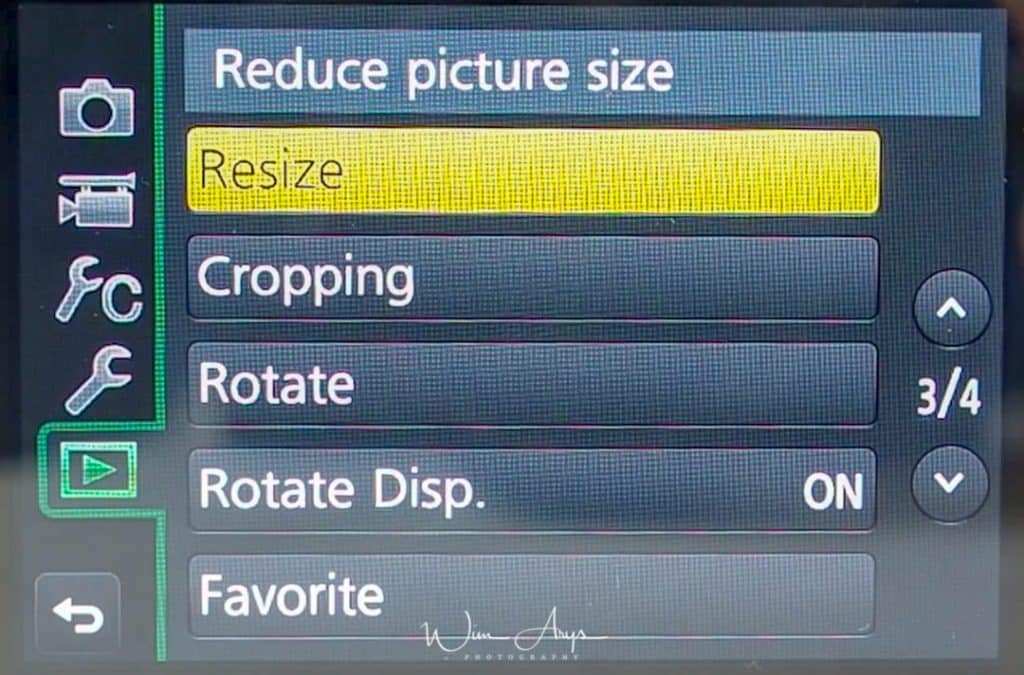

MENU → Playback Menu → Page 3 of 4

MENU → Playback Menu → Page 3 of 4

Resize

To allow easy posting to web pages, attachment to e-mail etc., picture size (number of pixels) is reduced.

Cropping

You can enlarge and then clip the important part of the recorded picture.

Rotate

Rotate pictures manually in 90 degree steps.

Rotate Disp.

This mode allows you to display pictures vertically if they were recorded holding the Lumix GX8 vertically.

Favorite

You can do the following if a mark has been added to pictures and they have been set as favourites:

  • Play back the pictures set as favourites only as a slide show.
  • Play back only the pictures set as favourites. ([Favorite Play)

MENU → Playback Menu → Page 4 of 4

MENU → Playback Menu → Page 4 of 4

Print Set

DPOF “Digital Print Order Format” is a system that allows the user to select which pictures to print, how many copies of each picture to print and whether or not to print the recording date on the pictures when using a DPOF compatible photo printer or photo printing store.

 Protect

You can set protection for pictures you do not want to delete by mistake.

Face Rec Edit

You can clear and replace all information relating to face recognition in selected images.

Picture Sort

You can set the order in which the camera displays images during playback.Either via file name or date/time.

Delete Confirmation

This sets which option, Yes or No, will be highlighted first when the confirmation screen for deleting a picture is displayed.

Quick access with the Q Menu (Fn 2)

The most commonly used settings can be accessed through what is called the Q Menu. This is the FN2 button that you’ll find right next to the screen, above the trash bucket button.

The features that can be adjusted using Quick Menu are determined by the mode or a display style the Lumix GX8 is in.

G9 Q Menu photo style

Photo Style

This applies only to Jpeg images, and the RAW preview when you load them into an app like Lightroom.. You can select a colour effect here.

  • Standard: standard Panasonic colour and contrast rendering.
  • Vivid: Brilliant effect with high saturation and contrast.
  • Natural: Soft effect with low contrast.
  • Monochrome: Monochrome  (black and white)effect with no color shades.
  • L.Monochrome: Black-and-white effect with rich gradation and crisp black accents.
  • Scenery: An effect appropriate for sceneries with vivid blue skies and greens.
  • Portrait: An effect appropriate for portraits with a healthy and beautiful skin tone.
  • Custom 1-4: Make your own presets for easy recall when needed.

As mentioned earlier, it’s possible to create your own Photo Style or customise the preset styles. This is basically a way of hacking into the Jpeg engine and adjusting it to your own style and preferences. There are 6 areas that you can alter.

  • Contrast: add or decrease the difference between the brightness and the darkness in the picture.
  • Sharpness: add a degree of sharpness or make your images softer.
  • Noise Reduction: add noise reduction for high ISO shooting.
  • Saturation: add more vividness to the colours. Or remove some.
  • Color Tone: add a blue, orange, red or green filter to your image.

G9 Q Menu motion picture setting

Motion Pic. Set

You can change bitrate and frame-rate for video here, as well as select the appropriate movie container.

AVCHD

Screen Shot 2018 02 01 at 13 33 28

MP4

Screen Shot 2018 02 01 at 13 33 37

G9 Q Menu picture setting

Picture Setting

You can quickly change picture size and picture quality here for your Jpeg’s.

These are the aspect ratios available:

  • 4:3: native sensor ratio
  • 3:2: the ratio used in full frame cameras
  • 16:9: for a wider looking view
  • 1:1: Square aspect ratio, mostly used for social sharing

Quality wise, you can choose between Small (S), Medium (M) and Large (L) files sizes. Obviously, Large will have the best quality Jpeg’s, at the expense of larger files. If you only shoot Jpeg (and not RAW) set it to Large. If you shoot both (Jpeg+RAW, see next screen), you could set it to small or medium since you’ll always work with the RAW in post processing. This way, you’ll still have a Jpeg for sharing quickly online or as a reference whilst still saving some space.

G9 Q Menu picture quality settings

Quality

Probably the most important setting is Quality. You can select either Jpeg, where the RAW data from the sensor is processed by an in-camera algorithm to produce a viewable image, or save your images in this RAW format. RAW retains all the data of the sensor, and is meant to be edited afterwards in a desktop application like Lightroom or Luminar. Saving as RAW means that you have much more creative freedom afterwards to push shadows or pull highlights, sharpen and enhance your image in any way you please. A Jpeg retains only a fraction of this information, according to the algorithm inside the Lumix GX8 which might or might not suit your style and/or needs.

Hence, my recommendation is always to shoot RAW or RAW Jpeg. This does mean larger files, but SD cards are inexpensive compared to your beautiful new Lumix. But some photographers prefer to shoot in Jpeg only because they are for instance not interested in post-processing images. In this case, I would set the Jpeg to the highest quality setting.

G9 Q Menu AFS/AFFAFS/AFF

AFS is an abbreviation of Auto Focus Single and AFF is an abbreviation of Auto Focus Flexible. In AFS, the focus stays locked while the shutter button is pressed halfway and in AFF focus is continuously readjusted according to the movement of the subject. See AFF as a function between Single AF and Continuous AF.

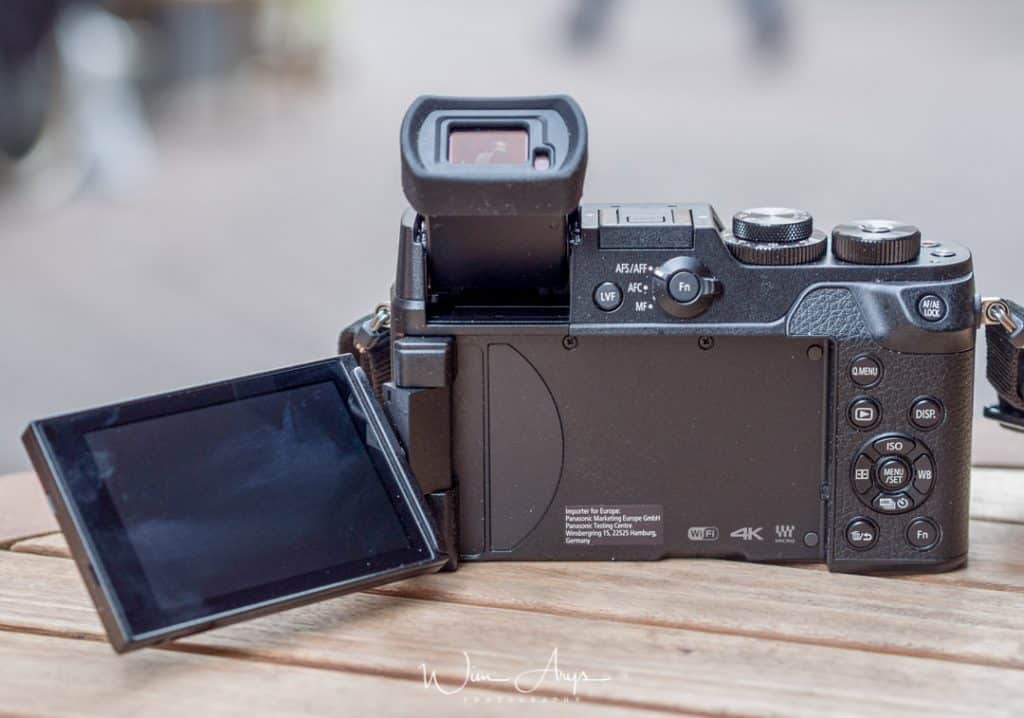

This can easily be changed by using the dial on the right of the ECF too:

AFS/AFF

The AFC function below AFS/AFF continuously changes focus according to the movement of your subject.

Some more info on these modes for clarification:

  • AFS will find focus and stay focused at that distance until you take a photo or release the shutter button. This is handy if you want to focus and then recompose your shot for instance.
  • AFF will do the same unless it detects subject movement, at which time it will temporarily switch to AFC operation in order to re-focus.
  • AFC won’t start to seek focus until you half-press the shutter, and will continually evaluate subject movement and change focus as needed.
  • With AFS you can can lock focus on a particular point, then swing the camera to get the right framing; with AFC, it will not lock focus, but will keep re-focusing. That’s why Pinpoint focusing can’t be used with AFC.

G9 Q Menu AF mode

AF Mode

This allows the focusing method that suits the positions and number of the subjects to be selected. There are 6 different methods available, each suited for different scenarios.

Face/Eye Detection

A person’s face, eyes, and body (the entire body or the upper half of the body) are automatically detected

When the Lumix GX8 detects a person’s face or body, an AF area is displayed over the detected person.

  • Yellow: This is the AF area for the person to be brought into focus. The camera automatically selects the person.
  • White: These are the AF areas for people other than the person to be brought into focus. This type of AF area is displayed when more than one person is detected

When a person’s face or eyes are detected, the eye closer to the camera will be brought into focus, if the eyes are inside the yellow frame.

The camera can detect the faces of up to 15 people. To specify the person or eye to be brought into focus, align an AF area with the desired person or eye. You can do so easily by touching a person indicated with an AF area.

Tracking

The Lumix GX8 keeps adjusting the focus and exposure automatically to the specified moving object. Perform either of the following operations to lock the subject to be tracked:

  • Use a button: aim the AF tracking frame D over the subject, and press the shutter button halfway.
  • Use the touch screen: touch the subject on the screen

If it fails to lock, AF area will flash in red, and disappear.

The AF area turns yellow while the subject is locked and green while the shutter button is pressed halfway. Press the Menu button to cancel the lock.

49 Area

Widest setting with all AF points used.  Up to 49 AF areas can be focused. This is effective when your subject is not in the center of the screen.

Custom Multi

From among 48 AF areas, you can freely set the optimum shape of the AF area for the subject.

1-Area

The camera focuses on the subject in the AF area on the screen.

Pinpoint

You can achieve a more precise focus on a point that is smaller than 1-Area. If you press the shutter button halfway, the screen that lets you check the focus by enlarging it.

G9 Q Menu Burst shot settings

Burst Shot Setting

You can choose your bust shot setting here for continuous drive mode.

Burst shooting means that you’ll shoot continuously when you press the shutter button. You can apply different Burst Mode settings to Burst Shot 1 and and Burst Shot 2 Setting in these menus.

You’ll see SH (for super high burst rates), SH pre (which actually goes back a few seconds in time and saves these images too). These SH modes are only available with the electronic shutter. Version 2 is always faster that version 1.

Then we have High, Medium and Low which work with the Mechanical shutter too. The actual burst rate will be higher if you shoot Jpeg only.

G9 Q Menu metering modes

Metering Mode

You can change how the light is metered here, and hence how a correct exposure is calculated by the Lumix GX8. If you feel that the camera takes over- or underexposed images according to your personal preferences, it might be worth changing the metering mode.

Implementation of this is quite basic in this camera, you have a total of only 3 methods to choose from:

  • Multiple: This is the method in which the camera measures the most suitable exposure by judging the allocation of brightness on the whole screen automatically.
  • Center weighted: This is the method used to focus on the subject on the center of the screen and measure the whole screen evenly.
  • Spot: This is the method to measure the subject in the spot metering target.

G9 Q Menu exposure compensation

Exposure Comp

If you feel like your Lumix GX8 is over- or underexposing your images (or you want to purposely underexpose), you can dial in what is called exposure compensation here. A range of plus minus 5 is available here to correct the auto exposure of the camera.

G9 Q Menu ISO settings

ISO sensitivity

Sets the upper and lower limits of the ISO sensitivity when you use Auto ISO or i ISO. Lower Limit should be set to 200 and upper limit to 3200, this is the range where you’ll get usable images without too much noise.

Conclusion

So this was a quick run-though of all the Panasonic GX8 Menu items, with pointers, tips and tricks along the way. This information should get you familiarised with this fantastic mirrorless camera. If you would like any clarification or extra information on any functionality here, let me know through the comment section below. Happy shooting!

Bookmark and Share
